Description
Hot sale

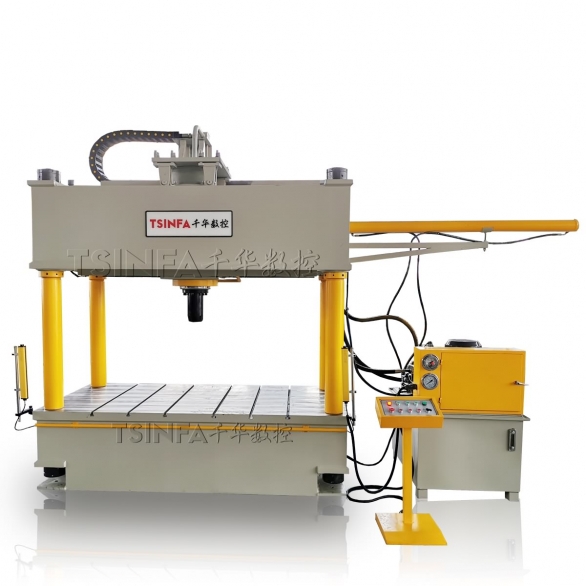

Model: TPS-2-200 Ton
- 4 post hydraulic press,
- The master cylinder can move left and right
- Electric control
- 2 beams
Need a quote? Give us a call at +86-15318444939, and talk to one of our expert reps.You can also fill out our : contact form
WE CAN CUSTOMIZE ACCORDING TO YOUR NEEDS, CONTACT US FOR SOLUTION AND QUOTATION
Specifications | Units | TPS-2-200 Ton |
Capacity | KN | 2000 |
Max. liquid pressure | MPa | 25 |
Distance of master cylinder moving left and right | mm | 1750 |
Speed of master cylinder moving left and right | mm/s | <100 |
Slide travel | mm | 700 |
Max. opening height | mm | 1000 |
Effective area of table (front and rear) | mm | 1200 |
Effective area of table (left and right ) | mm | 2200 |
Slide downward speed | mm/s | 21 |
Slide pressing speed | mm/s | 8.5 |
Slide return speed | mm/s | 85 |
Main motor power | KW | 11 |
Variable axial piston pump | ml | 63YCY |
Distance between the table and the ground | mm | 600 |
Machine dimensions | mm | 2620×1200 x3000 |
