Everything You Should Know About Long Bed CNC Lathes
In modern manufacturing, CNC lathes are known for their accurate and precise machining functions promote workflow. Amongst the types of CNC lathes is the long bed CNC lathe.
The article provides complete information about the features together with practical applications of this machine.

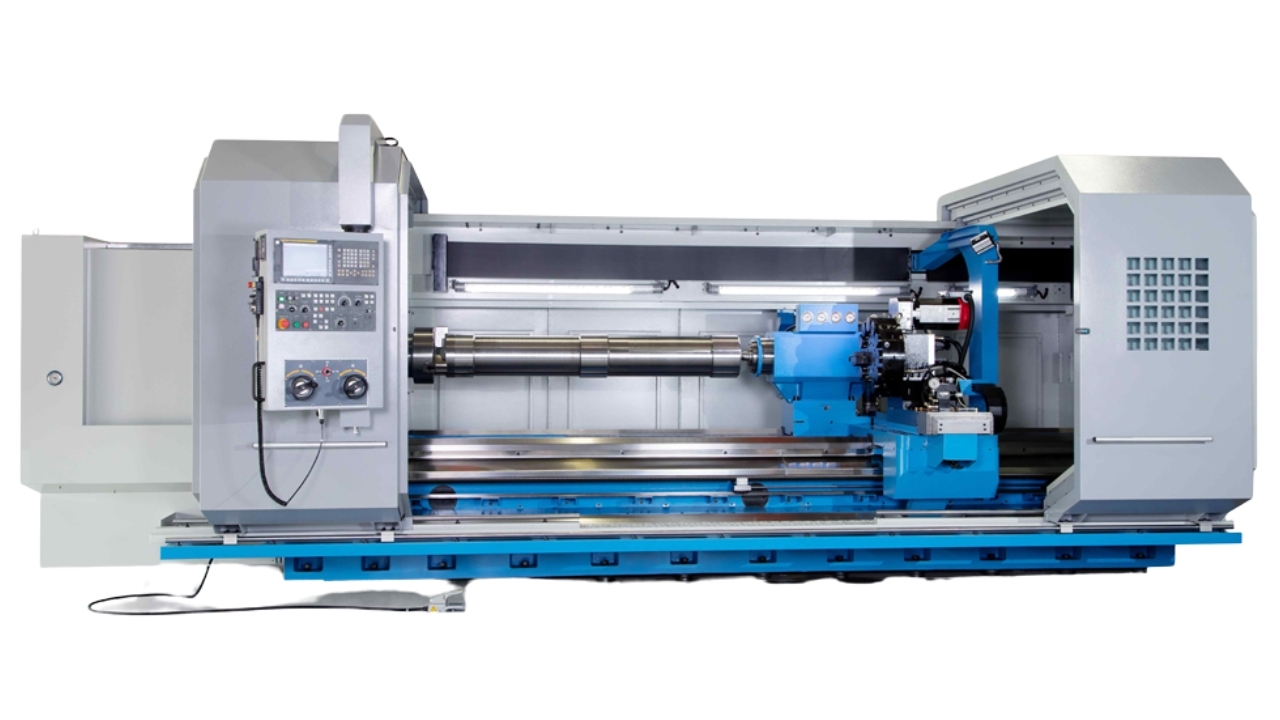

What is a Long Bed CNC Lathe?
A long bed CNC lathe is a type of CNC lathe machine that is robust for machining longer parts. These machines have extended bed lengths between 2 to 3 meters to accommodate long workpieces. These machines deliver notable cutting capabilities while maintaining a minimal physical size.
The main function of these machine tools consists of rotating materials to perform shaping and cutting processes. The machine performs every task automatically while achieving maximum operational efficiency to improve your production workflow.
These tools remain essential because of their capability to handle significant industrial machining operations. For example, they are useful in heavy machining, oil and gas, and shipbuilding.

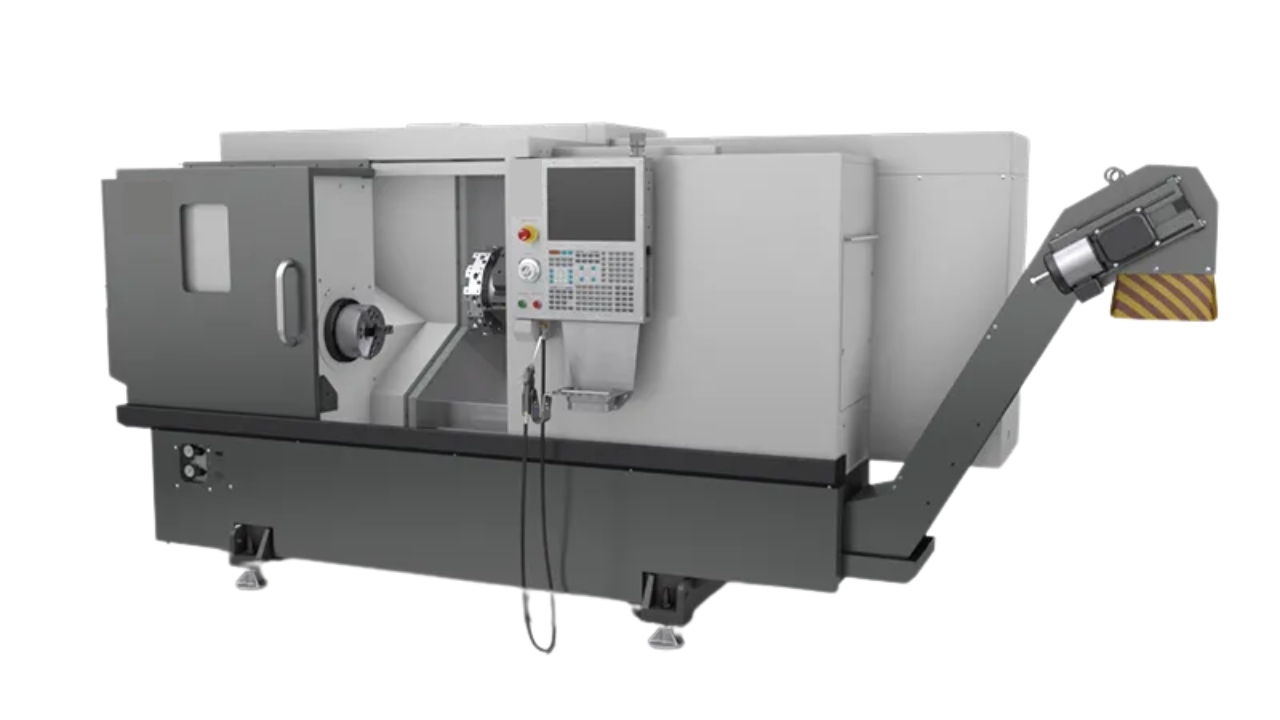

Major Features of Long Bed Lathes
Longer Bed Length
These machines surpass conventional CNC machines with its expansive bed extension appropriate for heavy material. The bed is generally found between the chuck and tailstock, and it carries the material it is to process. Its length is generally larger than 2 meters.
The bed length is usually designed with respect to the headstock and tailstock distance. This factor is crucial as a greater bed length will facilitate the machine to work with long materials with less effort.
Spindle Motor
The spindle is the part of the lathe machine that rotates the workpiece and keeps it in position so that it can be aligned with the bed. The spindle motor offers strong torque functionality to cut through hard materials.
It is what determines the cutting performance and ability of the machine. You can measure the reading in watts (W) or horsepower (HP). The spindle motor power can be 100W to 10,000W or higher, depending on the model and lathe type.
This feature is an integral component because it determines the maximum power output of the motor of the machine.
Automation
Machine operations are automated in an effort to remove human involvement to a large degree and at the same time restrict human errors. It is programmable and touchscreen for added efficiency and ease of use.
The incorporation of digital readouts (DROs) in these machines has made them more accurate and gives duplicated results effectively. Some have included automated tool changers so that you will not delay in exchanging different tools while in use.
There are certain extended bed CNC machines that utilize an automated coolant system to prevent overheating and extend the life of the machine. They also have a chip evacuation system to get rid of waste. The automated systems help to boost productivity as well as maintain quality machining processes.
Tailstock Support
Tailstock is there to hold a tight grip on the workpiece. This is for avoiding deflection and vibration. It also helps to keep things stable so that your material doesn’t fall off or shift from its place.
Tooling Versatility
A long bed CNC lathe contains a wide surface where many kinds of cutting tools can fit. If you want to turn, thread, drill, or groove material, you have an effortless means of doing that with this tool. You simply need to send it to the bed and allow it to give it a silky feel.
With this feature, you don’t need a separate machine to perform cutting operations since you can buy all of them in one.

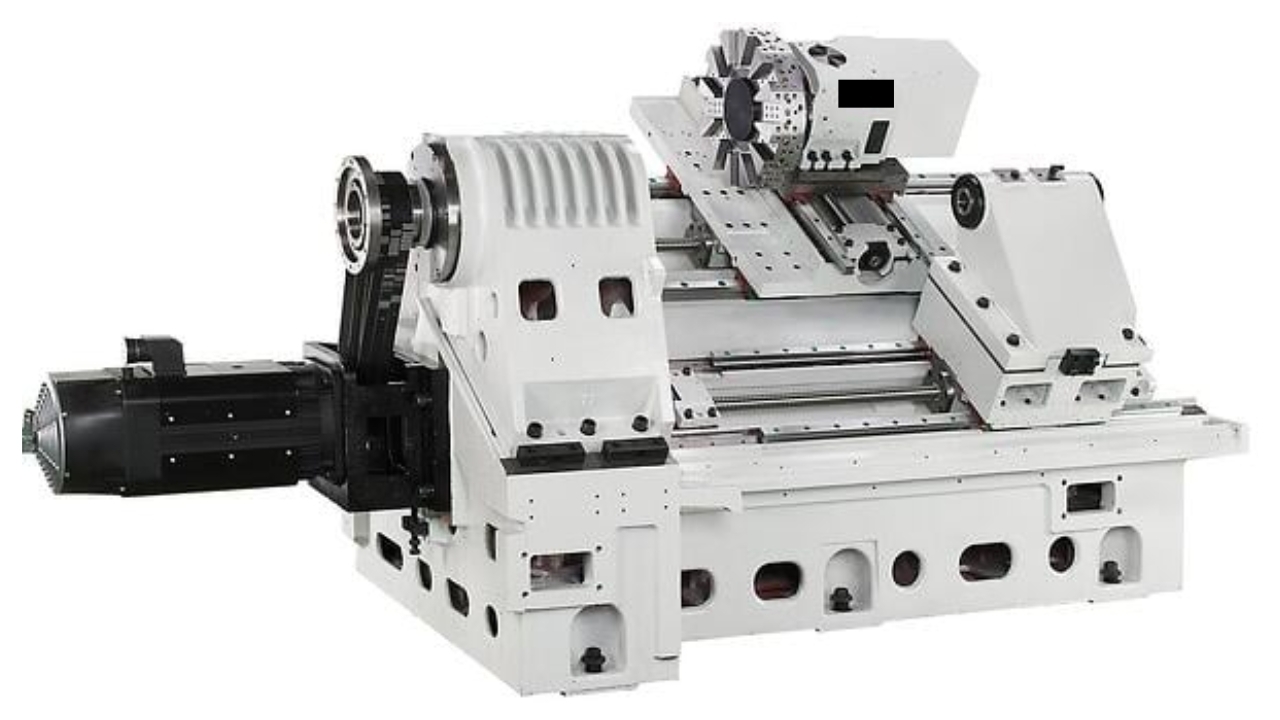

Advantages of Long Bed
Cost-Effective
The machine is cost-effective in so many ways. The process is automatic, which means it requires fewer inputs of human beings and therefore less labor cost. By reducing manual labor, there is no room for human error that could have cost you an arm and a leg if it happened.
Versatility of the machine tooling spares you from the cost of purchasing a separate machine for cutting operations. It also spares you from the need to create multiple setups as you can cut, drill, and groove using it.
Accuracy and Precision
The computer numerical control (CNC) technology evolved in the machine offers high precision and accuracy. These types of machines deliver consistent results during the processing of intricate part designs.
The removal of human intervention also makes it able to work flawlessly with no flaw, providing you with a surface finish.
Enhanced Capacity
The longer bed length of the machine makes it able to work on more parts than a typical lathe. Thus, less material wastage and increased productivity.
Enhanced Tool Life
The machine has a high-capacity chip evacuation system to remove trash from the material. The advanced cooling system prevents thermal overloads that extends the operating time of the machine.

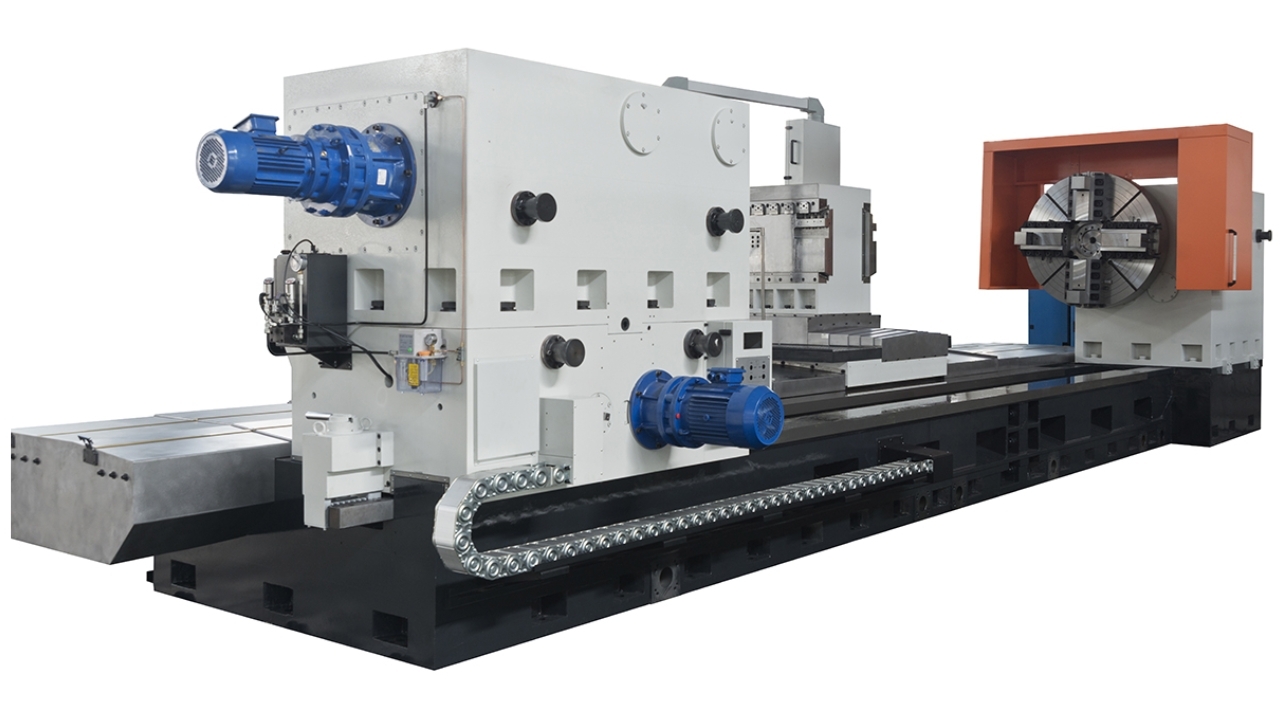

Applications of Long Bed CNC Lathes
Automotive and Aerospace
Long bed CNC lathes serve critical functions for producing components which satisfy requirements for automotive as well as aerospace applications. The manufacturing process creates valves and flanges together with other intricate components needed for operational purposes.
They are also used to produce durable railway components such as wheels and axles.
Workshops
These machines are used in workshops for educational purposes by researchers and apprentices. They are also used to make replacement parts and other highly specialized components according to the specifications of your client.
Marine and Oil & Gas Industry
In the marine industry, they are used to produce propeller shafts and other ship components. The machines are used in the oil and gas industry to machine pipes, casings, and long shafts. They are also used to produce couplings and drilling tools.
Heavy Machinery
They are used to create cylinders and other large machine components. You can use them in large-scale production for the same consistent results.

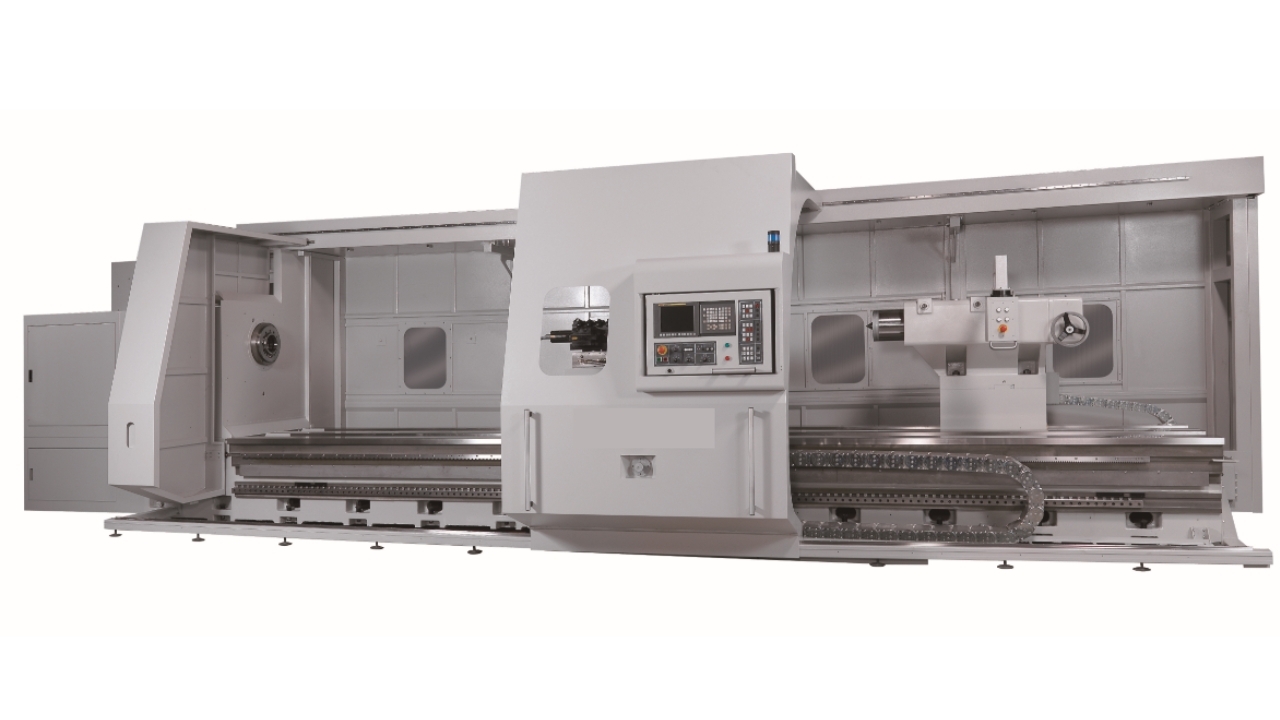

Conclusion
Long bed CNC lathes operate as fundamental equipment for manufacturing accurate and precise workpieces. The technical capabilities achieve maximum output efficiency while lowering expenses. You should invest in these for your heavy industrial and demanding applications.
