Flat Bed CNC Lathe: A Machinist’s Guide for Industrial Applications
The flat bed CNC lathe is a precise and fundamental tool for shaping metals. The CNC control systems enable this machine to function as an essential power source for machining operations.
We will dive into the technical aspects along with advantages of this lathe machine.

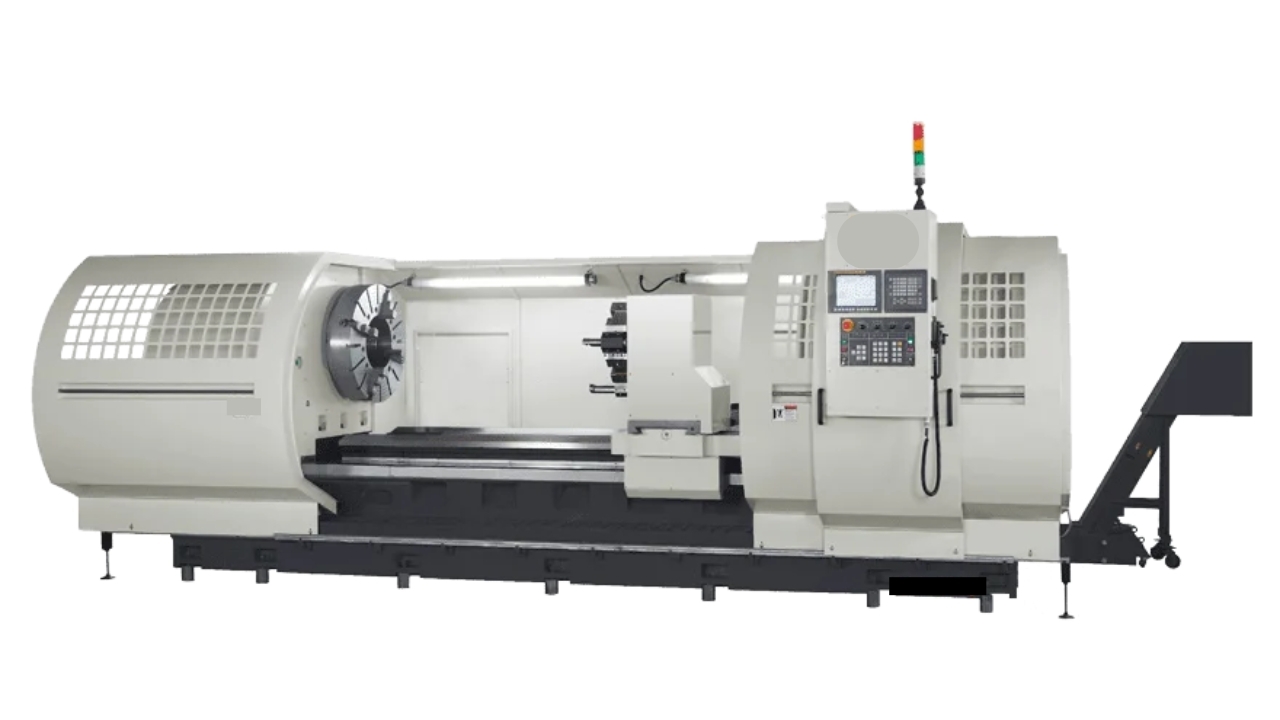

What is Flat Bed CNC Lathe?

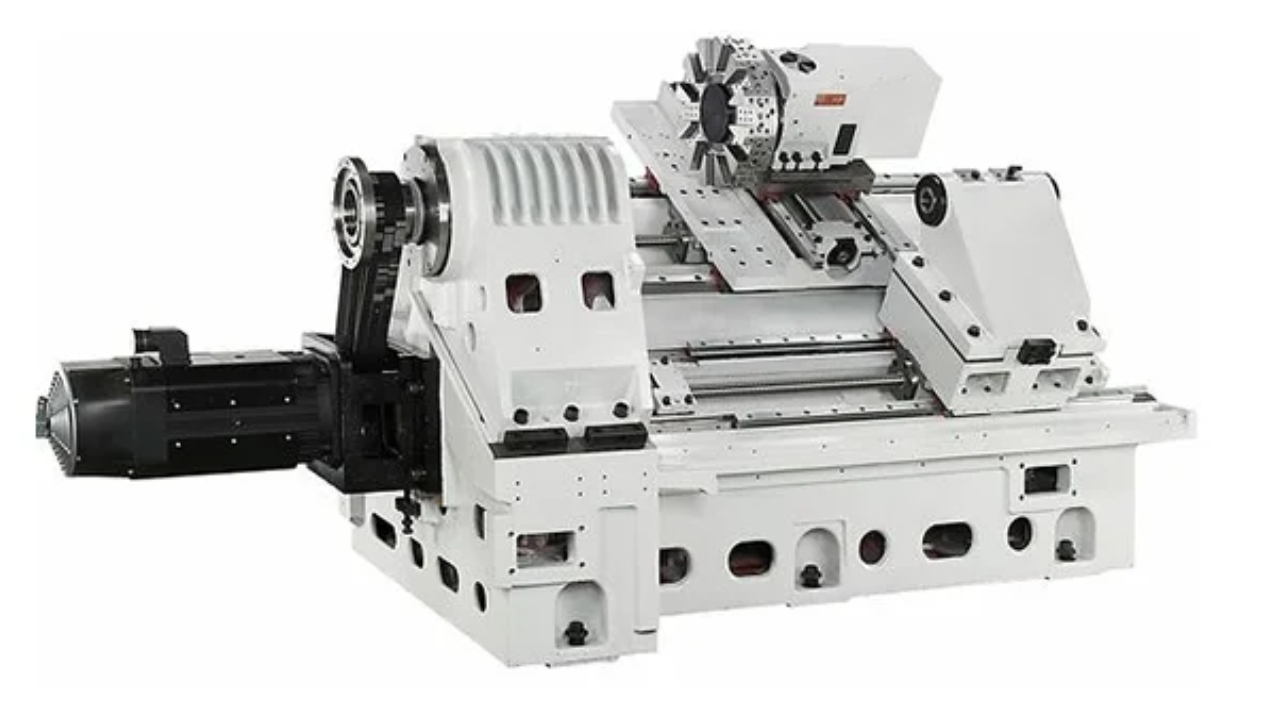

A flat bed CNC lathe functions as a specialized equipment for creating accurate shapes in metal parts. Unlike the slant bed, these lathe machines are ideal for larger and complex parts. Its bed moves in a horizontal way along the X and Z axes. As a result, it can handle a variety of materials.
The machines use computer numeric control (CNC) systems for automated machining functions. Thus, they effectively perform turning, drilling, threading, and boring.
The construction of these machines involves high-grade cast iron alongside rigid steel fabrications which make them resistant to heavy machinery forces. Their flexibility allows them to benefit industries including oil and gas, and automotive as well as aerospace.

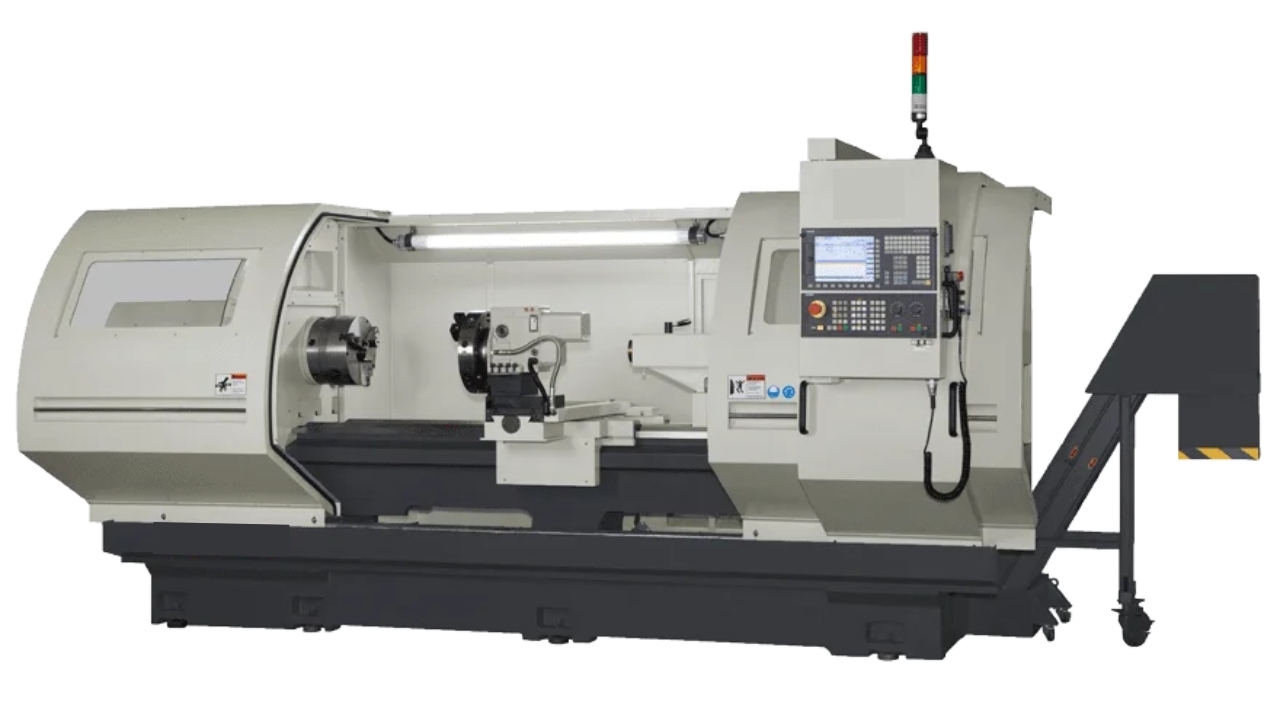

Technical Specifications of a Flat Bed CNC Lathe
Horizontal Bed Configuration
The lathe machine is designed with a flat, horizontal bed made from iron or steel. The designed configuration gives both stability and strength to maintain precise operation.
Unlike the slant beds which you may find it hard to load parts into, the flat bed is easy for the setup of components. Tailstocks work together with these lathes to maintain stability of materials during operations.
Versatile Tooling Systems
Flat bed lathe machines have multiple tooling setup, depending on the nature of your work. You can use manual 4-way toolpost for simpler operations, and servo-driven turrets (8 or 12 station) for automatic tool indexing.
The turrets ensure strength and rigidity through the tool. They also offer swift indexing and strong coolant delivery through the tool holders. These different tooling systems combine their capabilities to fulfill various specifications.
CNC Tailstock
The tailstock is vital for supporting long parts. It automatically positions along the bed to hold the workpiece during operation. It is retracted automatically during device changes. Proper alignment of the tailstock ensures consistency.
Superior Structural Integrity
The machine bed offers support during work operations. Furthermore, its efficient chip evacuation system ensures that your machine lasts for a long time.This setup reduces machine vibrations while simultaneously protecting machine components for better overall performance.

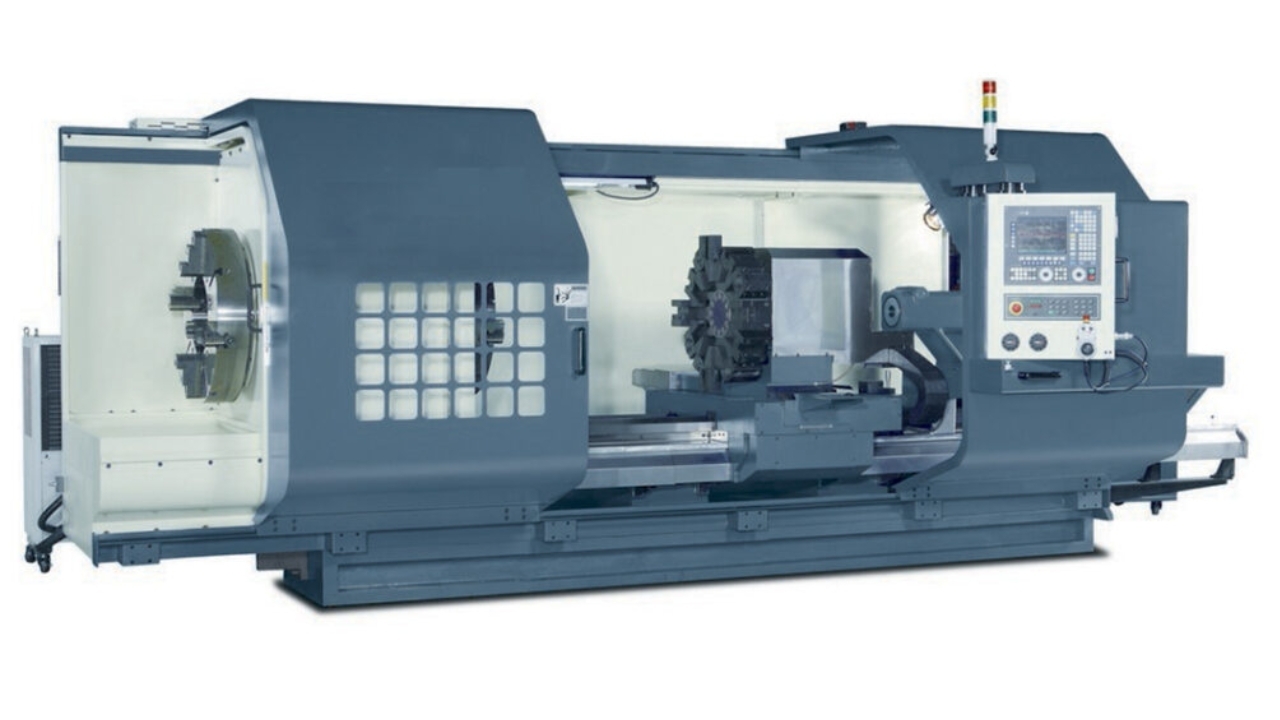

Benefits of Flat Bed CNC on High Precision Machining
High Stability
The heavy construction design of these machines provides strong operational stability. As a result, vibrations are minmal. The machine rigidity makes them suitable for long parts. They can deliver a great range of productivity for larger workpieces.
High Torque
The high torque spindle motors of the CNC lathes guarantees efficiency in the machining of larger parts. Thus, they can be used on heavy-duty applications. For example, they can be empoyed in the machining of alloy steels or super alloys.
Thermal Stability
Machines are bound to heat up during operation and overheating can cause damage in the long run. Flat bed CNC lathes have coolant systems to regulate temperature. This ensures minimal errors due to temperature fluctuations.
Accuracy
These machines deliver exceptional accuracy which boosts their efficiency in operations. These lathes provide you with superior craftsmanship for the production of automated parts and other tailored products.
These lathes yield outstanding quality tolerances during their machining process of hard materials. The machines operate at extended periods but maintain exact production standards and high quality.
Affordable
Unlike slant bed CNC lathes, which are expensive due to their sophisticated features, flat bed lathes are budget-friendly. Thus, if you’re on a budget, you can buy these machines and still get good results.
At Tsinfa, we produce high-quality lathe machines that are affordable while meeting the highest standards.

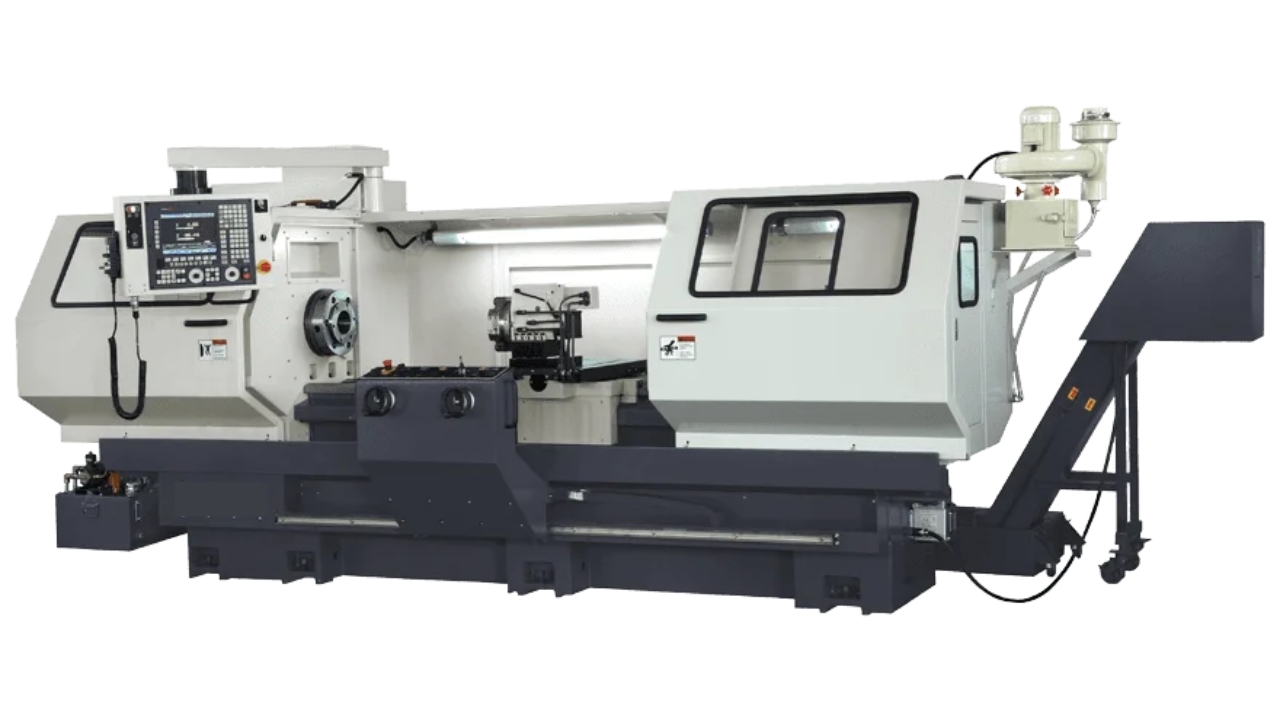

Key Applications in Industries
Heavy-Duty Machining
These machines deliver excellent performance in heavy-duty applications. For example, it enables the production of automotive pieces together with aerospace components.
Their high-precision is also crucial for making propeller shafts and turbine components in the marine industry. Cylinders, hubs and valve bodies are high-precision parts that are made with these lathes.
The railway industry use them for turning locomotive axles and for repairing legacy components.
General Metalworking
These machines provide multiple machining capabilities while maintaining unaltered product quality. They are applied in the production of complex parts that can be customized according to your needs.
Power Generation
Hydroelectric components need to be structured for durability and efficiency – areas that flat bed lathes cover. Their design and precision make them suitable for producing bearing housings and rotors.
Oil and Gas
Within the oil and gas sector, these lathe machines enable the production of threaded connections for large pipe sections and couplings. The machines are also used to produce valve bodies and drill collars.

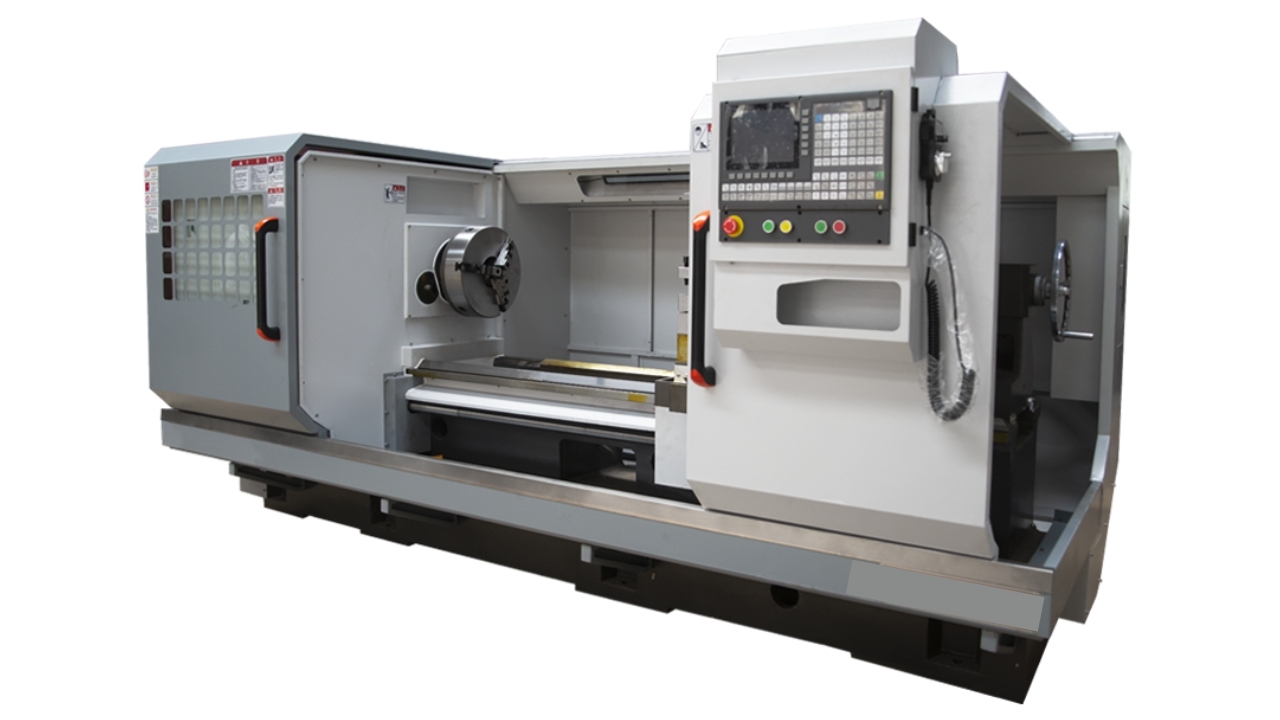

Conclusion
Flat bed CNC lathes are resourceful for promoting efficiency in the workplace. You can reach precise results when utilizing them to process large components. Verify supplier details together with your budget when deciding to buy.
Choose Tsinfa – a reliable machine supplier and gain access to high-quality lathes at affordable price.
