What is 2 Axis CNC Lathe & How does it Work?
2-Axis CNC lathe gives you the ability of turning, facing, boring and threading with X and Z axis movements.
Being efficient, it is also accurate and suitable for part production of cylindrical shape.
In this article, we will explore some fundamental aspects of this unique type of CNC machine.
What is a 2 Axis CNC Lathe Machine?

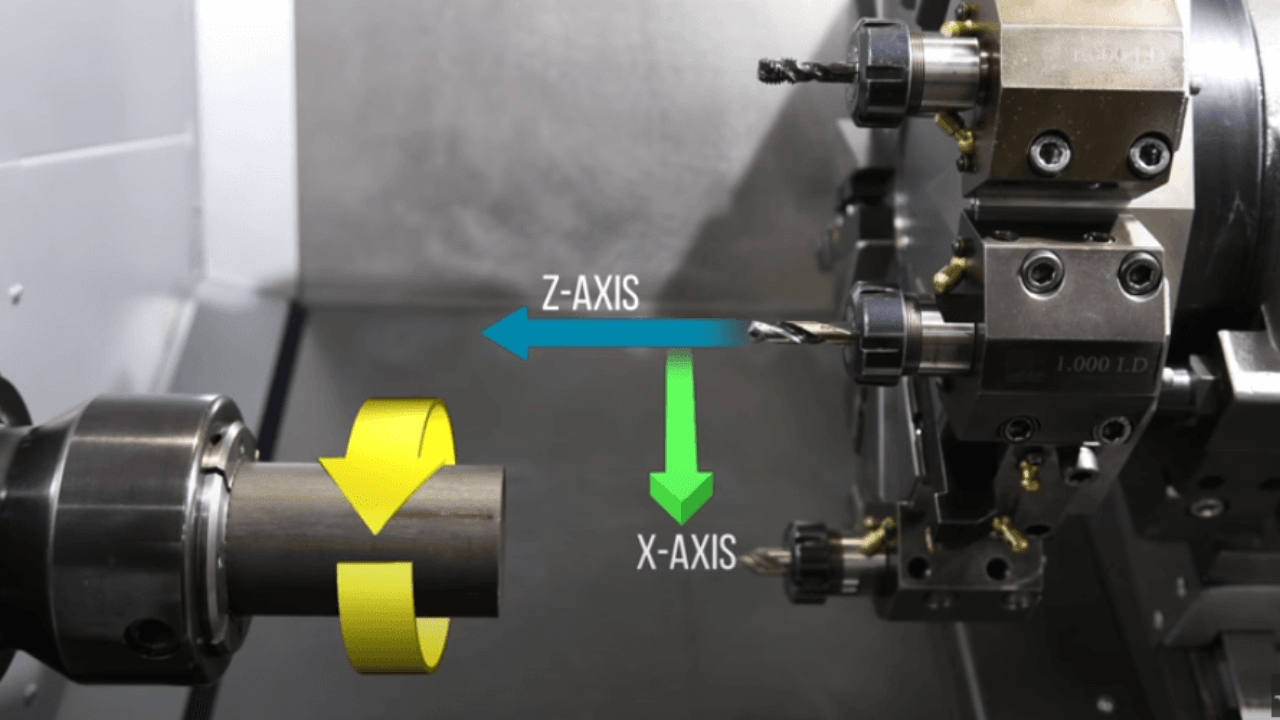

The 2-Axis CNC lathe machine enables you to undertake precision turning operations through 2 controlled movements, the X axis & Z axis. The machine moves the cutting tool perpendicularly through the X axis and along the spindle’s axis through the Z axis. Using this machine, you make cylindrical products with high accuracy or facing, threading, and boring them.
The automation of its control ensures consistency and reduces manual effort, thereby increasing production efficiency. It is good at simple machining tasks but does not have extra axes for milling or complex geometries. For cost effective, high speed machining of shafts, rods and other symmetrical parts, you rely on a 2 axis CNC lathe.
Advantages of 2-axis CNC Machining
Precision and Consistency
A 2 axis CNC lathe gives you high accuracy and repeatability. Automated controls mean that each part is exactly to specification without the errors that come with a human. This precision is necessary to produce on a mass scale, to mitigate defects and maintain quality between batches.
The metering of material also contributes to efficient fabrication, resulting in less material waste and reduced time and cost.
Efficiency and Speed
Automated tool movements make you faster at completing machining tasks. This 2 axis system offers less than a complete 2 total axes, no repetitive manual readjustments; turning, facing, and boring. You reduce setup time and increase cutting speed, improving production rate.
This efficiency enables you to meet deadlines and achieve consistent quality in large scale manufacturing processes.
Cost-Effectiveness
It lowers your production cost by using a simpler machine with fewer parts. The 2 axis CNC lathe occupies less space, requires less power, and is less difficult to maintain than multi axis alternatives. This means less labor and setup time, and provides great results, all for a lower price making it ideal for those on a budget.
Ease of Programming
It simplifies the CNC programming with only two axes to control. A 2-axis lathe is a quicker setup, and operation, than multi axis machines, that need complex coding. The ease of use reduces the learning curve for operators and you can start machining quicker and boost your overall productivity in your workshop.
Working of 2-axis CNC Lathe Explained
You clamp the workpiece tightly in the chuck. The workpiece is held and rotated at a programmed speed by the spindle. Accuracy of machining and minimizing runout to machining depends upon proper alignment.
You then input the machining instructions into the CNC controller. Tool paths, spindle speed, feed rate and cutting depths are defined by the program. With G-code, specifying how the tool moves on X axis and Z axis for precise material removal.
At the programmed speed, the spindle is set rotating. The rotational motion in this cutting path allows the cutting tool to shape the workpiece by removing excess material as it moves in the prescribed direction.
You control the movement of the tool along X axis that is parallel to the spindle. This axis allows for the determining of cutting depth and in turn allows face, turn, and groove operations via tool position radially.
The Z axis is perpendicular to the spindle and the cutting tool moves along it. This movement allows you to control the tool’s lengthwise motion, for operations such as cylindrical turning, threading, and boring.
The cutting tool is positioned by such a turret or tool post which in turn rotates according to the process machine. On CNC systems, you automate this process to reduce downtime and increase efficiency.
During use, you monitor tool wear, feed rate, and cutting depth, as the tool moves in X and Z directions. The CNC automation assures smooth operation, but you fine tune accordingly as needed for precision.
After machining has been finished, you stop the spindle and retract the tool. Then you unclamp and remove the completed workpiece. The CNC lathe cleans itself and is ready for the next operation.
Machining Capabilities
· Turning and Facing
To reduce the diameter of a workpiece you use turning and you move the cutting tool along the Z-axis. If facing is selected, then material is removed from the end by moving the tool along the X axis. The creation of these smooth precise surfaces are necessary to form cylindrical parts that have constantly dimensioned products.
· Boring and Grooving
To enlarge an existing hole, you move the tool along the Z-axis and do boring. Grooving creates the recess or channel on the workpiece’s surface. Both processes need to control X and Z axes with specific depth, width to create bearing seats or sealing grooves.
· Thread Cutting
Moving the tool along the Z axis in unison with the spindle rotation allows you to cut threads. This process ensures a uniform thread pitch and depth. CNC control allows you to do precise, repetitive threading, whether for internal or external use, making it perfect for screws, bolts, and other threaded parts.

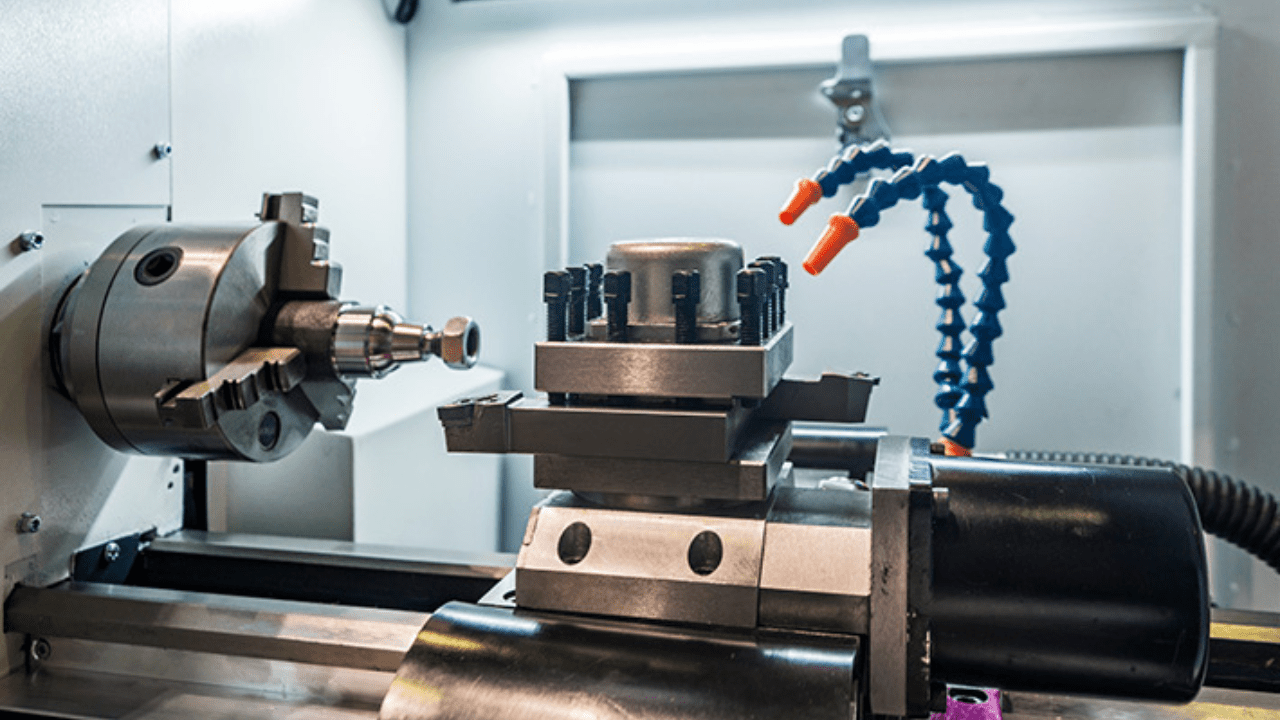

Applications of 2-axis Lathe Machine
· Shaft and Rod Manufacturing
With a 2 axis CNC lathe, you make shafts and rods that are precisely diametrically and finish wise. It guarantees standard for automotive, aerospace and industrial applications where rotating components demand high level of accuracy.
· Threaded Components Production
In your case, you send out bolts, screws, and threaded inserts from your place but it’s a manufactured article and you make use of precise threading operations. For mechanical fastening applications, the CNC lathe’s synchronized tool movement and spindle rotation ensures consistent thread pitch and depth.
· Bearing and Bushing Machining
For bearings and bushings, you create with such exact inner and outer diameters. These parts are made into boring operations, therefore providing a smooth, accurate fit, which makes them reliable for reducing friction in machinery.
· Pipe and Tube Processing
You cut face and thread pipes used in plumbing, oil and gas, construction. The CNC lathe enables you to achieve clean cuts and precise threads for secure fittings.
· Custom Metal and Plastic Parts
For a variety of industries, including robotics, electronics, and medicine, you manufacture unique cylindrical parts. Both small and large-scale production can benefit from the repeatable precision that the CNC lathe offers.
FAQs
1. What is the Average 2-axis CNC Lathe Price?
Prices range from $10,000 to $100,000, depending on size, brand, and features.
2. How does 2-axis and 3-axis CNC Lathe Machine Compare?
A 2-axis lathe handles basic turning, while a 3-axis lathe adds milling capabilities for complex machining.
3. What are the Limitations of 2-axis Turning Center CNC Lathe Machine?
Compared to multi-axis machines, it is less versatile due to its absence of Y-axis movement, which restricts milling and multidirectional cuts.
Conclusion
Using a 2-axis CNC lathe to machine cylindrical parts offers cost-effectiveness, efficiency, and precision. To turn, face, bore, and thread, you depend on its X and Z-axis movements. Its intricacy is limited, but its high-accuracy, high-speed manufacturing is excellent. Selecting a 2-axis CNC lathe guarantees consistent, dependable outcomes for a range of industries.
