Exploring the Basics of 3 Axis CNC Lathe in Machining
With a 3-axis CNC lathe you can control X, Y, and Z movements for increased precision machining.
In one setup you perform turning, milling and drilling, and with less repositioning, to ensure better production efficiency when making complex parts.
Today, we will explore all the fundamental aspects about 3-axis CNC lathe machine:

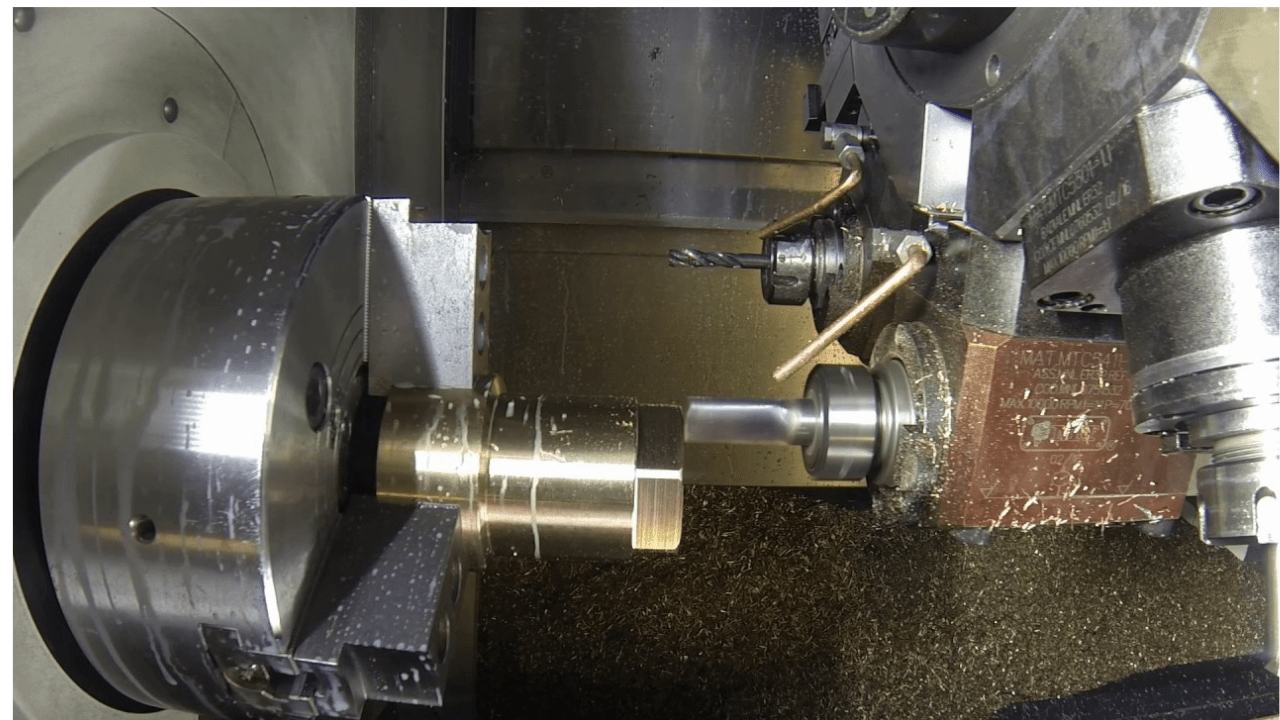

What is a 3 Axis CNC Lathe?
With a 3 axis CNC lathe you can machine complex parts by moving in the X, Y and Z axes. The tool can be moved radially along the X axis, along the spindle and up vertically, on the Z axis, and up and down vertically in addition to milling and drilling, on the Y axis.
This machine is used for turning, threading, boring and light milling, in one setup, which improves precision and speed. It is faster than being a 2 axis lathe because once it is in position you don’t need to re position the machine over and over again.
A 3-axis CNC lathe is crucial for aerospace, auto, custom part production where multi directional cutting is required.

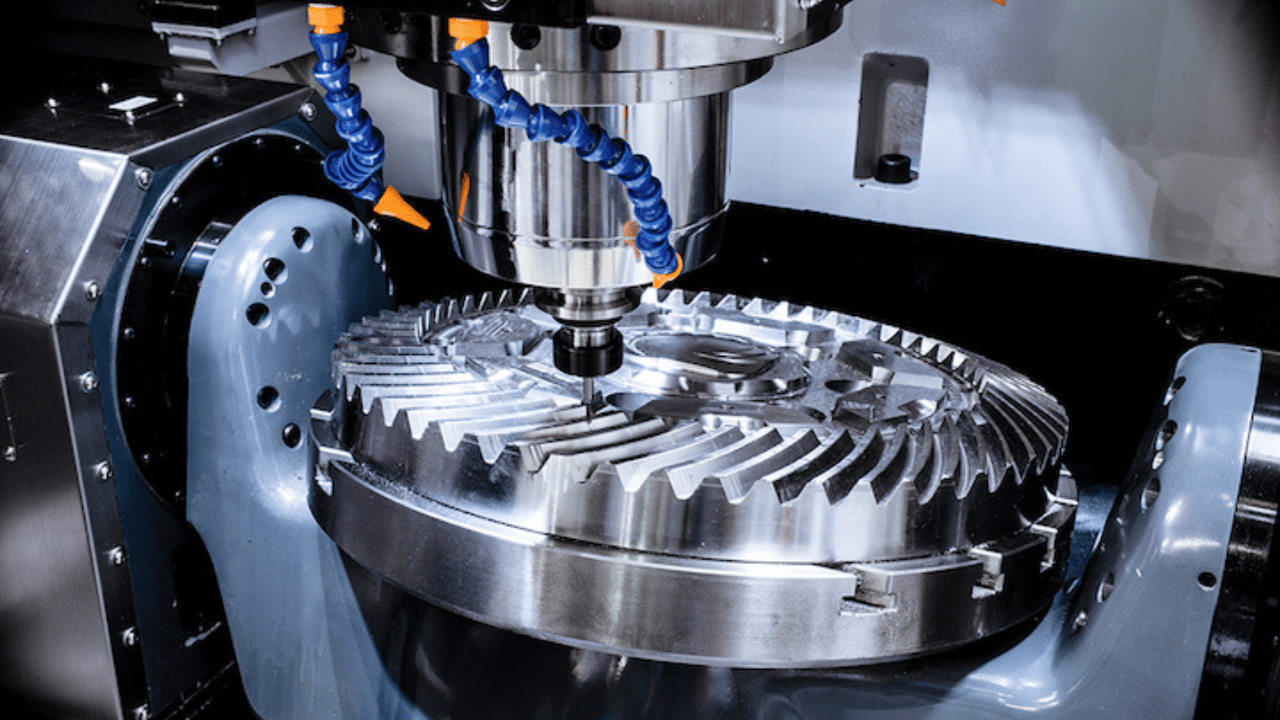

Axis Movements and Control
· X-Axis (Radial Movement of the Tool)
The cutting tool is able to move in the perpendicular direction to the workpiece’s rotation using the X axis. The radial movement, in turn, determines the cutting depth, and is used for turning and facing operations.
By precisely adjusting the X axis, you get accurate diameters and smooth surface finishes. This axis guarantees that the cuts are always radial, whether reducing material or creating grooves.
· Z-Axis (Longitudinal Movement Along the Spindle)
The Z axis is used to move the tool in the direction parallel to the spindle, so that you can control the workpiece length. It is this movement that is needed to turn, thread, and bore operations. You can exert precise control over the Z axis and make uniform cuts along the workpiece’s length, which ensure proper dimensions and nice transitions.
· Y-Axis (Vertical Movement for Complex Machining)
The Y axis offers additional vertical tool movement to allow machining off center, mills, and drills. With this feature, you can do more which cannot be achieved from a conventional technique in turning. You cut multiple ways in one setup and take away having to reposition.
Y axis control makes the handling of intricate geometries and features such as keyways, slots or off centre holes easy.
Machining Capabilities
Turning and Facing
Turning is one of those that reduces work piece diameter using a moving Z axis. Moving along X axis removes material of the end surface. They give you the ability to make precise cylindrical shapes as well as smooth finishes. By using CNC control, you get repeatability and consistent dimensional control in production.
Boring and Grooving
In boring the tool moves along the Z axis enlarging preexisting holes, whereas grooving forms recesses or channels. These operations depend on you to help part functionality, such as creating slots for seals or tiny holes for assembly. Uniform depth and width for tight tolerance is achieved through CNC precision.
Thread Cutting
To control thread spacing and depth, you cut threads by synchronizing tool movement with spindle rotation. Screws, bolts, and pipe fittings must be threaded either internally or externally. CNC automation is useful for manufacturing threads with high precision and repeatability, reducing error in the manufacturing process.
Milling and Drilling (with Y-Axis support)
You use Y-axis movement to drill holes and mill complex features off the centerline. This expands your machining capabilities by enabling the generation of slots, keyways, and side holes without moving the workpiece. Overall production time is reduced, and you achieve higher efficiency and precision with one setup.
Advantages of a 3-Axis CNC Machining on Lathe
· Increased Machining Versatility
CNC machining in multiple directions makes you able to handle more complex parts. Milling, drilling, and off center cutting are allowed on the Y axis, which removes limitations that standard lathes have. This versatility lets you complete intricate designs without additional machines, making production more flexible.
· Higher Precision and Efficiency
With automated control over all three axes you maintain precise, repeatable results. The CNC system eliminates human error in tooling. Besides optimizing cutting speeds and feed rate, it minimizes material waste and maximizes the surface finish to produce high quality parts.
· Reduced Need for Multiple Setups
You set up multiple machining operations, minimizing repositioning. This helps reduce downtime and also increase productivity. Machining complex features without moving the workpiece eliminates errors like those caused by hand polishing and saves valuable time and labor costs.
Limitations of a 3-Axis CNC Lathe
· More Complex Programming
To fully control all three axes you have to write more advance CNC programs. The coding and software proficiency needed to effectively manage tool paths for drilling, milling, and turning are precise. The complexity adds to the setup time and it takes skilled operators which makes training necessary for efficient machine operation.
· Higher Initial Cost Compared to 2-Axis Lathes
A 3 axis CNC lathe is more expensive because of all the advanced features, additional components, and automation being added into it. It increases versatility and productivity, but higher price may not be worth paying for simpler machining jobs, particularly for small scale and limited budget operations.
Applications of a 3-Axis CNC Lathe
· Aerospace and Automotive Part Production
You make high precision components such as engine parts, shafts and housings. With the 3 axis CNC lathe you can reproduce complex geometry with tight tolerances for use in precise aerospace and automotive applications.
· Custom Metal and Plastic Machining
Specialized parts are produced for use in medical, electronics and industrial applications. You can precisely machine intricate designs from the same range of materials to get consistency and quality metal and plastic components.
· Threaded and Grooved Component Manufacturing
You make screws, bolts and grooved fittings with precise threading and recesses. The CNC lathe can control thread pitch and groove depth accurately, so it is perfect for fasteners, pipe fittings and mechanical assemblies with a high degree of accuracy.
FAQs
What is the difference between 3 and 5-Axis CNC Lathe?
In a 3 axis lathe with turning, milling, and drilling functionality, you control three linear movements in x, y, and z directions. The 5 axis lathe allows you to do more complex cuts, undercuts, and multi sided machining in one setup. Thus allowing you to save repositioning and improve efficiency.
How does 3-Axis and 2-Axis CNC Lathe Compare?
A 3 axis lathe offers you more machining flexibility than a single axis one since it adds Y axis movement for milling and drilling. A 2 axis lathe only controls X and Z movements, so all you can do is turn, bore, and thread. The 3 axis model reduces setup time and can accommodate more complicated part machining.
Conclusion
By providing multi-directional machining, a 3 axis CNC lathe increases efficiency, precision and versatility. It helps you reduce setups, increase accuracy and add capabilities ideal for high volume, complex part production across several industries.
