Vertical milling machine for sale, image, specification:
CNC Vertical Milling Machine TVK736
Table size（mm）:1250*360
Table travel: 900*360*450
Main motor (kw):4kw
CNC Vertical Milling Machine TVK850
Table size（mm）:1000*500
Table travel: 800*500*500
Main motor (kw): 7.5kw
CNC Vertical Milling Machine TVK855
Table size(mm): 1000*550
Table travel: 800*550*550
Main motor (kw): 7.5kw
CNC Vertical Milling Machine TVK1160
Table size(mm): 1200*600
Table travel: 1100*600*600
Main motor (kw): 11kw
Universal Vertical Milling Machine WN736
Table size（mm）:1500*360
Table travel: 900*320*450
Main motor (kw):4kw

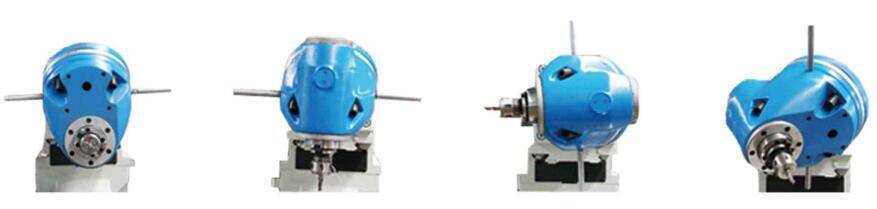

Swivel angle of milling head: ±360°
Universal Vertical Milling Machine WN736A
Table size(mm): 1600*360
Table travel: 900*300*390
Main motor (kw): 4kw
Swivel angle of milling head: ±360°
Universal Vertical Milling Machine WN736C
Table size(mm): 1600*320
Table travel:800*310*420
Main motor (kw): 7.5kw
Swivel angle of milling head: ±360°
Universal Vertical Milling Machine WN736D
Table size(mm): 2000*400
Table travel: 1200*315*385
Main motor (kw): 11kw
Swivel angle of milling head: ±360°
Universal Vertical Milling Machine XN26
Table size(mm): 1200*280
Table travel: 650*200*450
Main motor (kw): 2.2kw
Swivel angle of milling head: ±360°
Universal Vertical Milling Machine XN32
Table size(mm): 1500*320
Table travel: 800*300*450
Main motor (kw): 3kw
Swivel angle of milling head: ±360°
Vertical Turret Milling Machine 4v
Table size(mm): 1270*254
X/Y/Z table travel(mm): 780*390*450
Spindle taper: R8
Vertical Turret Milling Machine 5V
Table size(mm): 1370*305
X/Y/Z table travel(mm): 810*410*450
Spindle taper: NT40
Vertical Turret Milling Machine XTR36
Table size(mm): 1600*360
X/Y/Z table travel(mm): 900*300*350
Swivel head angle: ±45°
Spindle taper: NT40
Vertical Drilling Milling Machine ZX6350A
Table size(mm): 1200*280
X/Y/Z table travel(mm): 600*310*400
Spindle taper: MT.4
Vertical Drilling Milling Machine ZX6350C
Table size(mm): 1200*280
X/Y/Z table travel(mm): 600*310*400
Spindle taper: MT.4
Vertical Drilling Milling Machine ZX6350D
Table size(mm): 1200*280
X/Y/Z table travel(mm): 600*310*400
Spindle taper: MT.4
Vertical Drilling Milling Machine ZX7550C
Table size(mm): 1000*240
X/Y/Z table travel(mm): 500*230*350
Vertical Drilling Milling Machine ZX7550CW
Table size(mm): 1000*240
X/Y/Z table travel(mm): 500*230*350
Vertical Knee type Milling Machine V32
Table size(mm): 1320*320
X/Y/Z table travel(mm): 700*255*350
Spindle taper: ISO50
Vertical Knee type Milling Machine V40
Table size(mm): 1700*400
X/Y/Z table travel(mm): 900*315*385
Spindle taper: ISO50
What is vertical milling machine?
When the vertical milling machine processes the workpiece, the movement of the milling cutter and the workpiece cooperate, through milling tool rotation, and the workpiece moves forward, backward, left and right on the worktable to process the metal workpiece. With different cutting tools and accessories, it can carry out various types of machining, which is widely used in metal cutting.
Cylindrical milling cutter milling plane, end milling cutter milling step, keyway milling cutter milling keyway, T-groove milling cutter milling T-groove, dovetail groove milling cutter milling dovetail, gear milling cutter milling gear, thread milling cutter milling thread, spiral surface, curved surface and cavity.
The vertical milling machine has three axis, XYZ, also known as the three-axis milling machine. The left and right movement of the workbench is the X axis, the front and back movement is the Y axis, and the up and down movement is the Z axis, also known as the knee type milling machine. The movement of the worktable can be realized by the hand wheel. The worker manually rotates the hand wheel and drives the worktable to move through the lead screw and nut, the tool feeder can be installed to realize automatic feeding. If you want to display the moving distance of the workbench externally through the display table, you can install a digital display ruler to realize the digital display of displacement.
Usually, in order to realize the processing of special shapes, accessories need to be installed, such as dividing head. The workpiece is clamped with indexing head and tailstock, which can realize the linkage with the x-axis lead screw of the machine tool. Colleagues moving the workbench can rotate the workpiece to realize the processing of helix and cylinder.
