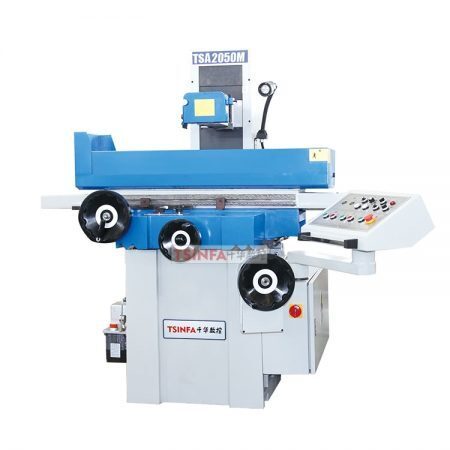

      Manual Surface Grinding Machine TSA2050

      On hover to room



      Supply Ability:      200 Set/Sets per Month
      Port:                       Qingdao/Shanghai

      DESCRIPTION

      Well-designed perfect symmetrical structure insure the machine is very suitable for precision grind.Saddle makes cross movement driven by AC motor,work table make reversing movement driven by dydrau,and spindle make elevationg movement and is driven by manual(M series),AC motor(R series),or AC servo motor(A series)

      Well-designed control panel with two-way rotate structure, make the operator getting suitable working position very easy, improve work efficiency.

      Double walled column construction, provide high rigid support to the grinding spindle.Closed steel guard is equipped for protecting spindle motor and guide way,which make the column safe and beautiful.

      Independent hydraulic station assembles with air cooling, running stably with small temperature rise, provide enough power for precision grinding.

      Safe and reliable electrical control, safety interlocking protection system, be designed according to CE low tension electric requirement.

      Guideway is coated with turcite after precision hand scraped, move smoothly and keep the accuracy and long life.

      1
      2
      3
      4
      5
      1

      Well-designed perfect symmetrical structure insure the machine is very suitable for precision grind.Saddle makes cross movement driven by AC motor,work table make reversing movement driven by dydrau,and spindle make elevationg movement and is driven by manual(M series),AC motor(R series),or AC servo motor(A series)

      2

      Well-designed control panel with two-way rotate structure, make the operator getting suitable working position very easy, improve work efficiency.

      3

      Double walled column construction, provide high rigid support to the grinding spindle.Closed steel guard is equipped for protecting spindle motor and guide way,which make the column safe and beautiful.

      4

      Safe and reliable electrical control, safety interlocking protection system, be designed according to CE low tension electric requirement.

      5

      Guideway is coated with turcite after precision hand scraped, move smoothly and keep the accuracy and long life.

      SPECIFICATIONS

       Model/Description Unit TSA-2050M TSA-2550M TSA-3063M
      TSA-2050R TSA-2550R TSA-3063R
      TSA-2050A TSA-2550A TSA-3063A
      Table size(w×L) mm 200×508 254×508 305×635
      Max. longitudinal travel mm 560 560 765
      Max. cross travel mm 240 275 340
      Max. distance from spindle center

      to table surface

      mm 450 450 580
      Magnetic chuck size mm 200×460 250×500 300×600
      Speed of table longitudinal movement m/min 7~23
      Table transverse movement intermittent feed mm/ stroke 0.1~8
      Rapid speed mm/min 990
      Feed of hand wheel mm/div. 0.02
      Wheel head vertical movement Auto down feed mm ―――(M/R mode)  0.005/0.01/0.02/

      0.03/0.04/0.05(Only for A model)

      Rapid speed mm/min ―――(M mode)  610(Only for R model)

      480(Only for A model)

      Feed of hand wheel mm/div. 0.005
      Grinding wheel Speed rpm 2850(50Hz)、3450(60Hz) 1450(50Hz)、1750(60Hz)
      Size  (OD×W×ID) mm 200×20×31.75 350×40×127
      Spindle Motor kW 2.2 4
      Hydraulic pump motor kW 0.75 2.2
      Cooling pump motor kW 0.04 0.125
      Elevating motor kW ―――(M mode) 0.25(R mode)

      0.5(A model, servo motor)

      Cross feed motor kW 0.04
      Max. loading capacity of table

      (include magnetic chuck)

      kg 180 180 270
      Floor space (L×W) cm 230×160 230×160 290×220
      Gross weight kg 1650 1800 2800
      Package dimensions (L×W×H) cm 200×210×215 200×210×215 235×222×221

      1.M mean: auto intermittent feed on transverse, hydraulic transmission on longitudinal, manual on vertical.
      2.R means: auto intermittent feed on transverse, hydraulic transmission on longitudinal, rapid movement on vertical.
      3.A means: auto intermittent feed on transverse, hydraulic transmission on longitudinal, PLC auto grinding controller and servo motor is equipped and with wheel head auto down feed

      ACCESSORIES

      Standard Accessories:
      Coolant tank
      Standard electro magnetic chuck
      Balancing arbor
      Wheel flange
      Wheel extractor
      Leveling wedge and bolt
      Tool box and tools
      Standard grinding wheel
      Working lamp
      Wheel dresser stand
      (not include diamond pen)
      Build in electro magnetic chuck controller
      PLC auto grinding controller (only for A models)

      Optional Accessories:
      Balancing stand
      Dust collector
      Coolant tank with magnetic separator
      Coolant tank with paper filter
      Coolant with magnetic separator and paper filter
      Parallel wheel dresser
      Luxurious magnetic chuck controler
      Universal dresser
      Radius & angle dresser
      Sine dresser
      Digital readout
