CNC MILLING MACHINE FOR SALE
HIGH PRECISION FOR METAL MACHING
HIGH PRECISION FOR METAL MACHING
Tsinfa is a professional supplier & manufacturer of CNC Milling machine in China. You can choice various brands of CNC system, GSK, FANUC, Siemens, Mitsubishi. 3 axis, 4 axis and 5 axis can be selected to expand the processing range.
Request a quote? You can also fill out our contact form. We will reply to you within 10 minutes during working hours, and 12 hours during non-working and keep your information strictly confidential.
VMC1160 CNC Milling Machine Application
VMC1160 CNC Milling Machine Features:
Tips for VMC1160 CNC Milling Machine Selection:

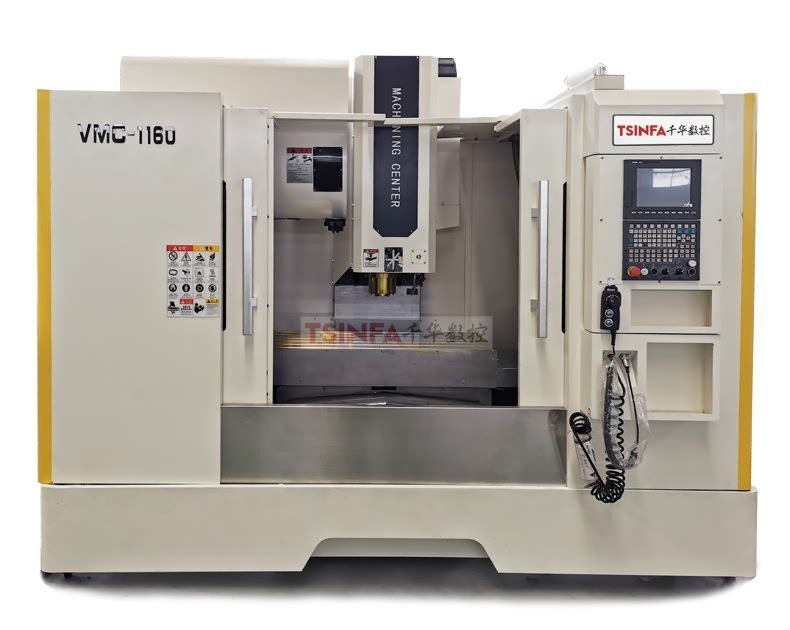

VMC1160 is medium-sized CNC machining center with high strength and precision,
Specification | Units | VMC1160 |
Table size | mm | 1200×600 |
T-solt(NO.×width×pitch) | mm | 5×18 |
Max. table load | kg | 600kg |
Guide rail type | X/Y/Z axis box way or linear Guideway | |
X/Y/Z axis travel | mm | 1100×600×600mm |
Distance from spindle nose to worktable | mm | 120-720mm |
Distance from spindle center to column | mm | 650mm |
Spindle taper | BT40 | |
Spindle speed | rpm | 8000 |
Spindle motor | kw | 11 |
X/Y/Z axis motor | nm | 18/18/27 |
X/Y/Z axis rapid feed speed | m/min | 36/36/36 |
linear guideway | ||
X/Y/Z axis rapid feed speed | m/min | 12/12/10m/min |
box way | ||
Magazine type | Armless/Disc | |
Tool Magazine Capacity | 16/24 tools | |
Tool Change Time | sec | 7/2.5 sec |
Magazine Hole Taper | BT40-24 | |
Max. tool length | mm | 300 |
Max. tool weight | kg | 7.5 |
Electricity supply required | kva | 25KVA |
Air pressure required | kgf/cm² | 5-7 |
Positioning accuracy | mm | ±0.005 |
Repositioning accuracy | mm | ±0.004 |
Overall size(L×W×H) | mm | 3300x2550x2800 |
Machine weight | T | 6.2T |
VMC1160 CNC Milling Machine Related Product:
Table szie: 900*400mm
Travel: 600*400*500mm
Main Motor: 5.5kw
Table szie: 1000*500mm
Travel: 800*500*500mm
Main Motor: 7.5kw
Table szie: 1000*550mm
Travel: 800*550*550mm
Main Motor: 7.5kw
Table szie: 1250*360mm
Travel: 900*400*500mm
Main Motor: 5.5kw
Table szie: 1360*700mm
Travel: 1200*700*600mm
Main Motor: 15kw
Table szie: 1360*700mm
Travel: 1300*700*600mm
Main Motor: 15kw
Table szie: 1000*360mm
Travel: 600*360*450mm
Main Motor: 3.7kw
Table szie: 600*200mm
Travel: 300*200*300mm
Main Motor: 1.1kw
Q & A
What are the causes of vibration marks in VMC1160CNC machining center?
1, the CNC machining center itself: there are more factors affecting the machine tool, but mainly due to local or insufficient rigidity of the system, there are abnormal vibration sources caused by machine tool system vibration. Machine vibration leads to vibration marks (mostly straight vibration marks or porphyritic marks) on the inner surface of the workpiece.
According to the analysis of Tsinfa CNC Co., LTD., there are many reasons for the vibration pattern of the workpiece, but it is nothing more than a comprehensive machining center itself, machine configuration, machining workpiece and cutting fluid problems. When buying CNC machining centers, we must choose high-quality manufacturers
