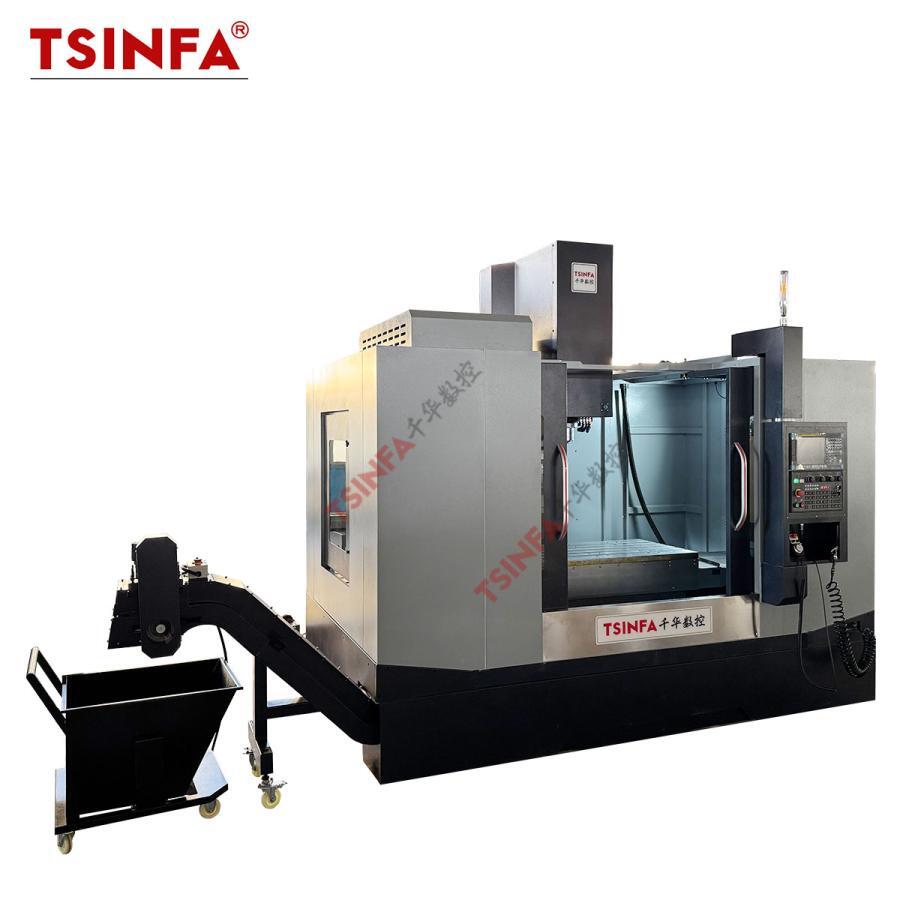

VMC1370 maching center

Description

Hot sale

Model: TVK1370 (VMC1370)

  • High speed
  • High-precision
  • CNC System: GSK, FANUC, Siemens, Mitsubishi
  • Optional: Linear guide, tool magazine
  • Fully enclosed protection, chip conveyor

Need a quote? Give us a call at +86-15318444939, and talk to one of our expert reps.You can also fill out our : contact form

WE CAN CUSTOMIZE ACCORDING TO YOUR NEEDS, CONTACT US FOR SOLUTION AND QUOTATION

Specification Units TVK/VMC 1370
Table size mm 1400×700
T-solt(NO.×width×pitch) mm 5×18
Max. table load kg 1000kg
Guide rail type X/Y/Z axis box way  or linear Guideway
X/Y/Z axis travel mm 1300×700×650mm
Distance from spindle nose to worktable mm 70-720
Distance from spindle center to column mm 785
Spindle taper BT50
Spindle speed rpm 8000
Spindle motor kw 15
X/Y/Z axis motor nm 23/23/27
X/Y/Z axis rapid feed speed m/min 24/24/18
linear guideway
Magazine type Armless/Disc
Tool Magazine Capacity 16/24 tools
Tool Change Time sec 7/2.5 sec
Magazine Hole Taper BT40-24
Max. tool length mm 300
Max. tool weight kg 7.5
Electricity supply required kva 25KVA
Air pressure required kgf/cm² 5-7
Positioning accuracy mm ±0.005
Repositioning accuracy mm ±0.004
Overall size(L×W×H) mm 3300x2600x2950
Machine weight T 12T
