Description
Hot sale

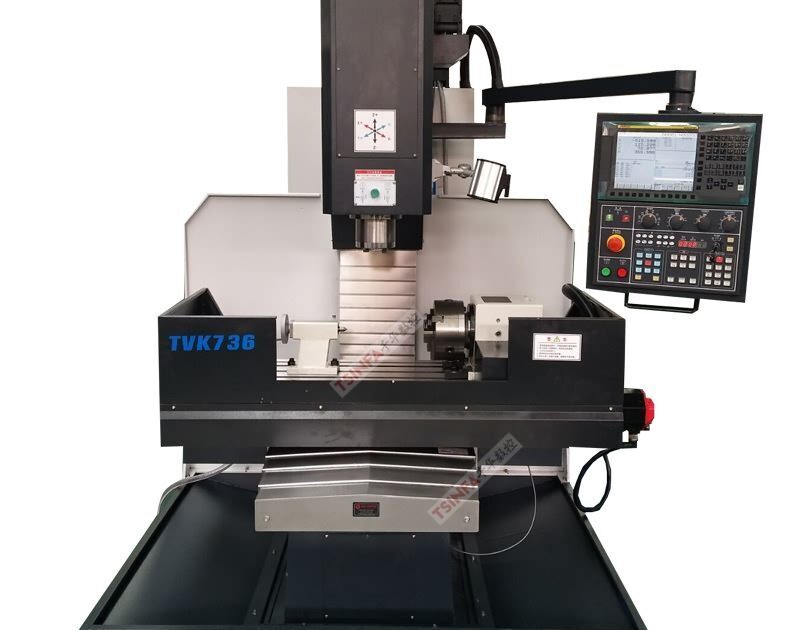

Model: TVK736
- High speed
- Small type
- CNC System: GSK, FANUC, Siemens, Mitsubishi
- Optional: Linear guide, tool magazine
- Fully enclosed protection, chip conveyor
Need a quote? Give us a call at +86-15318444939, and talk to one of our expert reps.You can also fill out our : contact form
WE CAN CUSTOMIZE ACCORDING TO YOUR NEEDS, CONTACT US FOR SOLUTION AND QUOTATION
| Specification | Units | TVK736 |
| Table size | mm | 1250*360 |
| Max. table load | kg | 400 |
| X/Y/Z table travel | mm | 900*400*500 |
| Numbers,width&distance between T – slot | mm | 3*18 |
| Spindle nose to table surface | mm | 100-600 |
| Spindle center to Column surface | mm | 460 |
| Spindle taper | BT40 | |
| Spindle speed | r.p.m | 6000 |
| Inverter-fed motors | kw | 5.5 |
| Table rapid feed speed | m/min | 10*10*8 |
| Cutting feed speed | mm | 6000 |
| Three axis servo motor torque | NM | 7/7/10 |
| Positioning accuracy | mm | ±0.01 |
| Repeat position accuracy | mm | ±0.008 |
| Net weight | kg | 2800 |
| Overall dimension(L×W×H) | mm | 2200*1900*2350 |
