Description
Hot sale

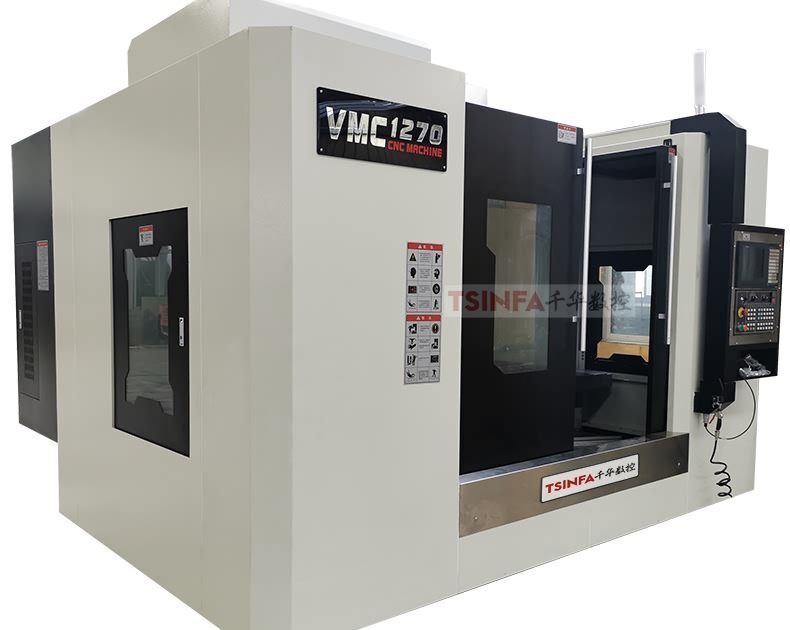

Model: TVK1270 (VMC1270)
- High speed
- High-precision
- CNC System: GSK, FANUC, Siemens, Mitsubishi
- Optional: Linear guide, tool magazine
- Fully enclosed protection, chip conveyor
Need a quote? Give us a call at +86-15318444939, and talk to one of our expert reps.You can also fill out our : contact form
WE CAN CUSTOMIZE ACCORDING TO YOUR NEEDS, CONTACT US FOR SOLUTION AND QUOTATION
| Specification | Units | TVK/VMC 1270 |
| Table size | mm | 1360×700 |
| T-solt(NO.×width×pitch) | mm | 5×18 |
| Max. table load | kg | 500kg |
| Guide rail type | X/Y/Z axis box way or linear Guideway | |
| X/Y/Z axis travel | mm | 1200×700×700 |
| Distance from spindle nose to worktable | mm | 70-720 |
| Distance from spindle center to column | mm | 785 |
| Spindle taper | BT50 | |
| Spindle speed | rpm | 8000 |
| Spindle motor | kw | 15 |
| X/Y/Z axis motor | nm | 23/23/27 |
| X/Y/Z axis rapid feed speed | m/min | 24/24/18 |
| linear guideway | ||
| Magazine type | Armless/Disc | |
| Tool Magazine Capacity | 16/24 tools | |
| Tool Change Time | sec | 7/2.5 sec |
| Magazine Hole Taper | BT40-24 | |
| Max. tool length | mm | 300 |
| Max. tool weight | kg | 7.5 |
| Electricity supply required | kva | 25KVA |
| Air pressure required | kgf/cm² | 5-7 |
| Positioning accuracy | mm | ±0.005 |
| Repositioning accuracy | mm | ±0.004 |
| Overall size(L×W×H) | mm | 3300x2600x2950 |
| Machine weight | T | 12T |
