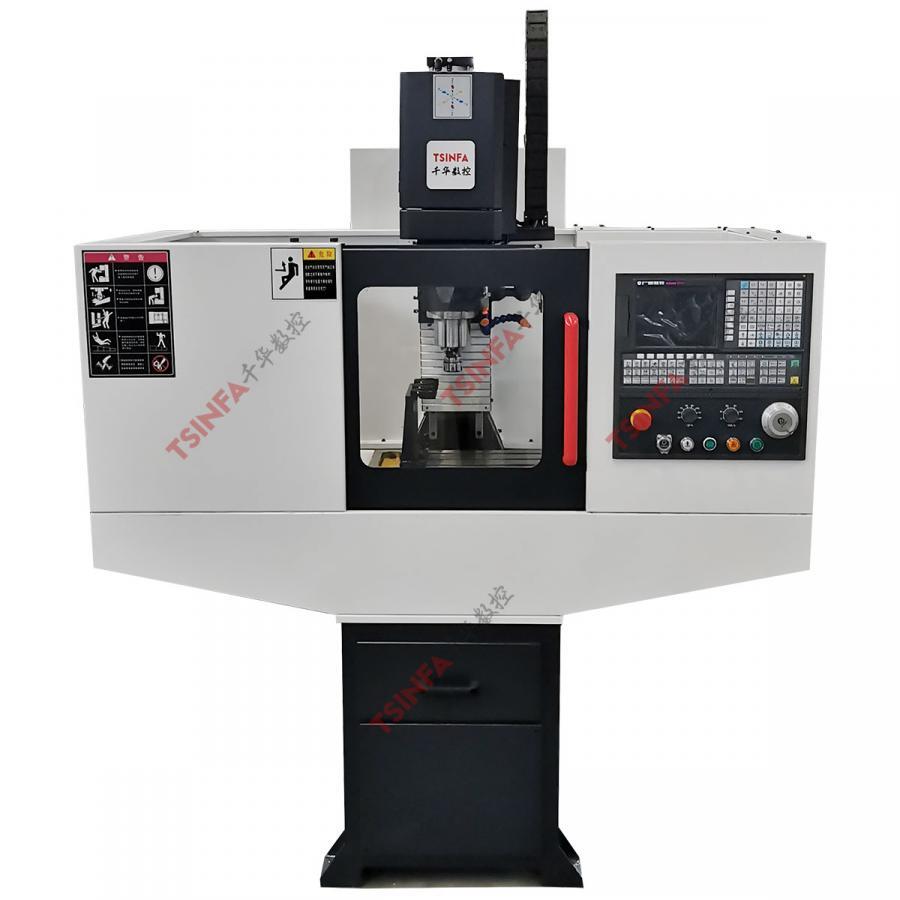

7120 cnc milling machine

Description

Hot sale

Model: TVK720

  • High speed
  • Small type
  • CNC System: GSK, FANUC, Siemens, Mitsubishi
  • Optional: Linear guide, tool magazine

Need a quote? Give us a call at +86-15318444939, and talk to one of our expert reps.You can also fill out our : contact form

WE CAN CUSTOMIZE ACCORDING TO YOUR NEEDS, CONTACT US FOR SOLUTION AND QUOTATION

Specification Units TVK720 TVK724
Table size mm 600*200 1000*240
Max. table load kg 100 300
X/Y/Z table travel mm 350*200*300 450*300*450
Numbers,width&distance between T – slot mm 3*12 3*16*60
Spindle nose to table surface mm 45-345 70-520
Spindle center to Column surface mm 255 350
Spindle taper R8 BT40
Spindle speed r.p.m 3000 3000
Inverter-fed motors kw 1.1 3
Table rapid feed speed m/min 3*3*3 6*6*8
Cutting feed speed mm 3000 5000
Three axis servo motor torque NM 4/4/6 6/6/10
Positioning accuracy mm ±0.02 ±0.015
Repeat position accuracy mm ±0.01 ±0.01
Net weight kg 650 950
Overall dimension(L×W×H) mm 1400*1000*2000 1800*1650*2200
