Bridge mills are categorized as vertical machining centers thanks to their unique configuration that constitutes an extended Y-axis and a motionless bed.

This milling machine caters to comparatively mammoth workpieces such as aerospace components and military equipment.

Components of a Bridge Mill

A bridge mill has all the primary features of typical milling machines. However, its configuration is slightly altered to feature a bridge, which makes this machine ideal for specific milling operations. This machine features a myriad of distinct components, which include:

· Base Casting

The base casting is a robust component that acts as the foundation for your bridge milling machine. It provides a solid surface that holds and supports other essential components including the bridge and coolant system. As such, this casting is manufactured using heavy and abrasive-resistant material, permitting it to withstand heavy loads.

· Bridge Structure

This is the key component that defines bridge mills. Just like its name, this component is bolted to the mill’s bed and it bridges the gap between your mill’s columns. It runs up and down along the Y-axis and it provides a foundation for the spindle head and other essential components. The inclusion of a bridge structure in bridge mills gives them an edge over other vertical machining mills since it provides greater rigidity.

· Y-Axis

This is a carriage supported by the mill’s bridge structure and is tasked with carrying the spindle head. This Y-axis carriage runs up and down the bridge and since it supports your spindle head it allows your spindle to span vertically.

· Spindle Head

The spindle head is a component held by the Y-axis carriage, which is in turn supported by your mill’s bridge structure. This component is responsible for holding other pivotal parts including the spindle and tool taper. The spindle is consequently tasked with revolving your milling cutter thus facilitating distinct milling operations. Your bridge mill may feature one of the following spindle heads:

  • Tilting spindle head.
  • Fixed-angle spindle head.
  • Continuous rotary spindle head.

· X-Axis Table

This is a table-like structure supported by the X-axis carriage and it runs along it. It is mounted on your bridge mill’s base casting making it quite stable and rigid. Thanks to this X-axis table, you can adjust your workpiece’s position to allow precise milling.

· Z-Axis Ram

This is a support structure tasked with supporting or housing the sleeve. It is mounted on the Z-axis whose motion moves your quill up and down. This consequently permits you to adjust the position of your milling cutter upwards or downwards. As such, you can control the depth of your cutting operation.

· Control System

This is an indispensable component that allows you to feed varying instructions into your bridge milling machine. The vast majority of contemporary bridge mills are endowed with CNC control systems that allow you to preprogram instructions such as cutting depth and spindle rotation speed.

· Coolant System

The majority of today’s bridge mills are equipped with a coolant system whose primary role is to dissipate the heat generated during milling operations. This system delivers a cooling agent like chilled water to the milling cutter and workpiece and this cooling agent also acts as a lubricant. It can also dislodge or flush away the fragments generated during milling.

· Tool Changer

This component is prevalent in turret bridge mills, which come with a plethora of distinct milling tools. It is an automatic constituent that extracts a used cutter before substituting it with a distinct machining tool making it possible for you to accomplish varying milling operations. A tool changer rewards you with minimal downtimes and higher production volumes.

· Chip Conveyor

Milling results in the generation of small fragments or chips trimmed from your workpiece. The accumulation of these fragments can be an operational hazard hence it is mandatory to extract them. A chip conveyor allows you to extract these chips and discard or recycle them. By doing so, it also helps you maintain a clean and safe working area.

Types of Bridge Mills

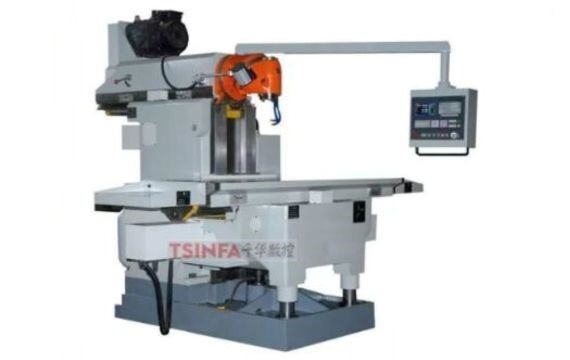

Vertical Machining Center

Vertical Machining Center

The manufacturing industry is always evolving and this can be evidenced by the innovative and distinct milling machines being invented. If you are looking for a custom-made bridge milling machine, you have the luxury of choosing one of the following options.

· Fixed Table Bridge Mills

These bridge mills are distinguished by their motionless worktable. They however feature a movable bridge, which facilitates the machining of enormous components like construction equipment. A fixed table bridge mill dental guarantees you consistently high performances meaning you can task them with high-volume production.

· Knee Bridge Mills

These bridge mills are specialized to handle comparatively larger workpieces since they offer a bigger workpiece clearance.

This is enabled by the inclusion of an additional component known as the knee. This component allows you to move your X-axis table and the Z-axis quill. A knee bridge mill pool guarantees you precise machining when handling mammoth workpieces.

· Moving Table Bridge Mills

These bridge mills are characterized by a mobile worktable, which moves along the X-axis. This configuration allows you to adjust the space where you fit your workpiece.

As such, you can machine raw materials with varying dimensions ranging from small car parts to large aerospace components. At present, these machines reign supreme in prototyping, tool rooms, and commercial metalworking shops.

· 5 Axis Bridge Mills

These bridge milling machines are endowed with multiple axes, five to be specific. This means that you can machine your workpiece from various angles making it possible for you to carve out sophisticated geometries.

With a 5-axis bridge mill, you eliminate the need for another milling machine since you can machine complex geometries with a single machine.

· CNC Bridge Mills

These are highly advanced bridge mills endowed with computerized controls and automated components that minimize physical input. The result of this computerization and high automation level is often precise machining and faster production volumes and rates.

With a CNC bridge mill, all you need to do is input essential instructions, for instance, optimal spindle rotation speed and cutting depth. These mills excel in drilling, grooving, knurling, and facing among others.

· Hybrid Bridge Mills

These are innovative milling machines capable of accomplishing numerous milling operations and complex geometries. Hybrid bridge mills have a unique configuration that permits them to accomplish both subtractive and additive milling operations. This eliminates the need for additional machines consequently translating into cost-efficiency.

Advantages of Bridge Mills

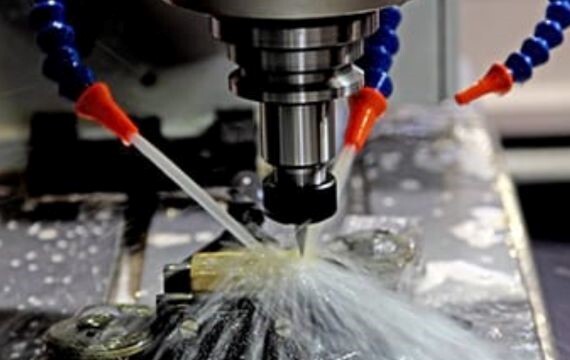

CNC Milling Process

CNC Milling Process

Bridge mills have earned a great reputation as the pinnacle of milling technology thanks to their immense productivity and reliability.

They promise a plethora of rewards making them the go-to milling solution for most manufacturers. These rewards include:

  • Improved Stability: They feature a heavy base casting, which allows you to machine heavy and enormous workpieces. While milling these workpieces, you experience comparatively lesser deflection making it possible to accomplish precise cutting.
  • Superior Rigidity: Typical vertical machining centers are equipped with single-column configurations. Bridge mills, on the other hand, boast of double-column configurations meaning that they are more rigid and stable.
  • Large Machining Envelope: Thanks to their configuration, bridge mills allow you to adjust your workspace meaning you can work on workpieces with distinct dimensions. This increased workspace envelope is enabled by the adjustable travel range of the mill’s Y-axis. You can even fit multiple small workpieces all at once.
  • Improved Ergonomics: When using a bridge milling machine, you will find it easier to machine your workpieces due to the increased machining envelope and the better visibility. You can even mill your workpiece from multiple areas due to its improved ergonomics.
  • High Precision: Whether you are looking to drill holes, face your workpiece, or carve out keyways, a bridge mill will help you accomplish your mission with utmost accuracy. The stability of these mills coupled with the inclusion of CNC controllers ensures that your milling cutter is accurately positioned to achieve a desirable cutting depth.
  • Space Efficient: Bridge mills are characteristically small-sized and this is a consequence of their compact configuration. The inclusion of a bridge structure means that a relatively smaller base is needed. Compared to typical vertical machining centers, they are the compact option.
  • Maximized Productivity: By utilizing computerized control systems bridge mills greatly shrink downtimes and time wasted changing milling tools. They can also achieve extremely high spindle rotation speeds resulting in faster milling operations. This enhances your production volume and rate.
  • Better Chip Management: Bridge mills boast of improved ergonomics, which makes it easier for you to access its internal components. This also allows you to evacuate or flash out the dismembered chips consequently averting chip buildup. This keeps your bridge mill clean and prevents accidental injuries.
  • Long-Term Cost-Effectiveness: Utilizing a bridge mill comes with long-term financial gains including reduced labor costs. They also minimize resource wastage and optimize your production volume. This ultimately results in bigger profit margins.

Differences Between a Bridge Mill and a Vertical Machining Center

Vertical machining centers are a household name in distinct manufacturing processes. Similarly, bridge mills reign supreme when it comes to designing varying workpieces. However, these two indispensable machines demonstrate key differences as illustrated by the underlying table.

Features Bridge Mills Vertical Machining Centers
Structure They feature a bridge structure and double columns making them more rigid. Typically, they feature a C-frame configuration that includes a single column.
Work Envelope Boast of a bigger machining envelope making them ideal for milling large workpieces. Their design leaves them with a relatively smaller Y-axis travel limiting their operation to smaller workpieces.
Cost Relatively more expensive due to their complex configuration. Relatively cheaper since they feature a simple C-frame design.
Ergonomics They offer improved ergonomics making them user-friendly. Their C-frame design makes it a little bit harder to access their inner components.
Footprint They are comparatively more compact. They are relatively larger.

Differences Between a Bridge Mill and a Double Column Machining Center

Bridge mills and double-column machining centers are similar in multiple ways and this has seen bridge mills regarded as compressed double-column machining centers. They however exhibit several distinctions as outlined by the underlying table.

Features Bridge Mills Double Column Machining Centers
Footprint Are characteristically small-sized and compact despite featuring a bridge structure. Their overall size is comparatively larger making them perfect for enormous workpieces.
Construction Are typically manufactured in a single structure. Are typically manufactured in three distinct castings.
Applications Often utilized to mill moderately-sized components due to their relatively smaller size. Often utilized to mill enormous components like ship parts due to their relatively large size.
Cost Owing to their smaller size, their cost is comparatively lower. Owing to their multi-layered construction and large size, they cost relatively more.

Differences Between Bridge Mills and Gantry Mills

When you look at a bridge mill for sale and compare its features to that of a gantry mill, you will realize they exhibit numerous resemblances. However, when you dig deeper, you will unleash several differences as illustrated by the following table.

Features Bridge Mills Gantry Mills
Structure They feature a bridge and worktable that travels along the Y and X axis. They also feature a bridge structure but their worktable remains stationary.
Work Envelope They boast of bigger machining envelopes hence they are often utilized to mill enormous parts. Their work envelope is relatively smaller hence they are often utilized to mill narrow workpieces.
Accessibility You can access the worktable from numerous directions. Positional access to your worktable is quite limited.

Applications of Bridge Mills

  • Large Components: They excel in milling workpieces of enormous size including ship components thanks to their large work envelope.
  • Aerospace Parts: In the aerospace industry, they are prominently exploited to machine aircraft wings, and landing gears among other components.
  • Power Generation Components: Bridge mills excel in the machining of stators and turbine housings among other power generation components.
  • Construction Equipment: They play a pivotal role in the production of key construction machinery including bulldozer blades and excavator booms.
  • Die Making: Their ability to carve out precise and smoothly finished cavities has seen them broadly exploited in die and mold making.
  • Military Equipment: Bridge mills are highly sought after when it comes to manufacturing military equipment including weapons and tank hulls.

At TSINFA, we offer a wide range of milling machines depending on your unique requirements and specifications. Tell us your machining needs and you will get a perfect machine for your production needs.
