A Complete Buyers Guide for Milling Machine

A milling machine definition is a specialized device that relies on a revolving milling cutter powered by a motor to configure the shape of your workpiece. The solid material being milled is referred to as a workpiece and you can leave it with distinct features including holes and curves.

Primary Functions of a Milling Machines

Milling machines often come with a myriad of distinct cutting options and this opens up the door for numerous milling operations. You can utilize your milling machine to accomplish the following milling operations:

  • Material Removal: A milling machine helps you install distinct features on your workpiece or even size them by extracting tiny fragments. This is done with the help of a milling cutter, which you can position strategically to ensure precision.
  • Machining Grooves: When producing components meant to accommodate features such as keyways and bearings, you must install grooves. A milling machine specialized to create these channels comes in handy and does this with utmost precision.
  • Creating Flat Surfaces: Certain components necessitate a flat surface, which can act as the base or mating surface. Using a specialized milling machine, you can easily create smooth surfaces on your workpieces.
  • Milling Slots: Certain components such as the motor necessitate pockets or slots, which serve as the mounting infrastructure. Milling machines with specially designed cutters can help you mill these pockets while eliminating the likelihood of errors.
  • Surface Finishing: Depending on the type of milling cutter installed on your milling machine, you can give your workpiece a smooth or rough finish. To attain a smooth finish, the milling machine will cut off the tiny fragments responsible for the roughness.

Types of Milling Machines

Milling is an indispensable production process especially when it comes to products made from solid materials like metals and wood. The demand for customized milling solutions has encouraged the invention of distinct milling equipment. This includes;

· Vertical Mills

With this mill, your revolving spindle is positioned in an upright position even though your worktable can maneuver both ways (vertically and horizontally). It suits milling applications that necessitate the vertical removal of unwanted chips such as slot milling.

Vertical Milling Machine

Vertical Milling Machine

Advantages

  • They are quite uncomplicated unlike their horizontal counterparts and this gives them a lower price tag.
  • They have a simple orientation which makes it easier for you to learn how to operate them. The placement of their spindle is also an added advantage as it eases the operation process.
  • The average vertical milling machine has a comparatively smaller footprint allowing you to deploy it in constrained spaces.
  • Its orientation also translates into more precise chip removal. This ensures that your workpieces are of the highest quality and standard.

· Horizontal Milling Machines

This is a distinct milling equipment characterized by a spindle alignment that is parallel to your worktable. Owing to this orientation, you can mill comparatively larger workpieces and irregularly shaped objects. As such, this unique machine is often exploited in contouring, slotting, and grooving applications.

Advantages

  • This machine is capable of trimming out larger or more unwanted chips from your workpiece owing to the advanced milling cutters used.
  • The design of horizontal mills accommodates better thick workpieces. Their milling cutters can cut deeper and their bed-like base can hold large objects.
  • The machine is designed with components that ease the process of extracting the trimmed fragments.
  • Its horizontal orientation is advantageous given that it provides superior stability. This permits the milling of larger and heavier workpieces.

· Bed Type Milling Machines

This milling machine is known for its unique base which resembles a typical bed. This unique construction gives them unmatched stability hence bed-type milling machines are often utilized to mill heavy pieces. Additionally, these machines are capable of achieving three-axis motion.

 Bed Type Milling Machine

Bed Type Milling Machine

Advantages

  • The study nature of the installed bed gives your entire machine great stability and this allows you to mill heavy-duty pieces.
  • They have a modular design which opens up opportunities for adding supplemental features like coolant systems.
  • Owing to the solid foundation provided by the bed, you are not likely to experience vibrations even when milling heavy solids.

· Universal Milling Machines

This is one of the most multifaceted milling machines available in today’s market. It allows you to choose an orientation (horizontal or vertical) of your liking depending on your machining requirements. Universal milling machines feature a movable worktable, capable of revolving both ways (up to 45). This opens up the door for helical and angular milling.

Universal Milling Machine

Universal Milling Machine

Advantages

  • By accommodating both horizontal and vertical orientations, these machines open up more milling opportunities including angular milling.
  • You can adjust the position of the spindle to accommodate irregularly shaped or sized workpieces.
  • They serve the roles of two distinct milling machines meaning you do not have to change your milling machine mid-production.
  • Having a universal milling machine is space-efficient compared to acquiring separate horizontal and vertical milling machines.

· CNC Milling Machines

These are the most advanced variations of milling machines and they are revered for their computer dependence. CNC mills are highly computerized and this enables them to achieve complex milling operations such as 3D machining. A CNC milling machine requires minimal human input and this can save you a lot in labor costs.

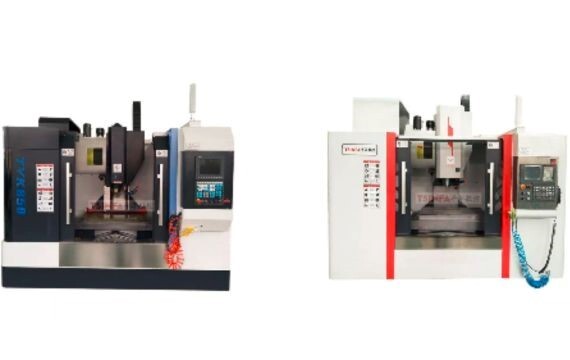

CNC Milling Machine with Chip Conveyor

CNC Milling Machine with Chip Conveyor

Advantages

  • Exceptional Precision: By relying on computer-controlled components, these mills can achieve perfect cuts even when the specified patterns are complicated.
  • Increased Productivity: The majority of time-consuming tasks are automated in CNC milling machines. This saves time and labor while increasing the number of workpieces milled per specified duration.
  • Ability to Mill Complex Designs: The computerization of these mills means that you can easily cut complicated patterns with great precision. This machine allows you to mill intricate patterns, angles, and curves.
  • Lower production costs.
  • Improved safety.
  • Reduced wastage.

· Gantry Milling Machines

This is a milling machine known for its unique double-column configuration. It features a gantry supported by columns and the gantry is responsible for holding the milling cutter. This leaves gantry milling machines with enormous working spaces meaning you can use them to mill relatively huge pieces.

Advantages

  • Supports multi-axis machining.
  • Greater stability.
  • You can easily access the worktable.
  • Most gantry mills incorporate computer-control systems.

· Keyway Milling Machines

This is a specialized apparatus that is designed to inject grooves or slots that act as keyways in distinct components. You can adjust the width and depth of the keyway milling cutter to ensure that the created groove is compatible with the expected key size. They are available in varying forms including;

  • Staggered-tooth keyway mills
  • Straight-tooth keyway mill
  • Woodruff milling machines

Advantages

  • They are highly precise and this ensures your keyway is inserted in the specified region at cut to the specified dimensions.
  • They accommodate varying keyway tooling options and this allows you to drill distinct keyway slots or grooves.
  • Some keyway mills are lightweight and portable meaning you can easily move them across multiple workstations.

· Column Milling Machines

This mill commonly utilized mill is known and revered for its dual support structure that comprises a column and knee. The knee is supported by the column and it in turn supports the saddle. The column, on the other hand, underpins the worktable and the knee.

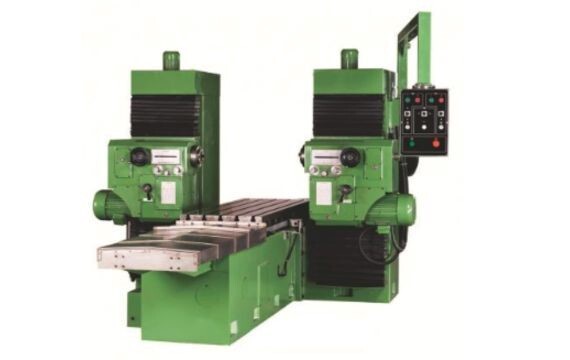

Double Column Milling Machine

Double Column Milling Machine

Advantages

  • They are open to CNC integration.
  • They save space.
  • They can fulfill numerous milling functions.
  • You can easily learn how to operate one.

· Turret Milling Machines

The turret milling machine is revered for its diverse range of milling tools as well as its increased production rate. This is enabled by a rotating turret head, which is typically fitted with multiple milling cutters. If you intend to adopt a new milling operation, you can simply change the type of milling cutter on your mill.

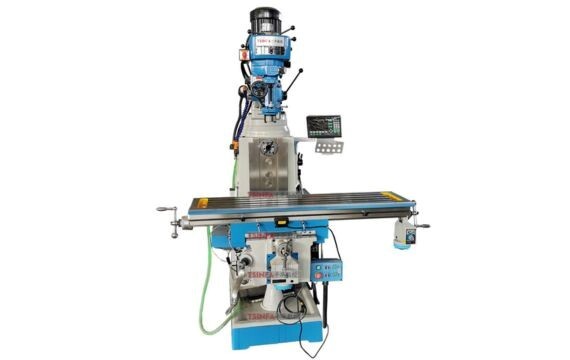

Vertical Turret Milling Machine

Vertical Turret Milling Machine

Advantages

  • Multifunctional: It is simply a single machine capable of implementing varying milling functions.
  • Faster Production: It features numerous milling cutters meaning you can work on multiple workpieces instantaneously.
  • Space-saving: It can accommodate numerous milling tools meaning you do not require multiple milling machines.
  • Angular Machining: The milling head on the turret can swivel to a certain degree and this allows you to carve out complex patterns.

What Makes Up Your Milling Machine

  • Bed: This is typically a cast iron or welded steel foundation that acts as the base for your milling machine. It is tasked with holding and aggregating the other parts of your mill. Furthermore, it ensures that your worktable and workpiece are firmly grounded during milling.
  • Spindle: This is the motor-driven component that is capable of revolving and is responsible for supporting your milling cutter. To increase or decrease the milling speed, you simply adjust the rotating speed of your spindle.
  • Main Drive Motor: The drive motor is the driving force behind the operation of your spindle and milling cutter. It powers the movement of the spindle, which consequently initiates the controlled movement of your cutter.
  • Column: The column is a pillar that runs from the base in an upright direction and it provides support to other essential components, especially the knee. It also holds the spindle and it typically assumes a box-like shape.
  • Milling Cutter: This is a specialized tool that does the actual milling and it is housed by milling or cutter head. Your milling machine may comprise numerous milling cutters as is the case with turret mills. The type of the milling cutter can be one of the following;
    • End mill cutter
    • Cylindrical cutter
    • Saw blade cutter
    • Keyway cutter
    • Form cutter
    • Disc milling cutter
    • Angle cutter
  • Cutter Arbor: The cutter arbor is a shaft that links your spindle to the milling cutter and it is typically round-shaped. Once the spindle spins or starts revolving, the arbor conveys this motion to the cutter consequently leading to the actual milling.
  • Saddle: You will find the saddle protruding from the knee as a slide that holds your mill’s table. You can adjust its positioning to give the knee a clear guideway.
  • Knee: This is the component that allows you to adjust the positioning of your milling cutter as well as your workpiece. It comes with an elevating screw, which you can use to dictate its movement along the column.
  • Table: This is a flat surface typically manufactured from cast iron. It is supported or held by the saddle and it acts as the platform that holds your workpiece during the milling process. It can move in three ways;
    • Longitudinally
    • Vertically
    • Transvertically
  • Overarm: This is the arm-like component that holds up your spindle’s outboard and is tasked with maintaining firmness.
  • Overarm: This is the arm-like component that holds up your spindle’s outboard and is tasked with maintaining firmness.

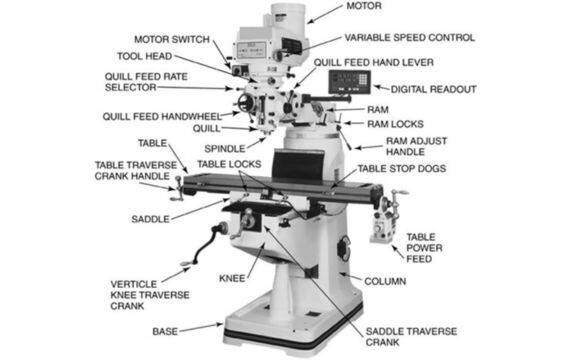

Parts of Universal Milling Machine

Parts of Universal Milling Machine

Basic Milling Operations

Milling is a noticeable production process that can have varying results. This is why there are multiple distinct milling apparatuses and components. They are intentionally designed to implement the following operations:

  • Facing: To accomplish this, you will need a face milling cutter, which will cut and remove unwanted segments of your workpiece to create a flat surface.
  • Peripheral Milling: This is a function that requires your milling machine to extract chips of material from your workpiece to grooves, channels, and pockets.
  • End Milling: This operation involves milling sophisticated features and shapes onto your workpiece using an end milling cutter.
  • Angled Milling: Angled milling is a process that requires a unique set of milling equipment. It is designed to achieve angled cuts or shapes hence it requires movable milling cutters.
  • Keyway Milling: Keyway milling is a very specific milling operation that results in the generation of keyway slots in distinct workpieces. It requires a specialized keyway milling machine.
  • Thread Milling: This operation helps you engrave threads on your workpiece using specialized milling cutters. The pattern and dimension of your thread milling cutter determine the thread profile engraved in your workpiece.

Choosing the Ideal Milling Machine

Although the market is filled with high-quality milling machines, finding the right mill for your respective application can be testing. However, you can evaluate the following features to determine which machine suits you best.

  • Spindle Speed: Ensure you pick a milling machine with a spindle speed range that meets your production demands without degrading the quality of your workpiece.
  • Spindle Power: If you intend to mill heavy-duty solid materials, ensure that the spindle power of your mill is sufficient enough. If you intend to mill lighter workpieces, you can settle for less spindle power.
  • Automation: When it comes to automation, you have three options; manual, automatic, and semi-automatic. Settle for a milling machine that offers the right level of automation for you. For instance, you can settle for a CNC mill if you desire the utmost automation.
  • Type of Workpiece: Milling machines are tailored to handle specific materials. Ensure that you pick a machine whose components and features are custom-made to handle the respective material and design of your workpieces.
  • Table Size: Bear in mind that the size of the table in your milling machine determines the dimensions of the workpieces the mill can handle.

Servicing Your Milling Machine

Serving your milling machine not only keeps your mill in tip-top condition, it also mitigates premature degradation. Here are some servicing tips to help you optimize your mill’s productivity.

  • Regularly clean off the accumulated workpiece fragments as well as dirt on your milling machine.
  • Lubricate joining components regularly.
  • Conduct regular visual inspections to establish worn-out parts.
  • Regularly check for loose bolts and tighten them appropriately.
  • Extract old oil from the joining components and substitute it with new oil frequently.

Common Uses of Milling Machines

Milling machines combine numerous functions and this results in a myriad of rewards that have driven their use upwards.

  • General Machining
  • Metalworking
  • Automotive Industry
  • Electronics Manufacturing
  • Aerospace Industry
  • Medical Dental Device Processing
  • Die Making
  • Prototyping
  • Wood Making
  • Jewelry Making
  • Mold Making

Frequently Asked Questions

· How Much Does a Milling Machine Cost?

Milling machines today, are available in distinct categories and each category promises different features. This difference is often translated into the price of these indispensable machines. For instance, you can procure a benchtop mill at roughly $200 and an industrial CNC mill at over $100,000.

· Can Milling Machines Mill Wood and Glass?

Milling machines are often specialized to process workpieces made from specific materials. These materials include;

  • Metals e.g. aluminum, steel, and titanium
  • Plastics e.g. polyethylene, nylon, and acrylic
  • Wood
  • Foam e.g. EVA foam and polystyrene foam
  • Ceramics
  • Rubber and graphite

· Are Milling Machines Safe?

The instructions manual for your milling machines stipulates in bold the safety precautions you should take when installing and using your mill. Failure to adhere to these precautions can lead to:

  • Cuts
  • Entangled clothes
  • Injuries from flying chips
  • Crash injuries
  • Exposure to injurious substances

· What are the Common Problems Associated with Milling Machines?

Despite their robustness and efficiency, milling machines are not devoid of imperfections. When using one, you may encounter one of the following issues;

Common Issues Remedy
Chatter marks They are caused by trembling during milling and this can be remedied by firmly grounding your milling machine diagram.
Workpiece distortion This is often caused by internal stress and you can be cured by adjusting the spindle power and speed.
Broken components This can be a consequence of old age or improper use and the only remedy is replacing the broken parts.
Increased friction This may occur when the moving parts run out of lubrication. You can solve this by applying the appropriate lubricant.

If you are looking for high-quality and reliable milling machines from China, Tsinfa CNC Equipment. If your trusted partner.

Request milling machine pdf for more information.
