Horizontal Machining Center Vs Vertical – An Ultimate Comparison

Probably, you could be wondering how a horizontal machining center compares to the vertical machining center. Well, this article explores all fundamental facts that will help you choose a perfect equipment for your machining operations.

Let’s dive right in:

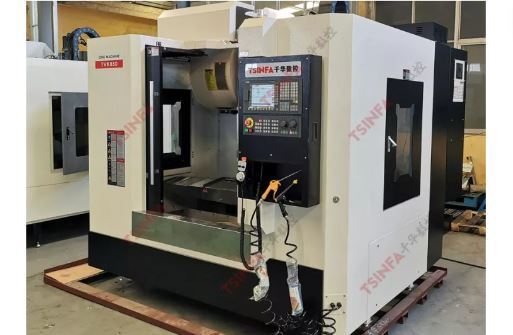

What is Horizontal Machining Center?

Often abbreviated as HMC, a horizontal machining center is a specialized machine designed to perform distinct processing operations like drilling and milling. It features a spindle which stands perpendicular to the worktable.

Contemporary HMCs are generally computerized and this means you can exploit them to fulfill essential operations like tapping, milling, and boring.

Design of a Horizontal Machining Center

This unit features numerous components aligned uniquely to facilitate certain machining operations. These parts include;

• Base: This is a frame that acts as the foundation stone of your machining center. It provides a support structure for other pivotal components including the spindle and the worktable. The majority of horizontal machining centers feature cast iron frames or bases.
• Column: The column is another support structure that holds up your center’s z-axis. The Z-axis is a component that allows your horizontal machining center’s spindle to maneuver vertically. This component also acts as a bridge between the machine bed and the headstock.
• Worktable: Your horizontal centering machining comes with a table-like surface where you can place and position your workpiece. This worktable can move in distinct ways thanks to the inclusion of the x, y, and z axes.
• Spindle: This component primarily handles the movement of your installed machining tool. You can adjust its speed and power upwards or downwards depending on your operation’s demands. For HMCs, the spindle is uniquely configured seeing that it runs parallel to your worktable.
• Headstock: The headstock is the component that holds your center’s spindle whilst still supporting other pivotal parts. This includes the tool changer.
• Tool Changer: This is an automatic component that allows your horizontal machining center to switch between distinct machining tools. It comes with a magazine that preserves essential cutting tools like a milling cutter and a drill bit. Once you decide to change the machining tool, it retrieves the tool of your choice and mounts it on the spindle.
• Pallet Changer: Although not all horizontal machining centers are endowed with pallet changers, most contemporary centers are. This component allows you to feed different workpieces to your machining center thereby minimizing idle time.
• Axis Configuration: The axis configuration of horizontal machining centers varies depending on the center’s complexity. Basic HMCs boast of three axes while advanced options can feature up to 5 axes. This opens up the door to sophisticated machining processes including knurling and threading.

How a Horizontal Machining Center Works

Horizontal machining centers come in varying models each engineered uniquely to perform distinct machining functions. This may result in distinct working processes. However, typical HMCs perform varying machining operations in the following steps.

• Workpiece Loading: First, your raw materials or workpieces are fed onto the machining center and carefully positioned on the worktable. In advanced HMCs endowed with pallet changers, the loading process is automated.
• Fixturing: The loaded workpiece is then secured in place by firmly constraining it to your worktable. This is quite significant as it ensures your object is accurately positioned and avoids its movement during machining.
• Machining Tool Selection and Set-up: Consequently, the appropriate machining tool needed to process your workpiece is chosen and retrieved from the magazine. The designated tool is then mounted on the tool holder ready for machining.
• Programming: Once the workpiece and the center are well set up, machining instructions are keyed into the center’s controller. These instructions include the machining operation, the cutting depth, and the cutting machining speed.
• Machining: Once your instructions are keyed in, the horizontal machining center commences the machining process automatically. The machining tool is brought into contact with your workpiece by moving the spindle along a specified axis. This results in a well-shaped, drilled, or threaded workpiece.
• Coolant Application: The machining operations undertaken often result in friction and heat generation. This necessitates coolant and lubricant application to facilitate smooth operations.
• Unloading: This step is initiated once you are satisfied with the quality of your machined product. This process can be undertaken automatically or manually.

HMC Types

HMCs are classified based on their spindle configuration. However, they are further divided into other subtypes, each specialized to perform distinct roles.

3-Axis Horizontal Machining Center

The 3-axis HMC is a simple machining center renowned for supporting three-axis movements. This machine supports movement along the X, Y, and Z axes making it perfect for simple applications including milling, tapping, and drilling.

4-Axis Horizontal Machining Center

The 4-axis HMC incorporates more axes making it suitable for more complex machining processes. In addition to the three axes supported by a 3-axis HMC, this machine features a rotary table. With the 4-axis horizontal machining center, you can work on numerous faces of your workpiece accurately and conveniently.

5-Axis Horizontal Machining Center

This is the most advanced model of horizontal machining centers and it is universally revered for its flexibility. The 5-axis HMC comes with two extra rotary axes in addition to the three basic axes. These axes are the A and B axes, which permit you to machine irregularly shaped workpieces on numerous faces.

Twin Pallet Horizontal Machining Center

The twin pallet horizontal machining center is revered for its high production rates enabled by its dual pallet configuration. With this center, you can feed two workpieces on two different pallets. This ensures continuous machining since you can load one pallet while the other holds your workpiece for machining.

Advantages of Using Horizontal Machining Centers

• Multi-sided Machining: Typical horizontal machining centers feature numerous axes (3-5) and this allows you to carry out machining operations on multiple faces.
• Enhanced Productivity: Horizontal machining centers, especially dual pallet HMCs, allow you to handle multiple workpieces simultaneously and continuously. While one of your pallets is in the machining center, you can load the other.
• Improved Chip Management: The distinct orientation of HMCs as well as their impressive chip evacuation mechanism ensures that the accumulated fragments are efficiently removed. They contain chip conveyors, which makes chip extraction seamless.
• Improved Firmness: The unique configuration of HMCs makes them firm thereby enabling them to hold weighty pieces. When performing machining operations, the force is evenly distributed.
• Improved Precision: They contain a rigid spindle, which permits them to perform distinct machining operations while accomplishing unrivaled accuracy.

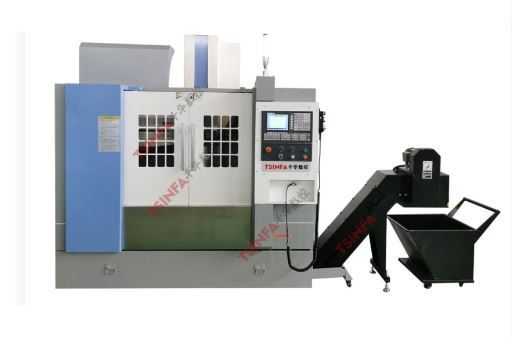

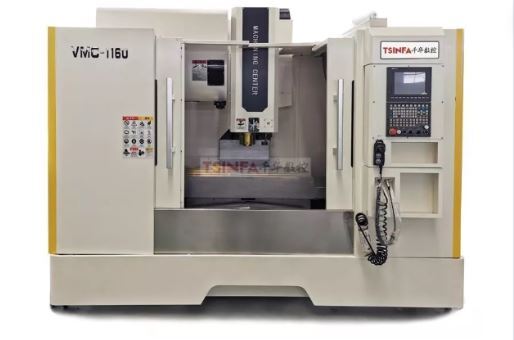

What is Vertical Machining Center?

A vertical machining center is a handy machine that features a perpendicularly aligned spindle making it perfect for high-precision machining. This means that your machining tool and spindle lie above the worktable that holds your workpiece.

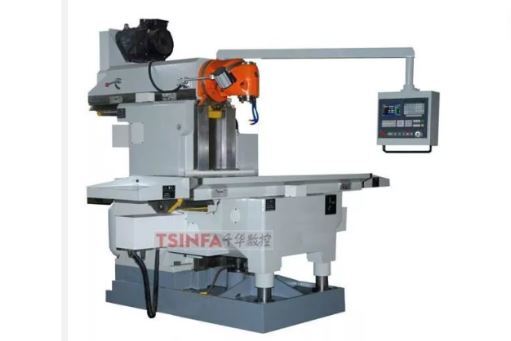

Parts of Vertical Machining Centers

VMCs are classified based on their configuration. Their core components (the spindle and machining tool) are mounted vertically and this guarantees accuracy. Just like HMCs, these machining centers feature multiple constituents, namely;

• Base: This acts as the foundation of your vertical center machining center and it is essentially the stem that supports other components.
• Column: The column is erected on the base and it stands upright providing a support base for moving components.
• Spindle: This is a shaft engineered to regulate the operation of your center’s machining tools. In VMCs, it is erected upright or vertically meaning it draws your cutting tool towards your workpiece from above.
• Worktable: This is a surface of variable size designed to hold your workpiece in position for the machining operation. In vertical machining centers, the worktable maneuvers along the X, Y, and Z axes.
• Tool Changer: The tool changer features a magazine that preserves your distinct array of machining tools. It is automated to allow swift changing of the machining tools.

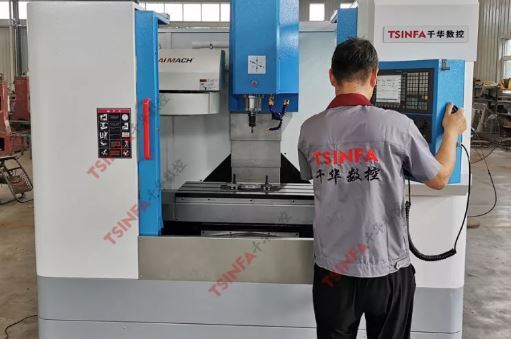

Operating a Vertical Machining Center

Vertical machining centers are relatively simple machines but to operate them, you must have a certain level of know-how. To smoothly operate your VMC, simply adhere to the following steps.

• Preparation: First, you must lay the groundwork for the machining operation. This should include wearing protective gear, setting up your VMC, and loading the appropriate machining tool.
• Programming: VMCs are generally CNC programmed meaning you should create a program that dictates your machine’s operation. Your program should stipulate your preferred cutting speed and depth among other parameters.
• Machining: Before commencing the machining operation, double-check your loaded program. Then proceed to activate the VMC from the control panel. This will automatically commence the execution of the machining operation articulated in your program.
• Completion: Once your workpiece is well processed, shut down the machine and extract your workpiece. Inspect its condition to ensure that it meets your requirements.

Sub-Categories of Vertical Machining Centers

Vertical machining centers come with varying features and this has provided a basis for categorizing them into distinct types. Common VMC types for you to exploit include;

• C-Frame Vertical Machining Centers: C-frame VMCs can be identified by their unique column orientation. Their column resembles a C-shaped frame making them quite rigid and thus suitable for machining heavy-duty workpieces.
• Moving Column Vertical Machining Centers: This type of vertical machining center is specialized to handle large pieces owing to its movable column configuration. Its column can maneuver along the x axis thus allowing the machining of huge objects.
• 3-Axis Vertical Machining Centers: This is the basic VMC model, which is characterized by the axes movement it supports. It is specialized to execute simple operations although its ability to handle large pieces is limited.
• 4-Axis Vertical Machining Centers: The 4-axis VMC incorporates an additional axis in the form of a rotary table. This makes it perfect for quite complex machining operations and relatively large components.
• 5-Axis Vertical Machining Centers: This advanced unit is regarded as the epitome of contemporary machining centers. It has the capacity to seamlessly machine weighty workpieces. It supplements the basic axes with two additional axes (A and B).

Pros of Using a Vertical Machining Center

• Space-efficient: Thanks to their vertical orientation, they occupy less space making them ideal for applications with constrained space.
• Excellent Precision: Their unique orientation makes them quite rigid and this minimizes chances of tool deflection and workpiece movement. This ultimately results in precise machining operations.
• Cost-effective: They are universally considered as the budget-friendly machining centers. This is because acquiring them commands a comparatively lesser fee due to their simple design.
• User-friendly: In addition to being simply designed, you can also access essential components like the worktable easily. This makes it easier for you to set up and operate your VMC.

Horizontal Machining Centers Vs Vertical Machining Centers

These two machining inventions are continually becoming the go-to machining systems thanks to their precision and reliability. They however pack distinct features making them ideal for different applications. This table summarizes their principal differences.

Feature	Horizontal Machining Center	Vertical Machining Center
Spindle Alignment	Parallel to the worktable.	Perpendicular to the worktable.
Cutting Depth	Achieves deeper cuts.	Achieves shorter cuts.
Machining Accuracy	Relatively less accurate.	Extremely precise.
Tool Geometry	Utilizes short but robust tools since they handle heavy pieces.	Utilizes longer and slender tools, making them highly accurate.
Workpiece Size	Accommodates larger and heavy-duty workpieces.	Favors comparatively smaller and lighter workpieces.
Machinable Faces	Can machine numerous faces but may require additional setups.	Can easily machine multiple faces of your workpiece.
Cost	Are relatively highly-priced due to their sophisticated design.	Their simple design translates into lower prices.
Chip Evacuation	Extracting the accumulated chips is relatively more complicated.	Accumulated fragments are easily extracted due to gravity.

Vertical Machining Centers Common Application

Vertical machining centers are renowned and revered for their excellent machining precision. This makes them indispensable machines for the following applications;

• Medical device manufacturing
• Automotive Parts Machining
• Mold Making
• Aerospace Component Machining
• Electronic components manufacturing
• Die making
• Prototyping

Horizontal Machining Centers Applications

Horizontal machining centers remain the preferred machining solution for heavy-duty machining operations thanks to their robust machining tools. They are prominently exploited in:

• Heavy and large components Manufacturing: For example, construction equipment parts, engine blocks, and large molds.
• Complex geometry machining: 4-axis and 5-axis horizontal machining centers are used to perform complex machining operations like internal threading.
• Large-scale machining: The inclusion of double pallets makes them perfect for high-volume production of components.
• General Manufacturing: Their accuracy and high automation level have driven up their use in manufacturing industries to produce prototypes and consumer products.
