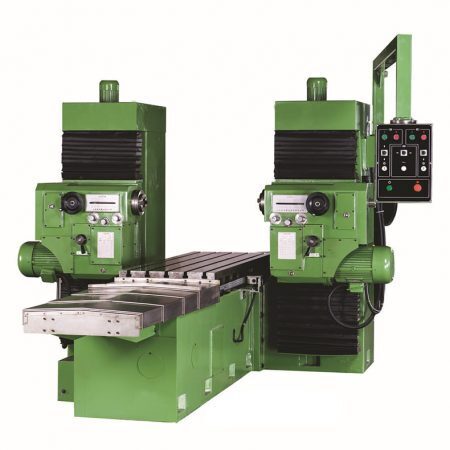

    Double-column Powerful Milling Machine DCM346

    On hover to room

    DCM346 plane milling machine with high rigidity, it can load heavy cutting, it is with high power spindle motor,and speed range is wide, can full play the cutting tool performance under high speed cutting.
    Machine has two feed axis, the X axis and Y axis direction.
    The bed uses dovetail guide way, column is with rectangular guide rail, the stability of machine is good.
    The feed of worktable is driven by two electromagnetic clutch’s action to achieve the normal feed and rapid feed.
    The main shaft sleeve is manual fine-tuning feed, travel is up to 160 mm, thus expanding the processing scope.



    Supply Ability:      200 Set/Sets per Month
    Port:                       Qingdao/Shanghai

    SPECIFICATIONS

    DCM346
    Worktable size L*W 1800mm×630mm
    Distance from spindle axis to table surface 50~700mm
    Distance from two spindle nose 480~800mm
    Distance from spindle axis to column guideway 160mm
    Travel of machine Travel of table 1800mm
    travel of headstock 650mm
    Spindle speed Step 16
    Range of speed 32-1000 r/min
    Number/width/distance of T-slot 5~22×125mm
    spindle taper ISO50
    table feed speed Step 12
    Range of feed 31~1100mm/min
    feed speed of headstock 232mm/min
    table rapid feed speed 3475mm/min
    motor power Main motor (one of 2 sets) 7.5KW
    table feed motor 2.2KW
    Lifting motor of worktable 1.1 KW
                 Max. load of worktable 2000Kg
    Overall dimension 4640mm×2700mm×2100mm
    weight 8500KG
