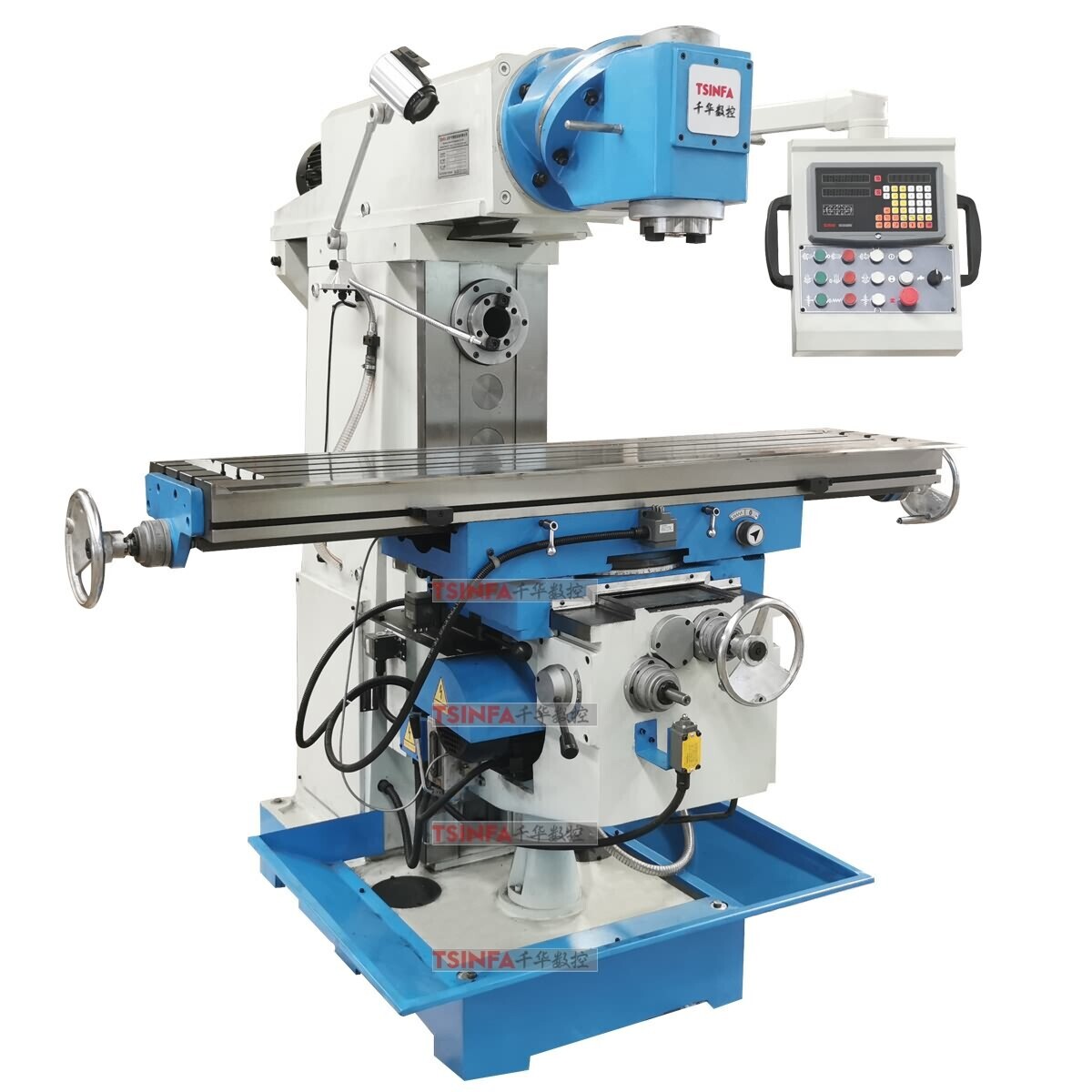

      Universal Milling Machine WN-736A

      On hover to room

      The machine can be used both for vertical milling and horizontal milling, with corresponding attachments, it can also mill various rotary surfaces and grooves, etc. Two-section revolving cutter head enables the spindle to revolve and adjust at any angle, and mill complicated parts with multi-angle and multi-face by one time of holding. It is the ideal machining equipment for the industries of mechanic manufacture, mould, automobiles and motorcycles.



      Supply Ability:      200 Set/Sets per Month
      Port:                       Qingdao/Shanghai

      SPECIFICATIONS

      SPECIFICATION UNIT WN736A
      Table size mm 1630X360
      Numbers,width distance between T – slot mm 3X18X80
      Max. longitudinal travel mm 900
      Max. cross travel mm 300
      Max. vertical travel mm 390
      Travel of Arm mm 600
      Vertical spindle to worktable mm /
      Horizontal spindle to worktable mm 0-390
      Swivel angle of the vertical milling head degree ±360°
      Max. rotary angle of table degree ±45°
      Distance from vertical spindle to column surface mm 360
      Distance from horizontal spindle to ram bottom mm 210
      Level spindle taper taper ISO50
      Milling head spindle taper taper ISO50
      level spindle speed grade steps 12
      level spindle speed range rpm 60-1800
      Milling Head spindle speed grade steps 12
      milling head spindle speed range rpm 60-1800
      Grade of the work-table feeds steps 6
      Range of feed speeds longitudinal,cross, vertical mm/min 30-630
      Speed of rapid travels longitudinal, cross, vertical mm/min 2000
      Milling head spindle drive motor kw 4
      level spindle drive motor kw 4
      Feed motor kw 1.5
      Coolant pump w 40
      Net weight /Gross weight kg 2388
      Overall dimensions(L W H) mm 1770X1830X1980
      Packing Size mm 1960X2080X2250

      STANDARD EQUIPMENT

      Milling head:
      The milling head is composed of two parts which are 45 degrees in angle. 45-degree angle design can offset the different direction of the machine tool processing more stable more scientific, more convenient. Lubrication with lubricating grease is convenient and durable. Can rotate independently of 360 degrees.
      Spindle part:
      Adopt forging, processing, tempering, quenching treatment. The material adopts 40CR strength and high durability. The use of P5-grade Harbin diagonal bearing precision high performance stability.

      Transmission:
      The gears are processed by heat treatment and fine grinding. High precision, durability, low noise, has 12 variable speed to meet the needs of different materials processing. And the gearbox can be moved back and forth so that the machining range of machine tool can be enlarged.

      Column Bed body part:
      The running part of ht250-300 cast iron is a large square rail which is higher than the tail type in rigidity and precision. And all use quenching treatment to achieve hrc40-50 between wear-resistant. can also be used in accordance with the needs of customers abroad wear-resistant plastic paste lightweight flexible and convenient. Horizontal shaft speed is usually up to 200 rpm to meet the processing needs. Can be used with brackets and horizontal milling cutter to process some groove and other processes of processing.

      Screw:
      Quality grinding screws, nuts for 10-1 tin bronze.

      Gear:
      grinding gear, surface hardening Treatment.

      Guide:
      The use of square rails, quenching treatment, strong rigidity, durable. The guide surface has been hardened to reach hrc38-42. The hardness of the worktable reaches between hrc40-50.

      ACCESSORIES

      Standard Accessories:

      No. Name Specification Quantity
      1 Milling machine with universal revolving cutter head 1
      2 Milling Chuck 7:24 ISO40(4、5、6、8、10、12、14、16) 1 set
      3 Socket spanner 5、6、8、10、12 Each one
      4 Horizontal milling hilt ISO40/Φ22  Φ27 Each one
      5 Draw bar 2
      6 Spanner S22-24 S17-19 Each one
      7 Machine vice 160 1
      8 Ground screw M16 4
      9 Nut and washer M16 Φ16 Each 4
      10 Operation manual 1
      11 Certificate of qualification 1
      12 Packing list 1

      Optional Accessories:

      Universal dividing head
      Rotary table
      DRO
      claming kit
