19 Types of Metal Forming Processes to Consider for Any Fabrication
Metal forming refers to various processes you can use to shape or manipulate materials. Depending on the type of formed part you want, it is vital to adopt a suitable technique.
In this article, we will cover 19 different operations you can use to fabricate your metal parts.
Let’s dive right in:

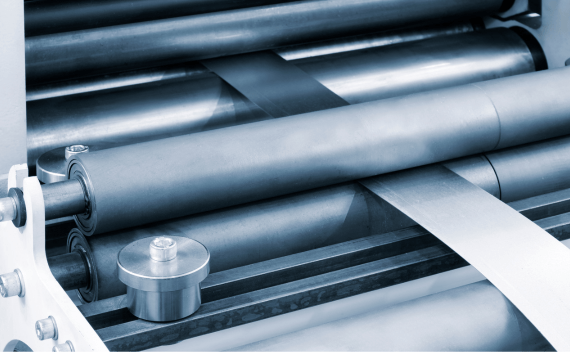

1. Rolling Metal
In the fabrication sector, rolling metal is among the most often used techniques. This procedure will be helpful particularly when dealing with sheet metal.
Rolling reduces thickness by passing metal stock between two rollers, therefore guaranteeing consistency and strength. Large-scale projects like manufacturing steel beams or aluminum sheets especially benefit from it.
Two primary metal forming examples exist here:
- Hot rolling and cold rolling – When dealing with metals at high temperatures, hot rolling is ideal as it makes them more readily and efficiently shaped. In contrast, cold rolling occurs at ambient temperature resulting in a smoother finish. For your project, both techniques are vital in guaranteeing the desired thickness and surface quality.

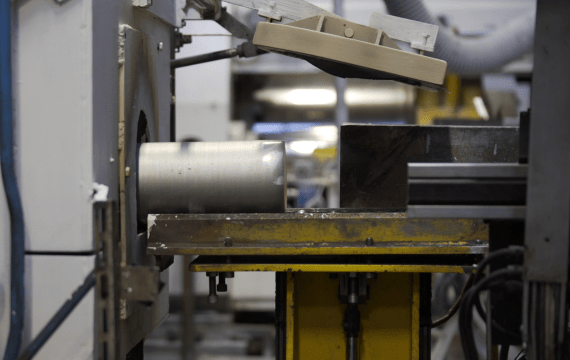

2. Metal Extrusion
Extrusion is another effective technique for forming metal, particularly for long, regular aluminium profiles. Consider squeezing toothpaste from a tube; that is exactly what you are doing with metal in extrusion.
Products ranging from pipes to rods or intricate cross-sections are produced by pushing or drawing the material through a die.
Extrusion comes mostly in two forms:
- Hot and cold – Hot extrusion makes it simpler to push through the die as it lets you deal with metals at high temperatures. On the other hand, by operating at room temperature, cold extrusion provides superior surface finish and strength. Extrusion can allow you to precisely accomplish complex shapes or basic profiles depending on your requirements.
3. Die Forming
Die forming turns into your preferred method when accuracy is paramount. Using metal between two dies, this technique shapes it by exerting pressure.
It will be particularly helpful for generating tight-tolerance complicated structures. Die forming guarantees consistency and precision whether you are creating sophisticated electronics or automobile parts.
Die forming can be categorized into deep drawing, embossing, and coining. Deep drawing lets you produce hollow, deep forms; embossing gives the metal surface elevated figures or patterns.
Coining is a precision stamping technique perfect for making coins or complex pieces. Depending on the complexity and needs of your project, every category presents you unique benefits.

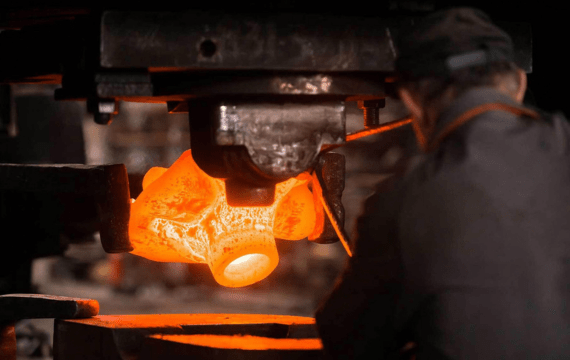

4. Forging Metal
Forging is one of the pioneering metalworking techniques and is still essential in contemporary fabrication. Usually using a hammer or press, you are simply exerting compressive force in molding metal. By improving its grain structure, forging strengthens the metal and is a great solution for pieces needing great durability.
You will run into open-die, closed-die, and impression-die forging among other forging techniques. While closed-die forging allows for more exact and complicated forms, open-die forging provides you more freedom in creating bigger parts.
For creating detailed features, however, impression-die forging is the best for you. Depending on the technique you decide on, forging may create anything from basic bars to sophisticated aircraft parts.
Depending on your metal fabrication process, you can choose hot forging press or cold forging press.

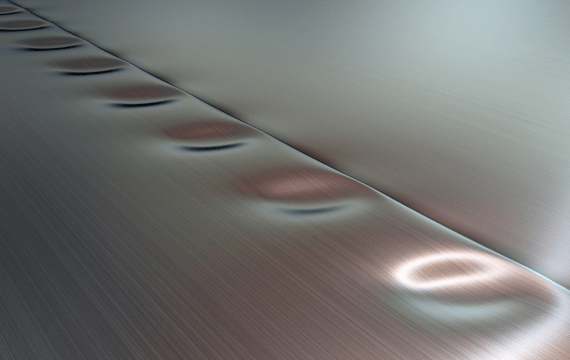

5. Indenting
Indenting is the simple technique where you just press a pattern or design into the metal surface. This technique will come in helpful when you want to give your workpiece texture or ornamental accents. The method produces an indented pattern by pressing a die with a raised pattern into the metal.
Making embossed panels, textured surfaces, or applying logos to metal objects often calls for this method. In addition to looks, indenting also improves grip or offers useful surface qualities. Indenting gives your creation a distinctive touch whether your work is on a practical component or a decorative one.

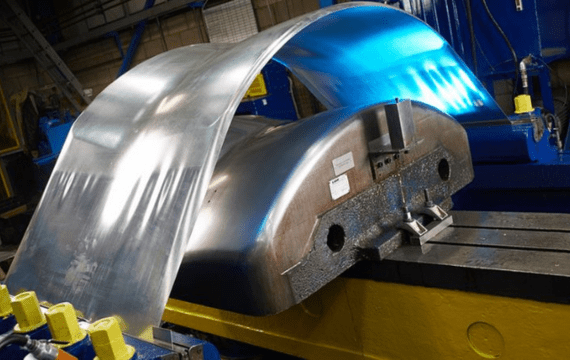

6. Stretching Metals
In metal forming, particularly when you must produce thin, elongated shapes, stretching is an indispensable operation. You will stretch metal sheets or plates usually using tensile forces, which draw the material to the intended length and thickness.
This method is routinely used in the aerospace and automotive sectors, where lightweight, robust materials are vital.
Stretching methods are numerous and include deep drawing and stretch forming. Deep drawing draws the metal into a die to create a hollow form while stretch forming clamps the metal and then stretches it over a die. Both methods are essential in guaranteeing you the precise thickness and form you need for your project.

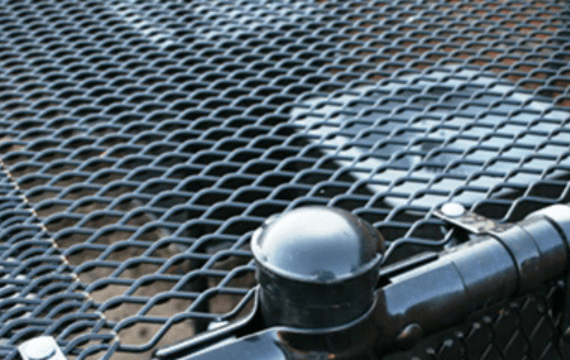

7. Expanding Metals
When you need to construct perforated or mesh-like structures, expanding metals is a technique you will especially find helpful. The method produces an extended design by making holes into the metal and then stretching it.
Common architectural uses for this method include filters, enclosures, and structures where airflow and light passage are critical.
Your project’s needs will determine the many expansion patterns you may choose. The most often occurring designs are circular, hexagonal, and diamond holes. Expanding metal is a flexible choice in both utilitarian and ornamental uses as it not only offers utility but also gives your production an attractive feature.
8. Recessing
You will resort to recessing when you must construct a sunken or recessed section in your metal workpiece. This method is helpful when you want to make practical or ornamental pockets, grooves, or channels, which may be either decorative or utilitarian. Recessing involves using a die to press or cut into the metal, creating the desired recessed shape.
Manufacturing parts requiring exact fits, such as housings, coverings, or enclosures, often call for this method. When you have to construct intricate forms that fit together perfectly, you will find recessing rather useful. Recessing gives your manufacturing depth and intricacy whether you are working on mechanical components or ornamental accents.

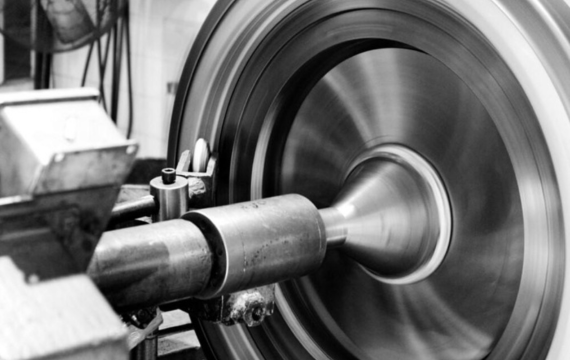

9. Metal Spinning
Metal spinning is a technique that lets you easily produce symmetrical, spherical objects. Picture working with metal instead of clay on a potter’s wheel. Applying pressure with a tool, you will spin the metal on a lathe progressively forming it into the desired shape.
Making objects like lampshades, cooking pans, and even rocket nose cones calls for this method.
In this method, you can do it by hand or for increased accuracy, you can utilize a CNC machine. Particularly when dealing with difficult shapes, hand spinning allows you greater control and freedom.
For large production runs, CNC spinning provides better precision and consistency, which makes it ideal. With minimum material loss, metal spinning is a quick method that lets you produce symmetrically perfect pieces.
10. Flange Forming
You will employ flange forming when you want to make a flange, or rim, around the edge of your metal workpiece. This procedure will be helpful in applications requiring a secure edge or joining of pieces together.
Flange forming entails bending or folding the metal along its edge to produce a flange that may be utilized for strengthening or fastening.
Flange forming may be accomplished by roll forming, press forming, and spinning among other techniques. For continuous flanges, roll forming is best while press forming lets you produce forms that are more intricate.
Round items may also have flanges formed through spinning, therefore providing further flexibility in the technique. For your fabrication requirements, flange shaping offers a strong, dependable edge whether your task involves pipelines, enclosures, or automobile components.
11. Drawing
One basic metal forming technique is drawing, in which metal is reduced in cross-sectional area by dragging it through a die.
This approach will be helpful when you must make precisely sized wires, rods, or tubes. With drawing, you can design components needing great strength and a good surface finish.
There are two primary categories of drawing:
- Deep drawing and wire drawing – Perfect for manufacturing wires and cables, wire drawing involves dragging the metal through a succession of dies to progressively narrow its diameter.

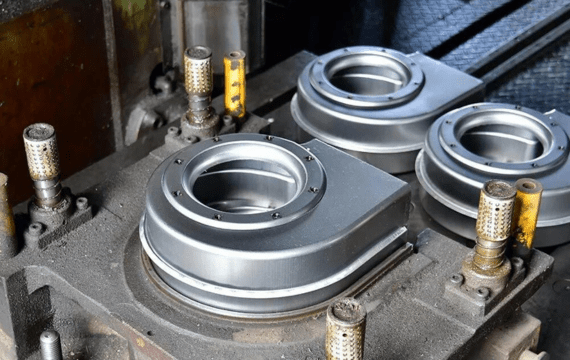

Conversely, deep drawing pulls the metal into a die so you may make hollow, deep forms. From electronics to automobiles, where strength and accuracy are vital, both methods are vital in many different sectors.

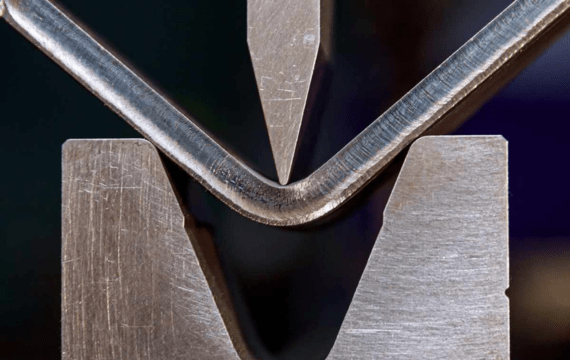

12. Bending
Bending is one the most important techniques in metal fabrication. Working with metal can frequently call for you to produce angles, curves, or intricate forms. When you think about bending metal, you are not just considering one approach.
There are many bending methods, each with special advantages reliant on the needs of your project.
· Air Bending
In this approach, you lay your metal workpiece on a die and push down a punch into the material. The punch leaves a little gap by not fully forcing the metal into the die.
This gap lets you produce a variety of angles as the depth of the punch will determine the angle range.
One of the key benefits of air bending is that the same die and punch combination allows you to get many bend angles. It is ideal when your types of metal forming operations call for flexibility.
· Bottoming
Should accuracy be your goal, bottoming is the method you should give some thought. Bottoming presses all the metal into the die, unlike air bending when there is a gap. This guarantees matching angle of the die with the bend angle. Bottoming is your first choice when working on a project requiring great consistency and precision.
· Coining
Coining is another accuracy-oriented bending method. This method ensures that the metal completely conforms to the shape of the die by applying an even greater force to it.
Coining drills the metal into the die so that the thickness of the material somewhat decreases at the bend. This approach is perfect for tasks where precision is critical because it offers rather tight tolerances.
· Roll Bending
Roll bending is the method you should think about when you need to produce big-radius bends or curves. Using a sequence of rollers, this technique progressively bends your metal workpiece to the required form.
Making tubes, pipes, or curved panels calls for roll bending. The procedure is especially beneficial in sectors like construction and transportation, where you typically require huge, curved metal pieces.
· Rotary Draw Bending
Working with tubes or pipes will find great use with rotary draw bending. This approach creates exact and tight bends by drawing the metal around a preset bend radius using a revolving die. Rotary draw bending is widely utilized in the plumbing, automotive, and aerospace sectors where precise bends in tubular components are needed.
· Mandrel Bending
Mandrel bending is a unique type of bending that falls under rotary draw bending. However, in this method, you put a mandrel, which is a solid rod or flexible support into the tube or pipe during the bending operation.
The mandrel keeps the metal from collapsing or creasing by supporting it from the inside. This form of bending is useful when dealing with either thin-walled tubes or when the bend radius is small.
· Wipe Bending
One simple yet powerful method is wipe bending, often called edge bending. This method bends the metal along the edge by a punch pushing it against a wiping die.
Applications where you must quickly generate basic, acute bends typically call for wipe bending. This is the standard method in sheet metal fabrication, especially for flanges, seams, or brackets.
· Folding
Folding is another bending method you will employ to produce clean, straight bends in sheet metal. The metal is clamped in this operation between a die and a punch, with the punch folding the metal in a straight line. Making box shapes, enclosures, or any item requiring a neat, exact bend will find folding helpful.
· Press Brake Bending
Among the most often used processes in metal fabrication is press brake bending. It uses a press brake machine to bend metal sheets or plates into certain angles or forms.
The machine applies force generating the desired bend by pressing the metal into a die through a punch. Press brake bending is particularly helpful for creating big, sophisticated pieces with reliable results.
· Three-Point Bending
When you have to generate regulated bends with exact angles, you might find three-point bending useful. In this procedure, the metal is supported at two locations while a punch generates force at a third point in the middle.
A bend results from the punch pressing the metal between the supports. Working with either heavier materials or when you need to achieve large-radius bends will make three-point bending helpful.

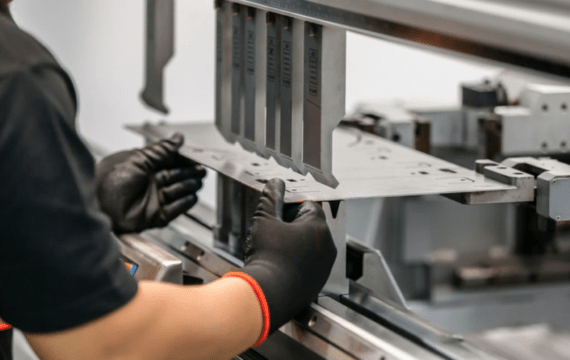

13. Shearing
When you have to cut metal sheets or plates with straight, clean edges, you will find shearing to be a handy technique. Like a pair of scissors cutting paper, the operation entails slicing through the metal with a shear blade.
Shearing is helpful more so when you are preparing metal for additional work such as bending, punching, and welding.
Guillotine shearing, slitting, and blanking are among the numerous forms of shearing. While slitting lets you make narrow strips from broader sheets, guillotine shearing is best for cutting huge sheets into smaller pieces.
On the other hand, perfect for mass manufacture, blanking involves cutting out unique shapes or sections from a metal sheet. An effective and exact technique, shearing guarantees accurate, clean cuts with little material loss.

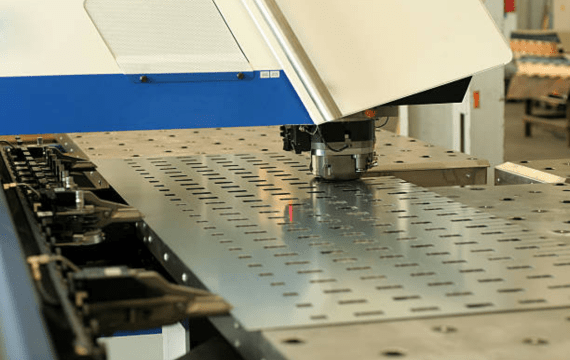

14. Punching
Using a punch and die, punching lets you produce holes or patterns in metal sheets. When you must create parts with exact holes or cutouts, like in automotive parts, enclosures, or brackets, you will find this method quite helpful. The technique entails punching through the metal to produce a hole whose shape complements the die.
Among the several punching styles you can employ are hydraulic press, CNC punching, single-punch, and multi-punch. Small-scale production or custom work would benefit from single-punch. Multi-punch lets you create several holes in one stroke, so improving efficiency.
The best accuracy and flexibility come from CNC punching, which will help you easily create intricate patterns and shapes. A quick and cheap approach, punching guarantees constant and excellent results every time.

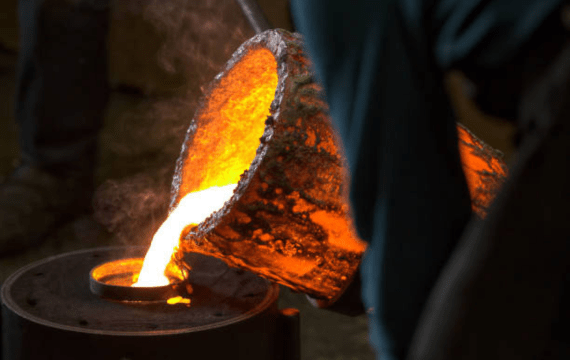

15. Casting
Casting is one of the earliest metal forming types, and is still extensively used today to produce intricate patterns and big parts. Casting is helpful especially when you must create components with complex details or hollow interiors.
The process entails pouring molten metal into a mold then letting it cool and harden into the intended form.
Among the several casting techniques to take into account are investment casting, die-casting, and sand casting. Large, heavy parts are best produced using sand casting and die-casting lets you create highly precise, smooth-surfaced components.
Investment casting, sometimes referred to as low-wax casting, lets you create finely detailed parts with little material waste. Casting is a flexible process that gives you the freedom to produce parts with intricate geometries and a large spectrum of sizes.
16. Ironing
Ironing is a metal forming technique that lets you produce consistent thickness in fabricating metal workpieces especially in deep-drawn parts. By smoothing out variances in thickness, it guarantees that your parts have a consistent, even wall. This process is especially important in sectors such as automotive and packaging, where uniformity and accuracy are vital.

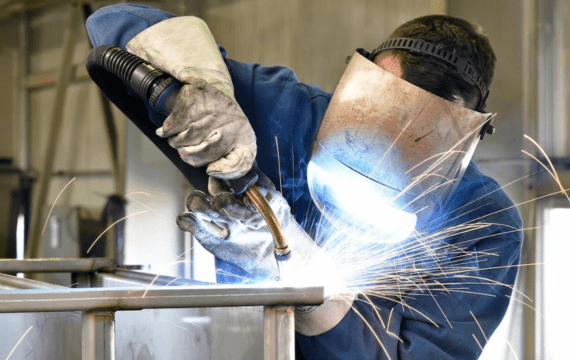

17. Welding
Depending on the materials and thicknesses you are dealing with, different welding procedures provide different degrees of strength, control, and accuracy.
· Arc Welding
When you need to weld a range of metals, from steel to aluminum, arc welding is one of the most often used techniques you will come across in metal fabrication. It employs an electric arc to provide the heat required to melt the metals at the junction. The procedure is simple; hence, it is a popular option.
· MIG Welding (Metal Inert Gas)
Another method you should give some thought is MIG welding, sometimes referred to as Gas Metal Arc Welding (GMAW), particularly if you require a quick and effective process. The electrode in MIG welding is a continuous wire feed heated by the arc and utilized to produce the weld. Typically, argon, an inert gas is used to guard the weld from atmospheric contamination.
· TIG Welding (Tungsten Inert Gas)
When precision is critical, you will resort to TIG welding, which is also known as Gas Tungsten Arc Welding (GTAW). The weld is created in this procedure from a non-consumable tungsten electrode. Like MIG welding, TIG welding shields the weld region from contamination using an inert gas, usually argon.
· Spot Welding
Another quite handy method is spot welding, particularly in relation to sheet metal. In this method, you press and heat a tiny section of the metal sheets to produce a weld at certain “spots.” The automobile sector makes extensive use of this technique since fast and effective joining of metal sheets is required here.
· Laser Welding
Laser welding is a high-precision method that melts and joins metals using a concentrated laser beam. When working on projects requiring exact, meticulous work, this approach will especially be helpful. The laser’s accuracy lets you produce welds with little heat distortion, as it is ideal for delicate or complicated objects.
· Flux-Cored Arc Welding (FCAW)
Flux-Cored Arc Welding (FCAW) is essentially like MIG welding with one important variation. In FCAW, you use a tubular wire packed with flux instead of a solid wire.
The shielding gas produced by this flux core shields the weld, therefore removing the necessity for outside gas supply. You will find FCAW especially helpful when operating outside or in windy settings where gas shielding could be troublesome.
· Oxy-Acetylene Welding (Gas Welding)
Also known as gas-welding, oxy-acetylene welding is a classic method you could find useful for your repair work or when welding thicker metals. This approach generates a flame hot enough to melt metals by mixing oxygen with acetylene gas. With the same tools, this flexible approach will let you cut, weld, and braze metals.
· Submerged Arc Welding (SAW)
Submerged arc welding (SAW) is a highly effective method you will probably come across in heavy industrial uses including ships, pipelines, and major structural components. In SAW, the arc is struck under a layer of finely tuned flux, shielding the weld from impurities and reducing spatter.
· Plasma Arc Welding (PAW)
Plasma arc welding (PAW) is one advanced method providing you exact control over the welding process. Although, with a limited arc, which offers more focus and energy, it is similar to TIG welding. This produces a more concentrated heat source that lets you weld with pinpoint precision.

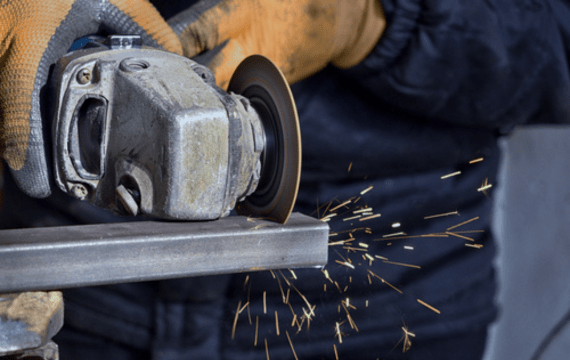

18. Cutting
Cutting is arguably the most basic and flexible techniques in metal fabrication. Cutting starts your project whether you are cutting sheet metal, trimming bars, or slicing through tubes.
Mechanical Cutting Techniques
All mechanical cutting techniques rely on force-based physical separation of the metal. Particularly when you need exact, clean cuts, these fundamental methods are highly effective.
· Sawing
Sawing is one of the most flexible cutting techniques you could have at hand. Sawing can accomplish the task whether your project calls for thin sheets or thick metal bars.
Among the several saws you could use are hacksaws, band saws, and circular saws. Depending on the material you are cutting and the required precision, every kind offers advantages.
Band saws are great when you are cutting straight or in curves, especially when dealing with thicker materials. Conversely, circular saws are ideal for quick manufacture since they provide high-speed cutting.
Smaller, more precise cuts usually call for hacksaws. Whichever saw you decide on, sawing lets you precisely and under control cut metal, therefore guaranteeing that your workpiece is precisely how you want it.
· Punching
Punching is a method you will probably employ when you have to create holes or cutouts in metal sheets. Pressing a punch through the metal creates a hole whose shape corresponds with that of the punch. Depending on the punch and die set you are using, you can punch round holes, square cutouts, or even complex forms.
Thermal Cutting Techniques
Thermal cutting techniques melt and split metal using heat. These methods are especially helpful when you must make intricate forms or cut over thick materials. Precision and adaptability provided by thermal cutting lets you easily create complex designs.
· Laser Cutting
Laser cutting is one of the most sophisticated cutting methods. This technique creates clean, sharp edges by melting and vaporizing the metal precisely along a powerful laser beam.
Laser cutting is perfect when you are working on complex designs or require great level of detail. Laser cutting makes it simple to cut complicated forms, etch designs, or create small holes.
· Plasma Cutting
For cutting through thick metal plates, you will discover great benefit from plasma cutting. This technique melts and blast away the metal along the cut line using a jet of hot plasma produced by ionizing gas. Plasma cutting is fast, effective, and able to cut through objects that would be challenging with other techniques.
· Oxy-Fuel Cutting
Still extensively used today, oxy-fuel cutting is among the first thermal cutting techniques. Usually, this method will help you cut across thick steel plates or other ferrous metals.
To produce a high-temperature flame that melts the metal, oxygen is mixed with a fuel gas, like acetylene. A stream of pure oxygen is pointed at the cut line once the metal achieves its ignition temperature, oxidizing and blowing away the molten metal.
· Waterjet Cutting
Waterjet cutting is a novel technique for cutting metal using a high-pressure jet of water, sometimes combined with an abrasive. This method is precise in cutting materials sensitive to temperature, such aluminum or titanium, and generates no heat.
Waterjet cutting lets you create complex patterns, flawless edges, and little material waste. This approach is ideal for tasks requiring both accuracy and material integrity since the absence of heat distortion guarantees your workpiece maintains its original qualities.
With its adaptability to a wide spectrum of materials and thicknesses, waterjet cutting is a flexible tool that will help you to address even the most difficult assignments.
· Electrical Discharge Machining (EDM)
Electrical Discharge Machining (EDM) is a special cutting method using electrical sparks to degrade the metal along the cut line. EDM will especially help when cutting hard metals, such as tool steel or titanium, where conventional techniques would fail. The workpiece is submerged in a dielectric fluid, then sparks produced by an electrically charged wire or electrode progressively cut through the metal.

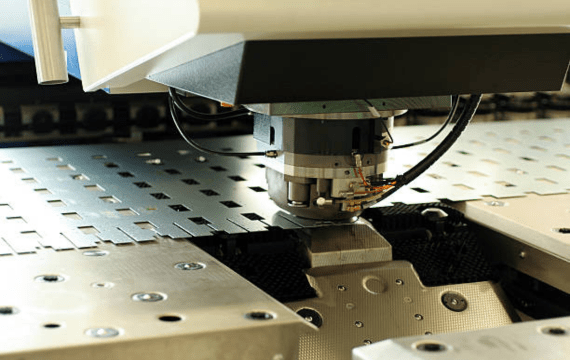

19. Stamping
Stamping is a metal forming technique you can use to design intricate forms, patterns, or text on metal sheets. Stamping helps in large production, where uniformity and efficiency are fundamental in forming metals. The technique involves pressing a die into the metal generating an elevated or sunken design that fits the form of the die.
Among the numerous stamping processes you might employ are coining, blanking, and embossing. While embossing produces raised designs or patterns, blanking cuts out patterns from the metal sheet.
On the other hand, coining is a precision stamping method perfect for producing fine features with precise tolerance. Stamping is a flexible and effective technique that lets you create flawless parts.
Conclusion
Metal forming processes are varied and flexible. Understanding the several procedures available will help you select the ideal one for your particular project requirements, therefore guaranteeing high-quality, accurate outcomes every time.
