Deep Drawing – The Complete Guide
Deep drawing is a metalworking process. It will be like taking a flat sheet of metal and forming it into a three-dimensional object. This operation entails a metal sheet being stretched over a die. With the punch, you push the metal into the die cavity. The metal goes through a plastic deformation. It is poured into the shape of the die. With this technique, you can create an array of shapes.
Advantages of Deep Drawing with Meaning

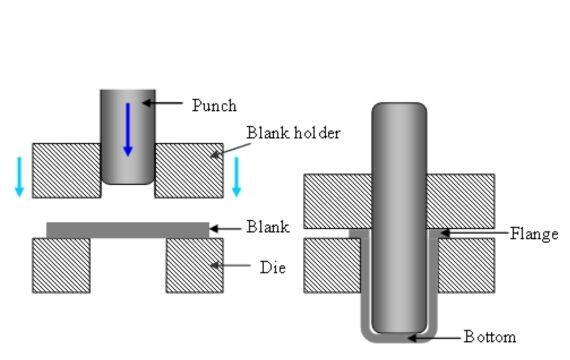

Deep Drawing Process
Down below are the key pros that you can harness using the deep drawing ideas:
Joint Free Formation: This technique permits the unproblematic shaping of metal sheets without joints or seam welding, which results in stronger parts.
High Production Efficiency: Thanks to its capability of quickly creating intricate forms, shallow drawing facilitates the fast mass production of parts, increasing total manufacturing efficiency.
Material Savings: Deep drawing optimizes material usage by eliminating waste, as it utilizes flat sheets in an effective manner, reducing scrap and cutting down on the cost of raw materials.
Improved Material Properties: Deep drawing examples, using plastic deformation, enhances the material’s mechanical characteristics, and it is therefore stronger and more durable.
Cost-Effectiveness: Compared with other methods, deep drawing is a time- and cost-effective manufacturing solution due to its productivity, material savings, and reduced labor requirements, translating into lower production costs.
Versatility: A variety of shapes and sizes can be created by deep drawing, which makes it applicable in almost all industries, such as automobiles and household appliance industries.
Consistency and Precision: Deep drawing guarantees uniformity and precision in parts dimension, delivering quality consistency on large production runs that reliably meet requested specifications.
Reduced Post-Processing Requirements: Directly plated parts generally involve less finishing or secondary operations and thus save time and resources in the manufacturing process.
Step-by-step Deep Drawing Process
The step by step deep drawing process includes the following steps:
Material Selection and Preparation: You pick the appropriate material by considering variables like intended properties and performance needs. The material is prepared by ensuring it meets specifications and has no apparent defects.
Blank Cutting: Using shearing or laser cutters, you form the selected material into blank shapes in accordance with the design requirements.
Blank Cleaning and Surface Preparation: You clean the blank to wipe off any pollutants or remains. Surface preparation includes degreasing or chemical treatment methods aimed at improving adhesion and thereby preventing defects.
Tooling Setup: You set up the die and punch assembly on the press perimeter by the part’s dimensions and specifications.
Lubrication: Lubricants can be applied to the blank and/or tooling surfaces to reduce friction. This improves material flow during the drawing process.
Loading the Blank: The blank is placed into the die cavity and ready for the drawing process.
Drawing Process: The press is tightened, which produces the force that presses the blank into the die cavity, thus forcing the material to deform and form the desired shape.
Trimming: The uncut excess material is trimmed from the final part to reach the desired dimensions and eliminate any irregularities.
Post-Forming Operations (Optional): The production may include hole punching, bending or welding as these are the technical requirements.
Quality Control: Various quality control methods are employed to measure the parts quality to satisfy the given production standards.

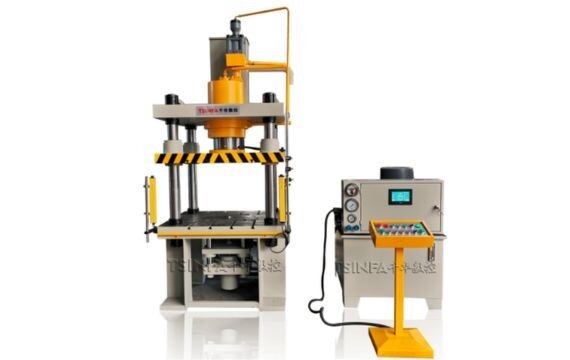

150 Ton Deep Drawing Machine
Compatible Materials for Deep Drawing
Get insights on the key compatible materials that you can use for deep drawing for sale and what adds to their suitability.
| Sr. No. | Material | Suitable for Deep Drawing? | Reasons for Suitability | Deep Drawing Speed (m/min) |
| 1 | Copper | Yes (Very Good) | High ductility, excellent formability, good work hardening resistance | 3.0 to 3.5 |
| 2 | Steel | Yes (Moderate) | Requires careful selection (low carbon content), good strength | 0.5 to 1.5 |
| 3 | Aluminum | Yes (Excellent) | Excellent flexibility, high formability, low forming force | 3.5 to 4.0 |
| 4 | Brass | Yes (Good) | Good elasticity, balance of strength and formability | 4.0 to 5.0 |
| 5 | Stainless Steel | Yes (Limited) | Requires careful selection (austenitic grades); work hardening can be an issue | 0.5 to 1.0 |
Factors Affecting Deep Drawing
Uncover the key factors that greatly influence the deep drawing process:
Material Properties: The material chosen determines the result of the deep drawing sheet metal. The materials featuring higher ductility including stainless steel and aluminum are the best choice. In contrast the Harder materials can lead to chipping, tearing, or cracking.
Material Thickness: Thinner materials deform more easily in deep drawing. Thicker materials may require a lot of force, resulting in damage, such as wrinkling or tearing.
Die and Punch Design: Die and punch design dictate the part to be drawn. Making sure there are smooth transitions and proper radii helps avoid defects and creates an appropriate forming.
Lubrication: Lube reduces friction between die and metal and overall formability and surface finish. In addition, it avoids galling and increases the life of the tool.
Blank Holder Pressure: Applying the correct quantity of pressure on the blank holder allows the material flow to be controlled and avoids wrinkling or tearing during deep drawing.
Draw Ratio: The draw ratio, the ratio of the final part diameter to that of the blank diameter, affects the severity of deformation. Higher flow ratios increase the risk of tearing and rupture.
Temperature: Different temperatures may result in changes in material flow and formability. A process of heating the material can thus reduce its tensile strength and improve its flexibility, making it easier to undergo deformation.
Surface Finish: A surface finish of the material and the closure of the tooling determine friction and material flow during deep drawing. Polished surfaces translate into lower friction and better surface quality of the part.
Alternatives of the Deep Drawing Process
There are alternative processes to the deep drawing process, such as:
Spinning: The metal/blank is rotated on a lathe. A tool presses it against a mandrel, making it take the desired shape.
Hydroforming: High liquid pressures can cause the metal to be inserted into a die cavity. In this way, you get complex shapes with minimum metal thickness.
Fabrication: You can weld, bend, or cut the sheets for proper assembly. This eventually adds up to the design flexibility and smooth production.
Defects of Deep Drawing: Key Causes and Preventive Measures
Deep drawing scraps can spoil both the quality and productivity of your production. Identification of the reasons and the application of preventive measures is necessary if you want to accomplish the desired outcome.
Wrinkling:
Causes: Sagging results from overstretching in some parts of the metal only.
Prevention: Use proper lubrication to decrease friction between the die and the metal. Optimization of the blank holder pressure to distribute the material equally.
Tearing:
Causes: Meanwhile, tearing occurs when the material is subjected to high tensile stress, resulting in cracks.
Prevention: Make sure to have the same material thickness all over the blank. Control the drawing speed to avoid a sudden surge of stress.
Springback:
Causes: Springback is caused by the elastic recovery of the material after the forming, which is reflected by dimensional changes.
Prevention: Apply appropriate tooling design to prevent material rebound. Use elastic modulus lower materials to minimize spring back effects.
Surface Imperfections:
Causes: You can experience surface finish defects because of improper lubrication, contamination of material or tooling flaws.
Prevention: Clean the surfaces of the tools and apply good lubricants. Routinely examine the dies to prevent the defects.
Thinning or Necking:
Causes: It develops due to the excessive stretching of material and reduced wall thickness.
Prevention: Adjust blank holder force for material feed control. The use of thicker starting blanks will help avoid inordinately thinning.
Cracking:
Causes: Cracking may be caused by material imperfections, too much deformation, or faulty die designs.
Prevention: Choose the materials with proper plasticity for deep drawing production. Make sure to have the right die radius to avoid stress concentrations.
Undercutting:
Causes: Undercutting occurs when the material moves against the die’s surface, resulting in deformation.
Prevention: Boost the blank holder’s pressure for material contact with the die. Reduce sliding by using an anti-friction coating.
Draw Marks
Causes: The unequal contact of the metal and the die surface can cause marks or die lines.
Prevention: Apply uniform lubrication to eliminate pauses in material flow. Change the blank holder pressure for accurate material contact.
Difference Between Drawing and Deep Drawing
If the depth of that bowl is greater than the radius of the initial blank, it means the metal has been deformed a long way. Thats why the process is called deep drawing.
Deep Drawing vs Stamping
- Deep drawing is a sheet metal forming process that produces high dimensional accuracy and a smooth surface finish.
- Stamping is made by striking a sheet of metal with a die to form the desired shape.
Applications of Deep Drawing

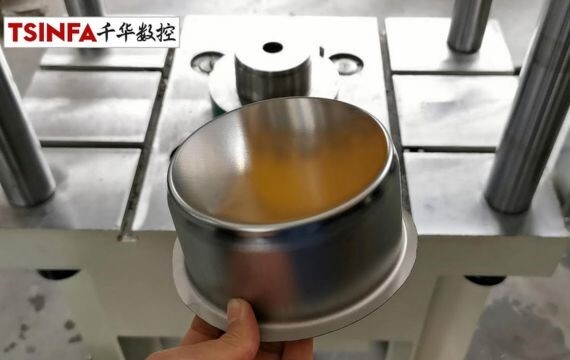

Deep Drawn Parts
The main application areas of the deep drawing include:
Automotive Industry: Deep drawing produces car body panels and engine components, which add to vehicle durability and precise manufacturing.
Appliances: In deep drawing, metal parts form appliances such as refrigerators and washing machines to enhance reliability and performance.
Electronics: Deep drawing makes metal covers for electronic devices, guaranteeing safety and attractiveness in consumer electronics.
Cookware and Kitchenware: The deep-drawing mold plates, pans, and utensils produce strong, heat-resistant kitchen items.
Medical Devices: Deep drawing makes parts for medical equipment and implants, thus achieving reliability and cleanliness in healthcare facilities.
Aerospace: Deep drawing makes tailor-made parts for aerospace structures and systems; thus, lightweight and high-performance aerospace parts are ensured.
Packaging: Systems of deep drawing produce food and beverage metal containers and lids that will be fresh and convenient for storing , filling and transporting.
Construction: Metal deep drawing is often used to fabricate construction materials to strengthen and stabilize building structures.
Consumer Goods: Deep drawing is the process by which a wide variety of consumer products are developed, ensuring they are practical and pleasing to the eyes.
Defense and Military: The forming process of deep drawing manufactures parts for armaments, vehicles, and gears, enhancing precision and reliability in defense requirements.
