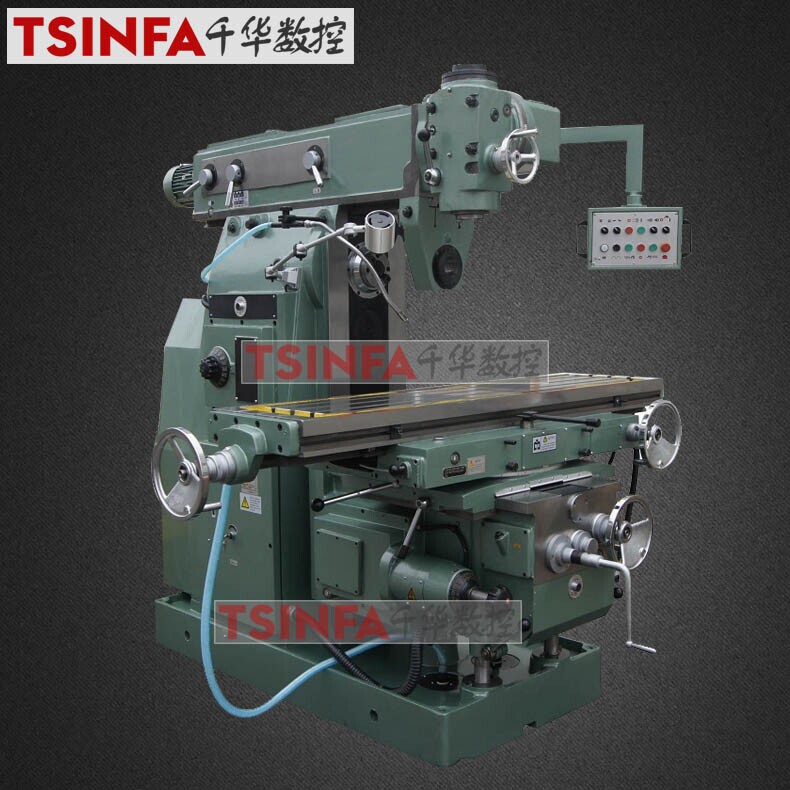

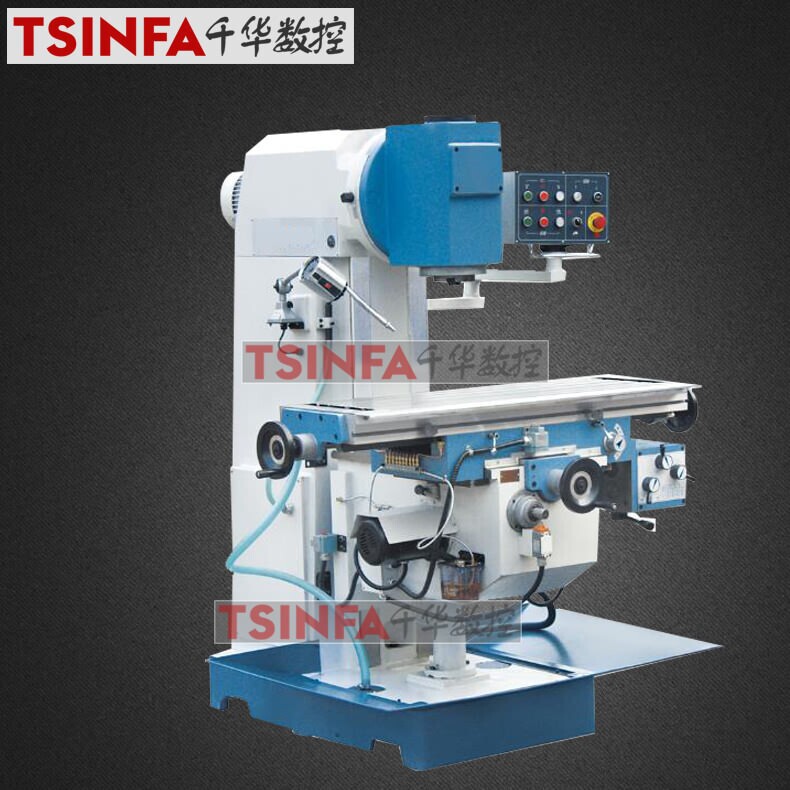

      Universal Vertical Milling Machine

      Vertical knee-type milling machine is a general purpose machine which can be used in wide range. Mounted with face, cylindrical, side, bevel and formed milling cutters, the machine is suitable to process flat, inclined surface, slots and gears on miscellaneous work pieces. Equipped with optional accessories, such as rotary table and dividing head, machine can be applicable to versatile processing. It is an ideal machine tool for machining process, maintenance, instrument, die and moulds.

      Machine Characteristics

      ● Hardened and ground slide ways ensure high accuracy.
      ● With high motor power and wide range speed, machine adapts to high speed cutting when using hard alloy cutters.
      ● With gear transmission in machine body and lifting platform, the machine is rigid enough to bear heavy duty processing.
      ● Complete coolant and lubrication system.
      ● DRO equipment is optional.
      ● Head swivel 360 degreesQuestions? Give us a call at +86-15318444939, and talk to one of our expert reps. You can also fill out our contact form.

      Table size(mm): 1250*360
      Table travel(mm): 400*600*320
      Main motor (kw): 4kw
      Max. rotary angle of table: 45°

      Supply Ability:      200 Set/Sets per Month
      Port:                       Qingdao/Shanghai

      Table size(mm): 1320*320 1800*420
      Table travel(mm): 800*300*410 1200*360*470
      Main motor (kw): 7.5/11kw
      Max. rotary angle of table: 45°

      Supply Ability:      200 Set/Sets per Month
      Port:                       Qingdao/Shanghai

      Table size(mm): 1320*320 / 1700*400
      Table travel(mm): 700*255*370 / 900*315*385
      Main motor (kw): 7.5/11kw
      Max. rotary angle of table: 45°

      Supply Ability:      200 Set/Sets per Month
      Port:                       Qingdao/Shanghai

      Table size(mm): 2000*425
      Table travel(mm): 1200*410*450
      Main motor (kw): 11kw
      Max. rotary angle of table: 45°

      Supply Ability:      200 Set/Sets per Month
      Port:                       Qingdao/Shanghai

      Table size(mm): 1600*320
      Main motor (kw): 7.5kw
      Swivel angle at swivel head: ±360°
      Max. rotary angle of table: 45°

      Supply Ability:      200 Set/Sets per Month
      Port:                       Qingdao/Shanghai

      Table size(mm): 1630*360
      Main motor (kw): 4kw
      Swivel angle at swivel head: ±360°
      Max. rotary angle of table: 45°

      Supply Ability:      200 Set/Sets per Month
      Port:                       Qingdao/Shanghai

      Table size(mm):1250*360
      Main motor (kw):2.2kw
      Swivel angle at awivel head: ±360°
      Max. rotary angle of table: 45°

      Supply Ability:      200 Set/Sets per Month
      Port:                       Qingdao/Shanghai

      Table size(mm): 1270*260
      Main motor (kw): 3kw
      Swivel angle at swivel head: ±360°
      Max. rotary angle of table: —

      Supply Ability:      200 Set/Sets per Month
      Port:                       Qingdao/Shanghai

      Table size(mm): 1120*260
      Main motor (kw): 2.2kw
      Swivel angle at swivel head: ±360°
      Max. rotary angle of table: —

      Supply Ability:      200 Set/Sets per Month
      Port:                       Qingdao/Shanghai

      Table size(mm): 1250*320
      Main motor (kw): 3kw
      Swivel angle at swivel head: ±360°
      Max. rotary angle of table: ±45°

      Supply Ability:      200 Set/Sets per Month
      Port:                       Qingdao/Shanghai
