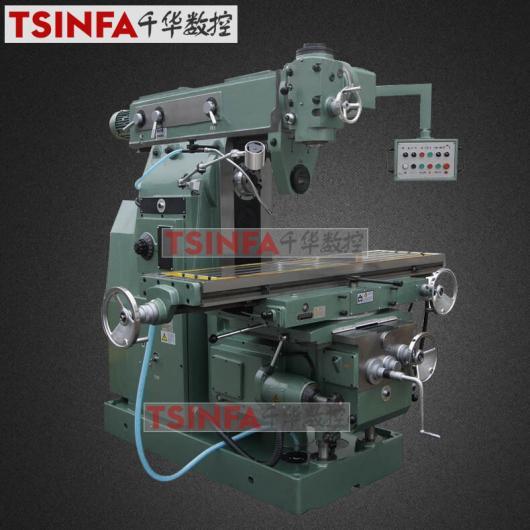

Universal Vertical & Horizontal Milling VH232
SPECIFICATIONS
| V232 | V242 | |
| Table size | 320×1320 mm | 420×1800 mm |
| Numbers,width distance between T – slot | 3×18×80 mm | 3×18×90 mm |
| Max. overload | 500 Kg | 800 Kg |
| Max. longitudinal travel: X | 800/780 mm | 1200/1180 mm |
| Max. cross travel: Y | 300/280 mm | 360/350 mm |
| Max. vertical travel: Z | 410/400 mm | 470/450 mm |
| Swivel angle of the vertical milling head | ±45° | ±45° |
| Level spindle taper | 7:24:00/ISO50# | 7:24:00/ISO50# |
| Level spindle bore | Φ29 mm | Ø29 mm |
| Distance from horizontal spindle to worktable | 30～440 mm | 30～500 mm |
| Distance from horizontal spindle to ram bottom | 155 mm | 201 mm |
| Horizontal milling spindle front bearing diameter Dia | Φ100 mm | Ø100 mm |
| Milling head spindle taper | 7:24/ISO40# | 7:24/ISO40# |
| Vertical spindle bore | Φ20 mm | Ø20 mm |
| Distance from vertical spindle nose to horizontal spindle center | 15～95 mm | 60～140 mm |
| vertical milling spindle front bearing diameter Dia | Φ95 mm | Ø95 mm |
| Distance of Vertical milling spindle vertical movement | 80 mm | 80 mm |
| Swivel angle of the vertical milling head | 360° | 360° |
| Level spindle speed grade | 18 steps | 18 steps |
| Level spindle speed range | 30～1500 rpm | 30～1500 rpm |
| Level spindle speed grade | 12 steps | 12 steps |
| Level spindle speed range | 52～1400 rpm | 52～1400 rpm |
| Grade of the work-table feeds | 18 steps | 18 steps |
| Range of feed speeds: X | 15～750 mm/min | 22～1100 mm/min |
| Range of feed speeds: Y | 15～750 mm/min | 22～1100 mm/min |
| Range of feed speeds: Z | 5.7～280 mm/min | 8.3～410 mm/min |
| Speed of rapid travels: X | 2250 mm/min | 2400 mm/min |
| Speed of rapid travels: Y | 2250 mm/min | 2400 mm/min |
| Speed of rapid travels: Z | 844 mm/min | 900 mm/min |
| Main drive motor | 7.5 Kw | 11 Kw |
| Main motor speed | 960 rpm | 960 rpm |
| Feed motor | 1.5 Kw | 3 Kw |
| Feed motor speed | 960 rpm | 1420 rpm |
| Coolant pump | 0.12 Kw | 0.12 Kw |
| Coolant pump speed | 2760 L/min | 2760 L/min |
| Milling head motor power | 3 Kw | 3 Kw |
| Milling head motor speed | 1420 rpm | 1420 rpm |
| Overall dimensions(L W H) | 2327×1792×2000 mm | 2522×2262×2210 mm |
| Packing Size | 3500 Kg | 5300 Kg |
