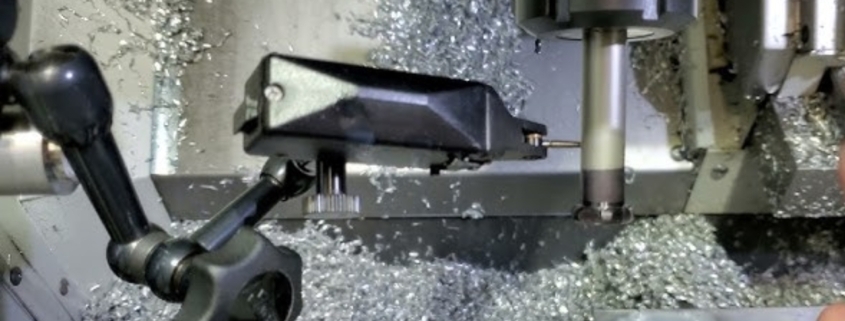

How to Find Centerline on a CNC Lathe

It is important to find a CNC lathe’s centerline when handling precision manufacturing. If you’re creating a brand new tool or you simply want to align your workpiece with accurate centering, you can achieve the best performance. Here, we will be discussing the best methods for locating the centerline on the CNC lathe as well as improving the overall efficiency of the machining process.

What is a Centerline in a CNC Lathe Operation?

Having a good understanding of the centerline is very important for preventing offsets, assembling tools, and ensuring that symmetry is maintained during machining. When you align the tool properly with the centerline, this reduces the cutting errors and helps to achieve uniform removal of the material.

Furthermore, operators make use of different methods such as test cuts, dial indicators, for verifying alignment. Wrong centerline positioning could result in low-quality surface finish, tool wear, and dimensional accuracies. Understanding centerline alignment will not just enhance the quality of machining just also help to improve the efficiency and extend the life of the tool.

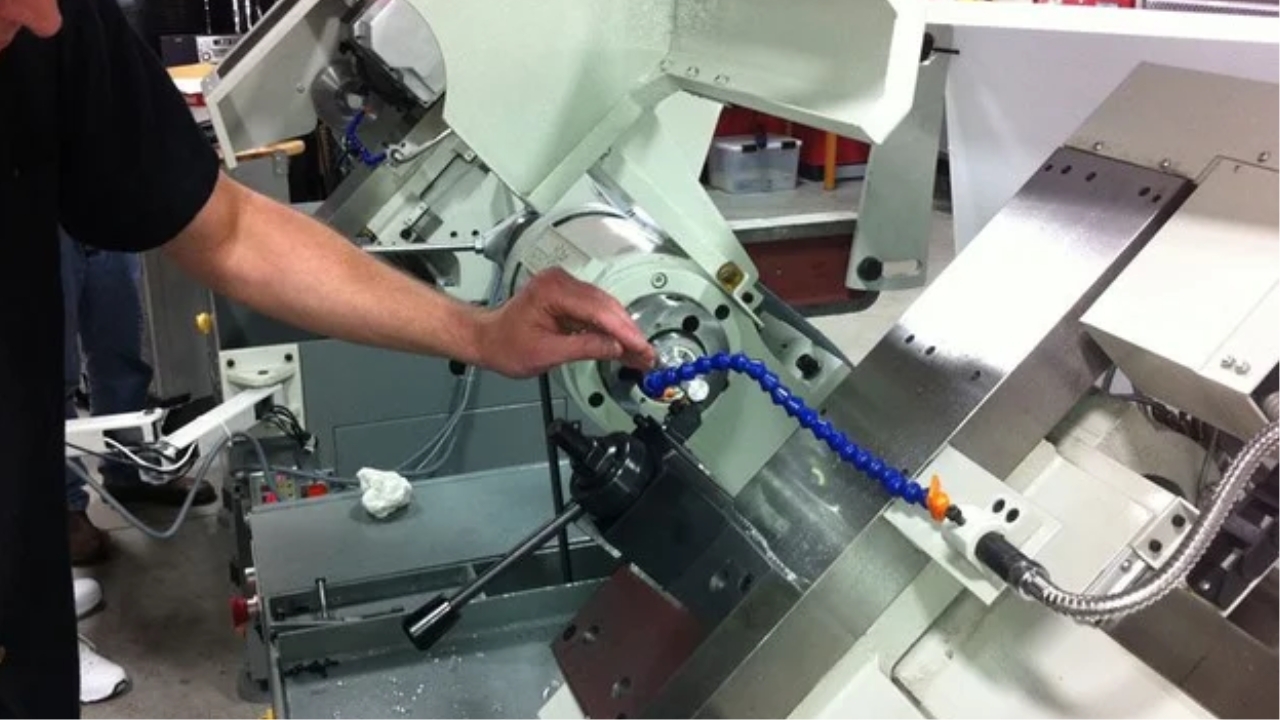

Methods for Identifying the Centerline on a CNC Lathe

It is quite easy to find the Centerline on your CNC lathe if you follow the necessary steps. Generally, there are four common methods to do this. We will be discussing each of these methods below.

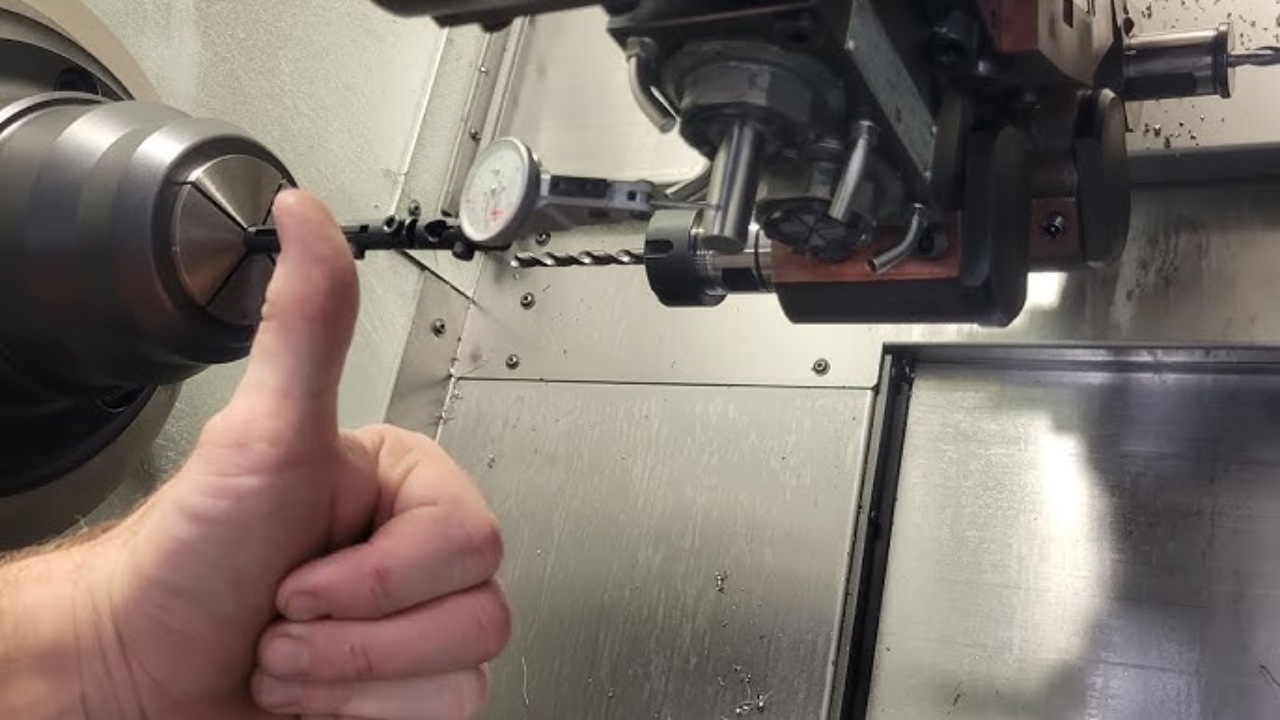

Use a dial indicator

This is a reliable technique that helps you identify the Centerline of your CNC lathe. With a dial indicator, you can check if the alignment is correct and adjust when necessary. Follow these steps when using a dial indicator

Position the workpiece properly: Place your workpiece on the collet or chuck of the machine. Your workpiece must be secure to ensure proper alignment.
Fix your dial indicator: It is time to attach the dial indicator to a magnetic base. In this case, you will be placing the tip of the indicator against your workpiece.
Rotate the spindle manually: Use your hand to rotate the spindle slowly. While doing this, ensure you observe the movement of the dial indicator. If you notice any movement in the needle, your workpiece is off-center.
Adjust your workpiece: Make necessary adjustments on your workpiece until you notice minimal movement on your dial indicator. This movement shows that the centerline is well aligned.

A dial indicator is a trusted method that helps you achieve precise alignment.

Test Cut and Diameter Measurement

This is another reliable method that helps you determine your centerline. A simple test cut and diameter measurement helps you make quick adjustments where necessary.

You need to set up your workpiece and tool in the right position. Load your cutting tool in your tool holder and mount the workpiece on the lathe.
Make a light cut from your workpiece to get a small amount of material.
Measure the diameter of the cut-out material using a micrometer or calipers

If the diameter you measured doesn’t align with the required size, adjust the height of the tool. This is because high tools can cut more on the workpiece’s top. Also, too low will cut more material on the bottom. Keep doing the test cuts until you get the right centerline. This is an effective method because it is similar to real machining conditions, whereby you need to position the tool properly to get accurate cuts.

Touch-Off Method

This is a very quick and reliable method to discover the centerline. You need a gauge block or a tool setter to accomplish this. Some machinists love this method since it offers accurate results with less effort. You need to do the following to make it work:

Position the gauge block or tool setter on the bed or post of the lathe’s tool.
Ensure you place the cutting tool touches the surface of the tool setter
Take note of the digital readout of the machine or you can mark the position of the tool with your hands.
Use the recorded or marked position to adjust the height of the tool until there is perfect alignment with the centerline.

This is a great method for cases where you need to adjust tool heights frequently. So, you can use it for quick measurements as it reduces the time used for setup.

Probe Method

If your CNC lathe has a probe, you can easily fix the centerline. Probes are even easier and more precise, they aren’t just really available.

The probing systems that come with CNC lathes align the centerline automatically. This helps to minimize human errors and ensure consistency. If you want to align your centerline with a probe, do it this way:

Calibrate the probe and ensure it is functioning well.
Place your workpiece in the collet or chuck
Start the probing cycle in the control unit of the CNC machine. While doing this, the probe will touch various points on your workpiece and automatically calculate the centerline.
Adjust the tool path if necessary. Although the CNC machine will automatically adjust the tool path, you can use the interface if the machine to make manual corrections if needed.

Probing systems are the most accurate method to use. This method minimizes errors and setup time. They are an ideal choice for high-precision machining applications where consistency is crucial.

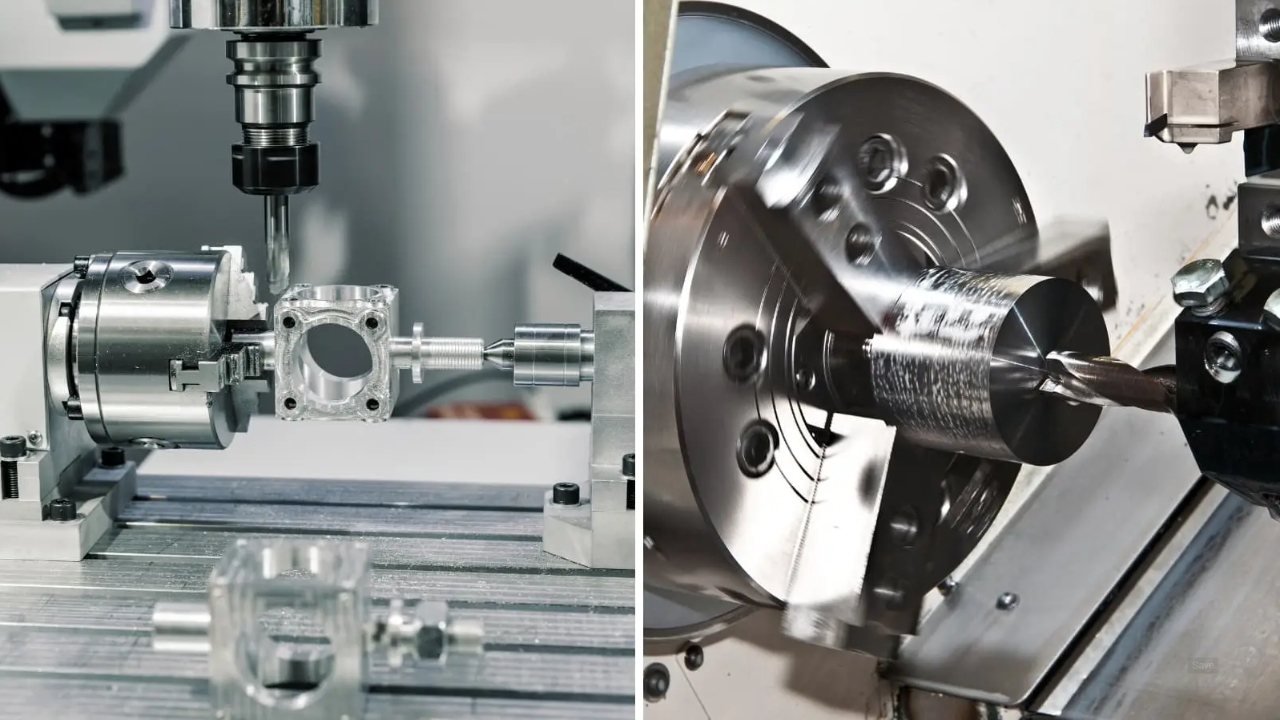

How to Set Tool Offsets in CNC Control

If you want to achieve precise machining, you need to set tool offsets correctly in the CNC control. Correct offsets minimizes error and ensures efficiency.

Here are steps on how to set tool offsets

Place your tools into the turret and bring it towards your workpiece.
Use any of the methods we discussed above to identify the exact location of the tool. You use a dial indicator, a probe, or any other preferred method.
Input the values you measured in the CNC control under the section of the tool offset table.
If you are working with length offsets, Ensure the tool touches a reference surface and keep track of the z-axis value.
To set diameter offsets, use a test cut and take a measurement of the exact cut diameter. You can make adjustments when necessary.

The machine can ensure accurate results by adjusting for tool wear. After you have set offsets, make sure you carry out a test program to confirm alignment and correct errors. It is important you ensure a perfect tool offset to achieve precision during CNC machining operations.

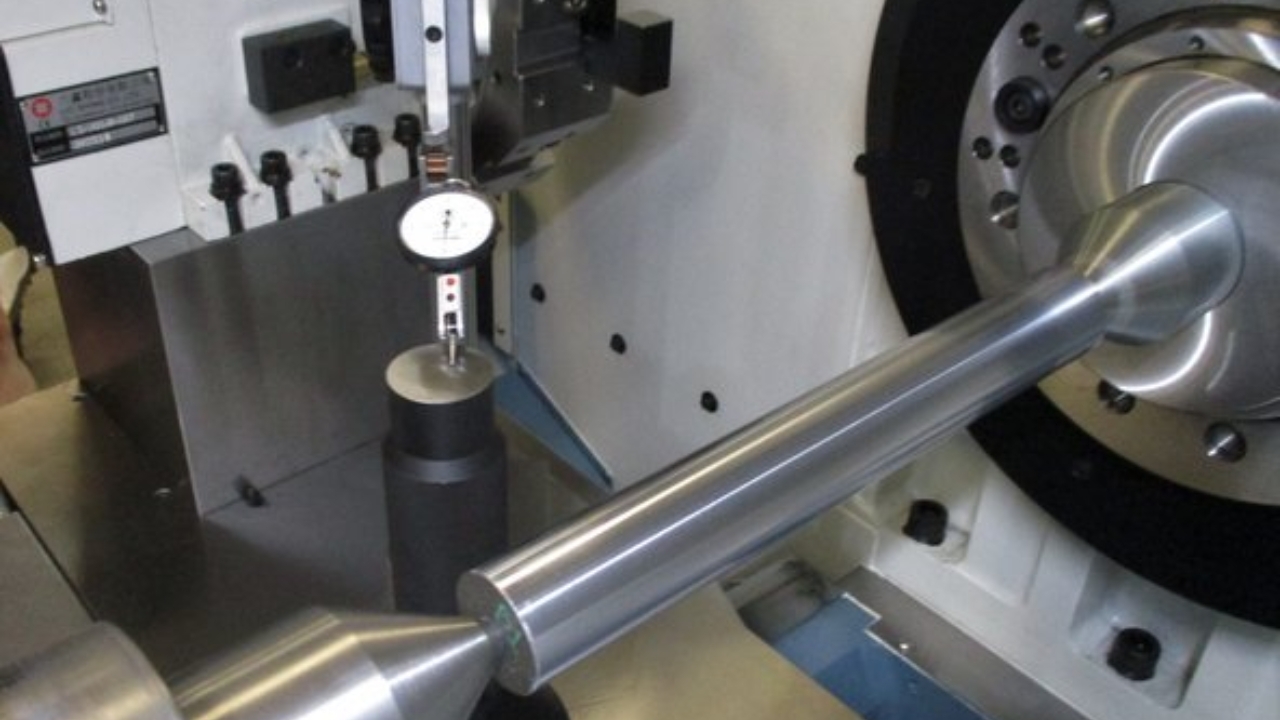

Common Errors You Should Avoid

Errors can occur when determining the centerline of your CNC lathe. However, you can prevent these errors from occurring if you pay attention to certain things.

One of the most common errors that lead to improper tool offsets is misinterpreting measurements. A slight misreading can cause poor part quality and inaccurate dimensions.

Failure to compensate for the radius of the tool top is another common issue. This usually affects the cutting precision and can lead to inaccurate dimensions.

Forgetting to verify the centerline after you have set it is also another error. Ensure you carry out test cuts or confirm alignment with measurement tools.

Paying attention to certain things will help you avoid these errors and maintain precision.

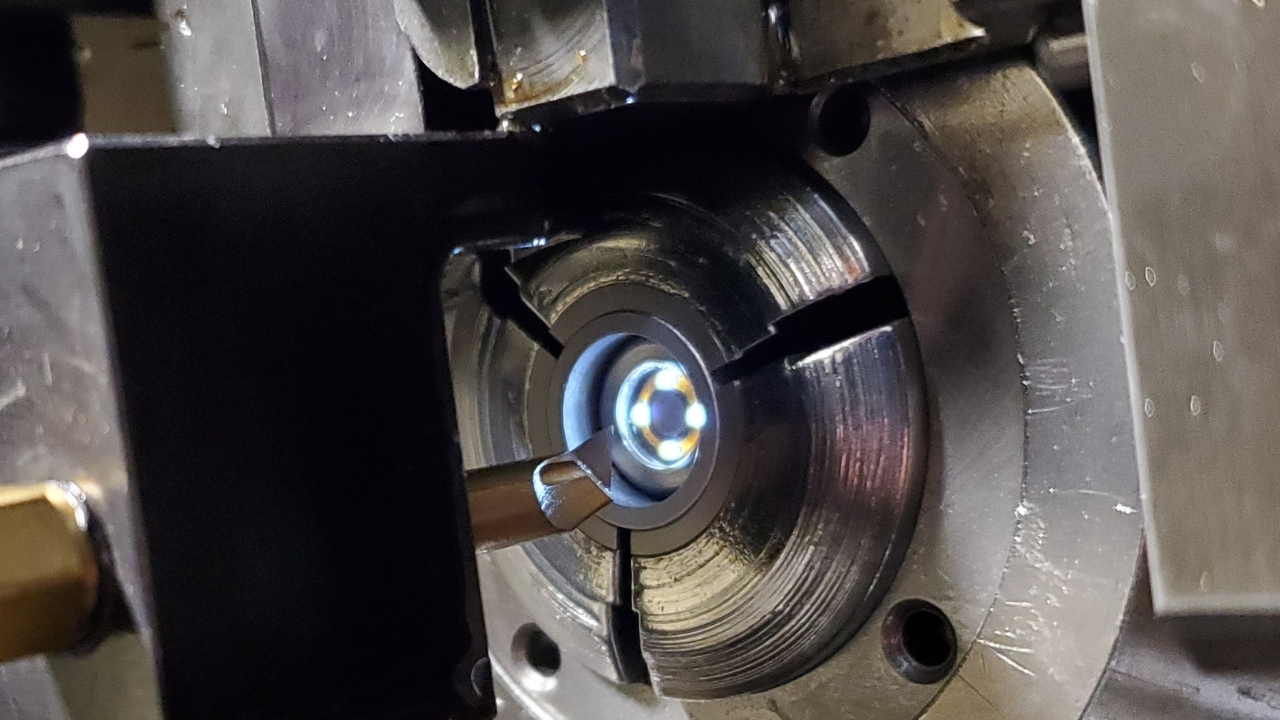

Conclusion

To achieve a precise machining process, determining the centerline of a CNC lathe is very crucial. Regardless of the method you use, ensure you follow the necessary steps. Each method has its own benefits. However, the required accuracy and the availability of equipment determine the best method to opt for.
