How to Calculate Speed and Feed for CNC Lathe
CNC lathes are machine tools which are automated to rotate a specific workpiece cutting it using some accurate tools. You can use them for modern machining when creating high-quality and accurate parts and efficiently. These features are necessary for achieving higher speed, less human error, and repeatability, which makes them important for manufacturing, automotive, and aerospace industries.
What are the Basics?
Cutting Speed
This is the rate of the movement of a cutting tool in relation to the workpiece. The unit of measurement for cutting speed is meters per minute. Cutting speed is an important parameter that impacts surface finish and tool lifespan. The machining condition, material type, and tool type determine the cutting speed.
Feed Rate
This parameter measures the distance at which the cutting tool progresses at every revolution of your workpiece. Feed rate’s measurement is inches per revolution (IPR) or millimeters per revolution (mm/rev). Feed rate affects the machining time and smoothness of surface finish. You should choose the appropriate feed rate for perfect machining outcome.

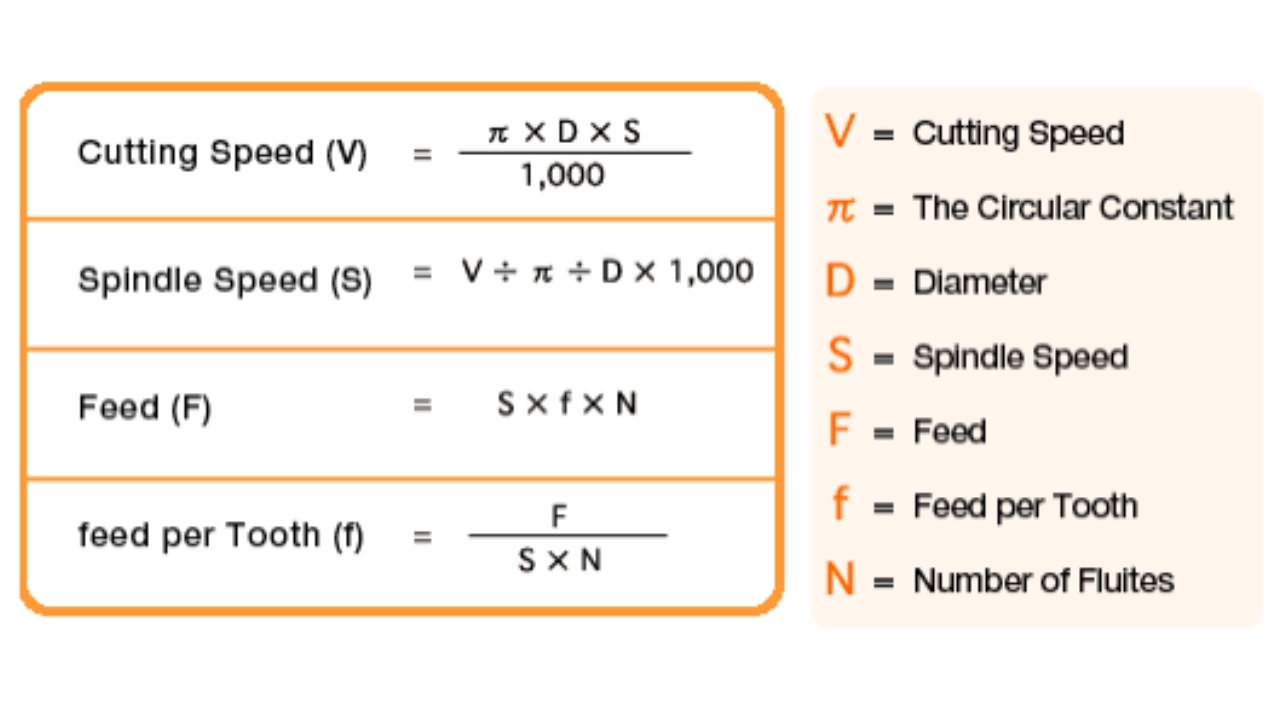

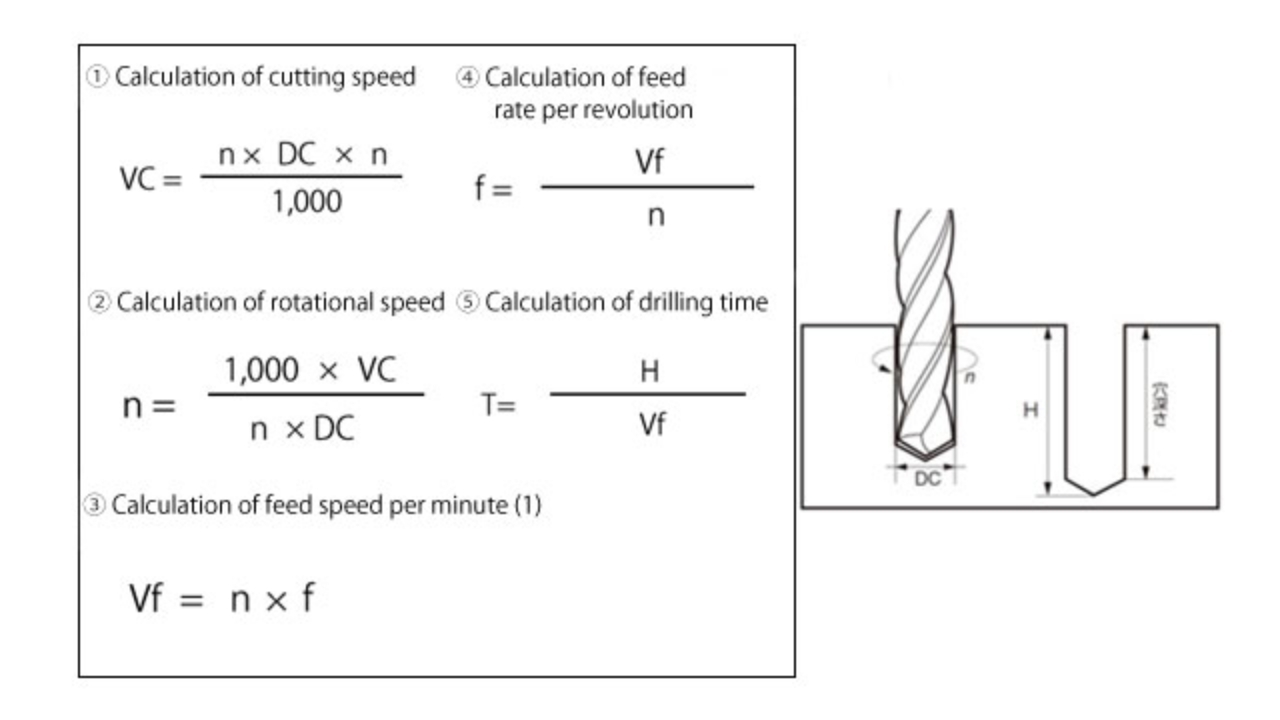

What are the Formulas for Calculating Speed and Feed?
During machining, it is important to determine the feed and speed accurately to ensure surface finishes of high quality, longevity of tools, and efficiency. With accurate calculations, you can optimize your cutting efficiency, as well as prevent material damage or wear of tools. Here are some important formulas that help to calculate the spindle speed as well as feed rate of the entire machining process.
Calculating the Spindle Speed
The usual measurement for spindle speed is in RPM (revolutions per minute) and this tells how quick the workpiece or cutting tool rotates when machining is ongoing. This is dependent on the material’s cutting speed as well as the tool’s diameter. The spindle speed’s formula is given as:
RPM = (V X 1000) / π×D
- RPM indicates the speed of the spindle in revolutions per minute
- D indicates the diameter of the cutting tool or workpiece in inches (in) or millimeters (mm)
- V indicates the speed of cutting in m/min (meters per minute) or in SFM (surface feet per minute)
- π is approximately 3.14
However, when handling metric calculations, this formula becomes:
RPM = (V x 1000) / π×D
While for imperial units, it is: RPM = (12 x V) / π×D
For example, if a workpiece’s cutting speed is 200 m/min, and the diameter of the tool denoted as D stands at 40 mm, then the RPM is calculated as:
RPM = (1000 x 200) / π × 40
RPM = 200000 / 125.68 = 1591.34
Calculating the Feed Rate
With the feed rate, you can determine the speed of the cutting tool as it moves along your workpiece while machining is ongoing. This affects the chip formation, tool wear, and surface finish. The feed rate formula could vary depending on the machining process you’re working with – either milling or turning.
Formula for Turning Feed Rate
During turning operations, you can calculate the feed rate using the following:
F = RPM x f
Here:
- F denotes feed rate measured in mm/min (millimeters per minute or in IPM (inches per minute)
- RPM denotes the speed of the spindle in revolutions per minute
- f indicates the feed per revolution (in/rev or mm/rev)
For example, if the speed of the spindle stands at 635 RPM, and the feed for every revolution is 0.5 mm per revolution, then:
F = 635 x 0.5
F = 317.5 mm/min
Therefore, you should set the feed rate to 317.5 mm/min
Formula for Milling Feed Rate
When handling milling operations, the feed rate has to do with the number of teeth or cutting edges present on the tool. The formula is:
F = RPM x fz x Z
Whereby:
- F means the feed rate (measured in in/min or mm/min)
- f_z is the feed per tooth (measured in in/tooth or mm/tooth)
- RPM is the speed of the spindle
- Z is the number of flutes or teeth on your milling cutter.
For example, if the speed of the spindle stands at 700 RPM, and 0.2 mm/tooth is the feed per tooth, while the cutter features 4 teeth, this means that:
F = 700 x 0.2 x 4
F = 560 mm/min
Therefore, you should set the milling feed rate at 320 mm/min
The formulas are important for the optimization of machining performance as well as achieving accuracy during manufacturing.

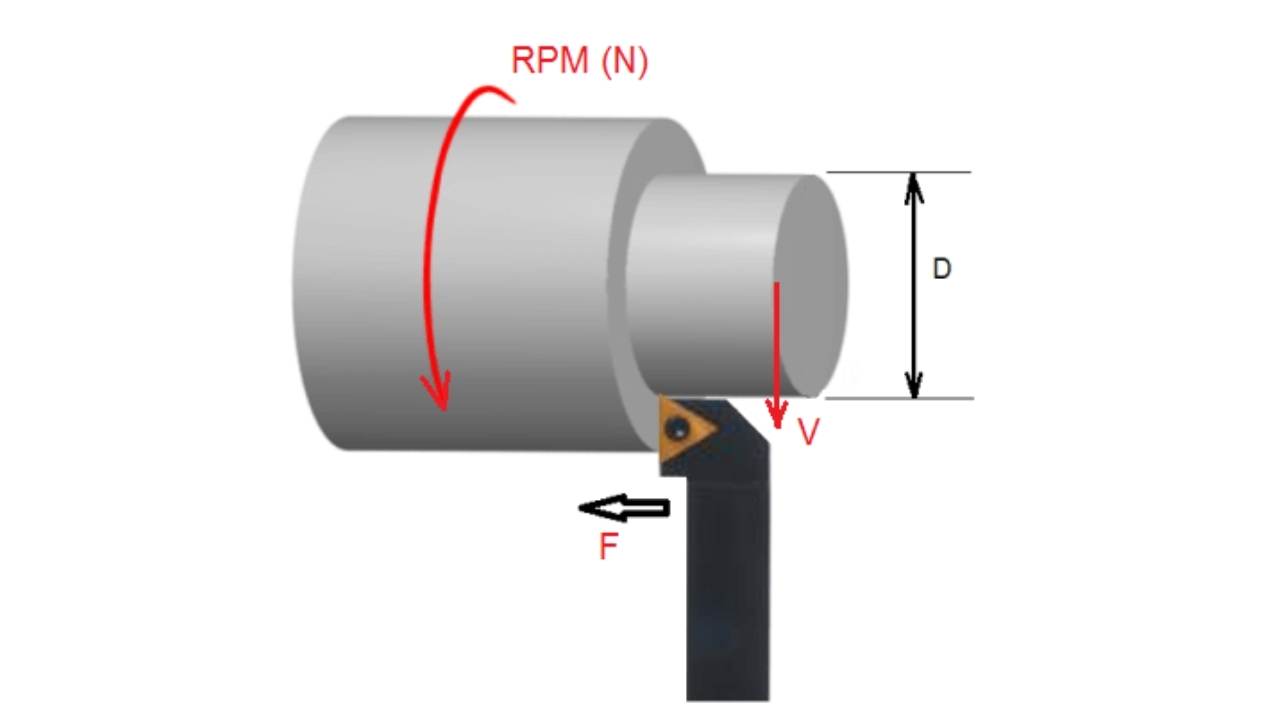

What Tool Materials are Available and How Can They Affect Your Calculations?
Cutting tools are available in different materials. The material of your tool will determine factors like spindle speed and cutting speed. For instance:
You can work with higher speeds when using carbide tools for aluminum. These tools allow you to work at above 300m/min since they are resistant to heat.
For high-speed steel (HSS) tools, you will need to work on lower speeds for aluminum. The speed can be as low as 80m/min to prevent wear.
Ceramic tools can work with higher speeds compared to carbide. However, ceramic tools are brittle.
If you are using an HSS tool, you will need to adjust to a lower cutting speed, feed rate, and the RPM. Therefore, it is important you choose the appropriate tool material to achieve efficiency.
How to Use CNC Software and Calculators
To achieve great performance and quality surface finishes during CNC machining, you need to integrate accurate speed and feed calculations. With the help of CNC software and Calculators, these calculations are easy to work out.
What are CNC Softwares and Online Calculators?
Machine operators have been able to program the appropriate feed rate, cutting depth, spindle speed, and other parameters with the help of CNC software and online machining calculators.
CNC software like Fusion 360 help you to input the type of material you are machining, the specifications of the tools, and machining conditions to provide the appropriate cutting parameters.
Online calculators like FSWizard and Sandvik Coromant provide accurate speed and feed rate according to the type of tool and material. These calculators save time and eliminate risk of errors from manual calculations
Why use Pre-programmed Machining Parameters
Pre-programmed Machining parameters offer a lot of benefits for machinists. These parameters help to achieve efficiency and consistency all through the process.
- Improved tool life: Optimized spindle speed and feed rates help to improve the lifespan of your tool.
- Precision: With these parameters, you can achieve high precision. Also, the risk of errors reduces as there is no need for manual calculations.
- Time-Saving: Pre-programmed parameters save time and increase productivity in the long run.
- Automated Adjustments: These programs ensure automated adjustment for different material types.
CNC software and online calculators are crucial in achieving accuracy and efficiency during a machining process. Also, these tools reduce the risk of errors and increase productivity. They have helped machinists to achieve consistency over time.
Conclusion
CNC machining is a critical process that requires the integration of accurate feed, speed, and other parameters to achieve precision. Online calculators and CNC software generate the optimal feed and speed for different types of materials and tools. You should always choose the appropriate tool material and specified cutting conditions to enhance efficiency.
