Exploring the Fundamentals of 4 Axis Lathe Machining Technology

Precision matters when you work with CNC machining processes.

A 4-axis lathe gives you better accuracy, efficiency, and flexibility. Complex parts can be made fast and fewer setups are needed.

Knowing how it works will provide you with productivity improvements and cost reductions.

What is a 4-Axis Lathe Machining?

A four-axis lathe machine is a sophisticated CNC machine intended for rotating the workpiece and cutting the material with great accuracy. It moves in four axes X, Y, Z, and A. All these CNC machine axes combined can allow you to make very complex, detailed shapes without having to set up multiple machines.

Key Axes in the 4-Axis Lathe

A 4-axis lathe involves four essential axes, which provides for a more controlled and precise movement.

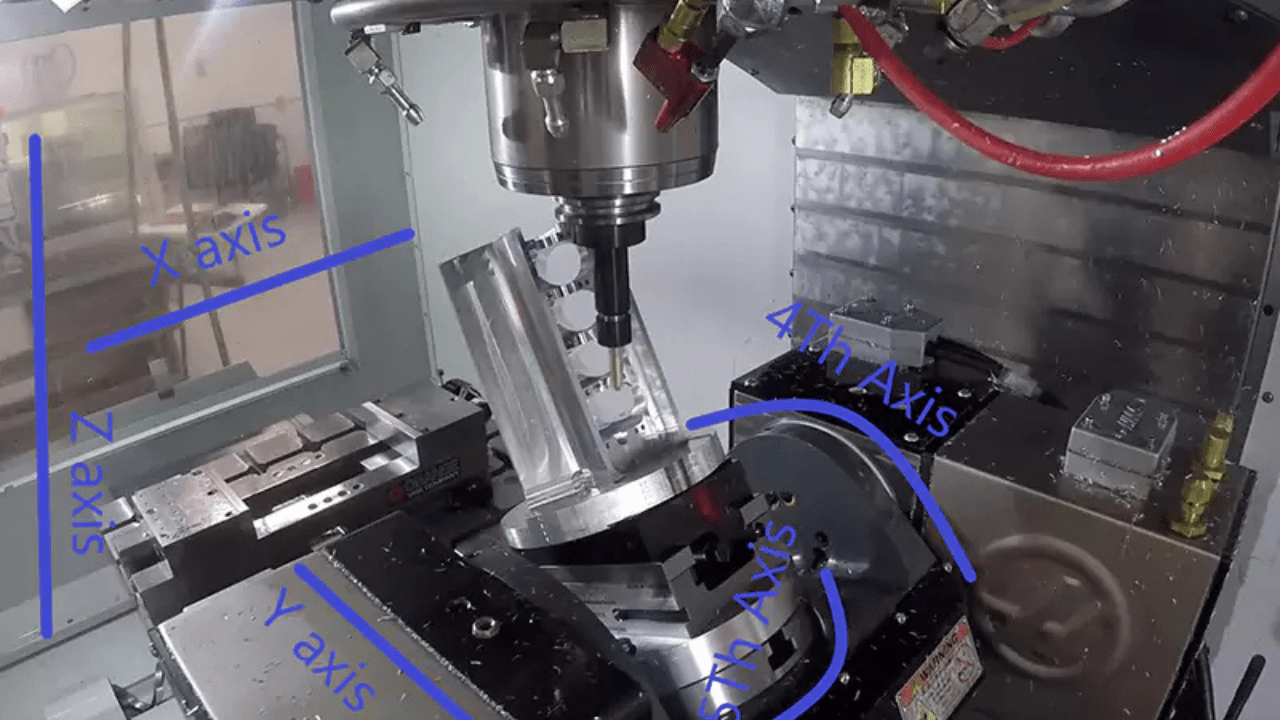

1. X-Axis – Moves the cutting tool horizontally.
2. Y-Axis – Controls vertical movement.
3. Z-Axis – Moves the tool back and forth along the workpiece.
4. A-Axis – This enables the workpiece to be rotated in order to cut different sides.

Each axis allows you to conduct complex machining processes without needing frequent alterations. Its capability is intended to produce detailed cuts, grooves, and threads relatively faster than a standard lathe.

How 4-Axis Lathe Machine Works

A 4-axis lathe machine transforms raw materials into precise components through a combination of controlled movements and rotational cutting.

Step 1: Workpiece Setup and Clamping

Before machining anything, it needs to be properly secured. A chuck or collet is used to properly hold the workpiece so that it cannot move during rotation.

Depending on the machine, this chuck could be a three-jaw, four-jaw, or hydraulic gripping device, accommodating cylindrical, square, or irregularly-shaped materials. Proper clamping is very critical in order to avoid vibrations which may hinder accuracy and surface finish.

Once held firmly, the workpiece will now be oriented to the spindle, which will rotate it at very high speeds. The spindle may therefore require speed variation depending on the nature of the material and the finish sought. While harder metals such as titanium would work at lower speeds, softer materials like aluminum or plastic would take much higher speeds.

Step 2: Tool Selection and Positioning

A turret tool holder is fitted to a 4-axis lathe machine, which holds multiple cutting tools. These cutting tools comprise turning tools, boring bars, drills, and milling cutters. Based on programmed instructions, the machine will automatically select and switch between these tools without any manual changeover. This saves time and minimizes the chance of error.

The cutting tool shifts in 3 directions X, Y, and Z, and the A-axis is used to rotate the workpiece. The side-to-side movement is controlled by an X-axis, the vertical height is then established by a Y-axis, and Z-axis moves the tool along the length of the workpiece. The fourth axis, A, allows the workpiece to be rotated so that multiple sides become available without removing or repositioning it.

Step 3: CNC Programming and Execution

CNC programming controls the entire machining operation. Through CAD/CAM software, you input a design file and have it converted into machine-readable G-code, which controls the tool paths, spindle speeds, cutting depths, and feed rates.

When loaded, the program provides a direct set of instructions for shaping the material. The cutting tool is sequenced into the position and removes material layer by layer until a final shape is achieved. The rotation by the A axis facilitates the cutting of different sides of the workpiece, thus minimizing manual interference.

Step 4: Cutting and Material Removal

The cutting tool cuts into the workpiece, removing material in the process of forming it to specifications as programmed into the machine. Highly detailed machining is ensured by a combination of rotation and multi-axis control. Thus, you can create grooves, tapers, and contours, as well as complex 3D shapes, all in one action.

Step 5: Finishing and Inspection

After machining, the workpiece goes through finishing operations to enhance surface quality. The fine-cutting tools of the machine may remove rough edges or polishing may be done to give a better finish. The automated measuring systems also check for dimensional accuracy in order to confirm that the final product is according to specifications.

After machining and quality check the workpiece is removed from the chuck ready for assembly or further processing. If your finished components need little manual adjustments, your 4-axis lathe will reduce errors and add consistency, making it suitable for mass production.

Benefits of 4-Axis Machining in Lathe

• More Precise – Enables you to accomplish the cleanest and most complex cuts without the need to reposition the workpiece manually.
• Time Saving – The extra axis allows for a quicker part realization with fewer machine adjustments.
• Better Surface Finish – The multi-directional cutting minimizes defects, yielding the products with a well-polished and smooth finish.
• Cost efficiency – The fewer setup and the reduction of material wastes reduces production costs and maximize efficiency.

How to Choose the Right 4-Axis Lathe for Machining

Your machining needs determine what 4 axis lathe you will get. You must examine these factors while deciding.

• Material Compatibility – Ensure that the machine can work with materials that are most commonly used in your case, whether, metal, plastic, or composites.
• Spindle Speed and Power – Greater speed and power translate to better cut efficiency. Select a suitable model according to your production demands.
• Software Compatibility – A good CNC lathe should interface easily with your CAD/CAM software for uninterrupted programming.
• Budgets and Maintenance Costs – Choose a machine where performance is matched against price while keeping maintenance costs in check.

Applications of 4-Axis Lathe

• Aerospace Industry – Used to fabricate turbine blade, engine components, and intricate aerospace components.
• Automotive Industry – Assists in the manufacture of engine parts, gears, and custom vehicle components, with extremely high accuracy.
• Medical Equipment Manufacturing – Used to manufacture surgical implements, prosthetic devices, and orthopedic implants.
• General Manufacturing – Ideal for building machine components, hydraulic parts, and high-precision industrial tools.

FAQs

1. How does 4-axis vs. 3-axis Lathe Compare?

A 4-axis lathe is capable of rotation about additional axis, which permits creating more complex cuts and saves setup time, compared to the 3-axis lathe designed for more basic movements.

2. What is the difference between 4-axis and 5-axis Lathe?

A 5 axis lathe provides another rotational axis increasing the flexibility of complex machined parts. The undercut and intricate designs are better handled.

3. What is a 4-axis Mechanism?

This is a machining system in which the tool moves along X, Y and Z axes and the workpiece is rotated along A axis.

4. What are the Limitations of 4-axis CNC?

It can’t cut highly complex undercuts as a 5-axis machine can. Manual repositioning may still be needed for some operations.

5. What is a 4-axis Turning?

The process involves machining of rotating parts using a lathe with four axis movement that improves efficiency and precision.

6. What is the average 4-axis Lathe Price?

Prices vary from $50,000 to $500,000 depending on the size, features and brand.

Conclusion

Integrating a 4 axis lathe to your machining process will give you more precision, efficiency and flexibility. This machine can help a lot with the manufacture of complex parts in aerospace, automotive, and medical manufacturing.
