Stainless Steel Machining 101: An Ultimate Guide for Beginners & Experts

In this article, you will take a look into the numerous applications ranging from different industries that stainless steel machining has. From aviation to eco-energy, let us reveal how machined stainless steel parts assist other technologies in developing modern infrastructure.

What is Stainless Steel?

Stainless steel is a metal alloy consisting of many elements including iron, nickel, chromium, molybdenum, etc.

It is one of the most popular metals for most applications due to corrosion resistant property among other mechanical and physical features.

Top Machinable Stainless Steel

· Duplex Stainless Steel

Stainless steel 303 is characterized by machine-ability and high cutting efficiency due to its low sulfur content. This makes it convenient during chip breaking. Its sulfur component facilitates a finish with burr-free edges and minimal tool wear.

Which makes it suitable for intricate and precise machining tasks like threading and drilling.

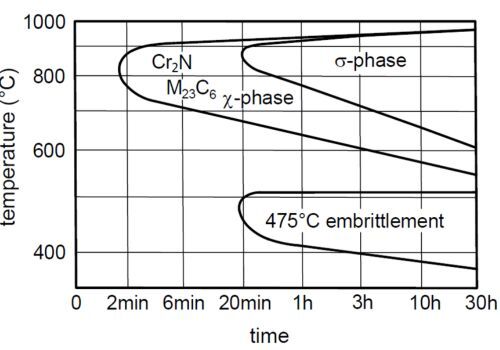

Duplex Stainless Steel Phase Diagram

Duplex Stainless Steel Phase Diagram

· 316 Stainless Steel

Machining the 316 stainless steel could appear to be conspicuously difficult because it is tough and prone to work hardening. The choice of cutting tools and machining conditions that were optimized for preventing or minimizing work hardening. That is just the thing that guarantees the appropriate machining outcomes.

Also, sound application of the coolants and correct execution of the chips between the chips and cutting edges make machining most effective.

· Precipitation: Hardened Stainless Steel

17-4 stainless steel displays a certain level of machinability, but it may be tougher to work with than other grades.

Properly heat treating just before machining treatments improves the machining ability of the materials. You can use it to cut down on tool wear and work hardening issues.

· Austenitic Stainless Steels

304 stainless steel shows good machinability, but it also possesses the work-hardening that happens during machining. Keeping precise cutting speeds, nozzles, and coolant use and picking the correct tools is the main way to reduce work-hardening.

· Martensitic Stainless Steels

It is quite a challenge to machine 440C stainless steel, which is known for its high wear resistance and abrasiveness. The carbide tools of high wear resistance, which are usually used for 440C aluminum alloy machining, are used for this process.

Ensuring a favorable cut by controlling the cutting forces and optimal machining parameters is crucial for producing a desirable surface.

Properties of Stainless Steel that Make It Suitable for Machining.

Corrosion Resistance: Stainless steel’s ability to resist corrosion guarantees that machined parts are resistant to degradation, even in extreme environments.

Strength and Toughness: Stainless steel’s unique strength and toughness features allow it to withstand machining forces and maintain the high dimensional stability of finished parts.

Work Hardening: Stainless steel can experience an increase in hardness and strength through the work hardening phenomenon during machining. But appropriate tool selection and cutting parameters are very important to control this effect.

Thermal Conductivity: The thermal conductivity property of stainless steel differs and dissipates heat from the tool, which prevents excessive tool wear and consistent machine behavior.

Techniques and Processes for Stainless Steel Machining

· Cutting Tool Selection

You consider the grade and type of cutting tool coatings and shapes to minimize expenses and increase endurance. For making parts from stainless steel, carbide or high-speed steel tools are often selected with specific coats like TiN or TiAlN because the material is hard and abrasive. This helps to reduce tool wear and guarantees dimensional accuracy.

Machining Methods

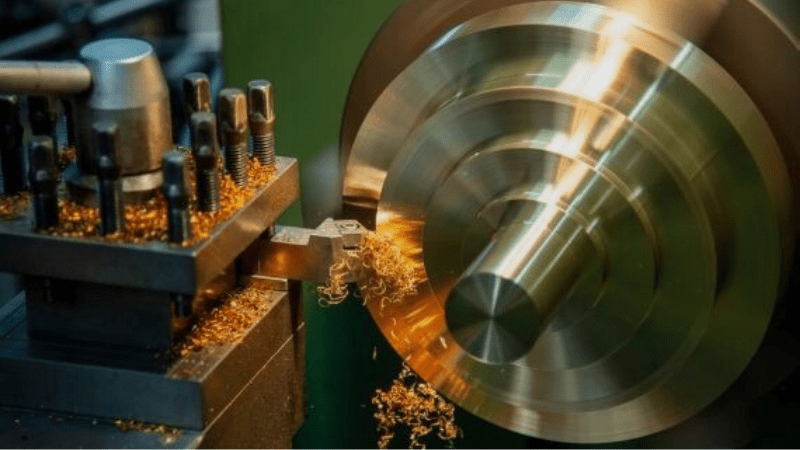

  • Turning: You rotate the workpiece while holding the single-point tool to make a round-shaped workpiece. Turning can be very versatile by providing close tolerance and good surface quality that make it suitable for the manufacturing of shafts, bushings, or cylinders.
  • Milling: Remove material from the workpiece with rotating cutting tools practically to manufacture multiple shapes, slots, and reliefs. Milling assists in the production of complex shapes and is very effective in manufacturing components like gears, brackets, and casings in small amounts.

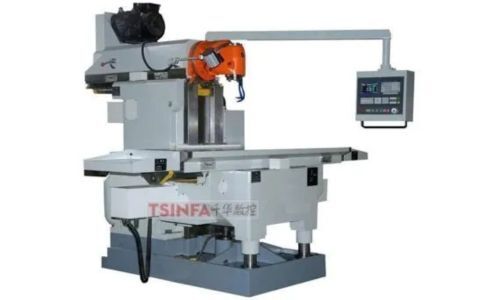

CNC Milling Machine

CNC Milling Machine

  • Drilling: You make holes in the job piece by rotating drill bits. Drilling is the main operation for assembling and machining components; it creates pre-size holes in stainless-steel parts like valves, flanges, and fittings.

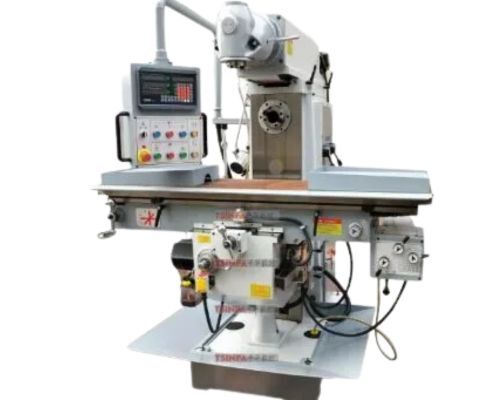

CNC Drilling Machine

CNC Drilling Machine

  • Laser Cutting: You use a well-targeted laser beam that you heat-up or evaporate stainless steel to get very accurate chops that cause minimal material loss. Laser cutting is fast and precise, making it the right tool for making intricate forms in thin sheets.
  • EDM (Electrical Discharge Machining): You employ this method of electrical discharge to vaporize and cut material from the workpiece, creating advanced shapes with extreme precision. EDM is proven to be highly effective on hard-to-machine materials, such as hardened steel, creating complex dies, molds, and tooling for manufacturing processes.

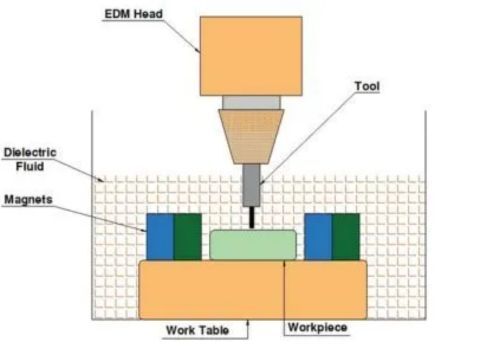

EDM Machine

EDM Machine

  • Grinding: You take material from the surface of a workpiece by grinding it using hard wheels, resulting in close tolerances and high surface quality. Grinding, on the other hand, is vital to precision components where dimensional accuracy and surface quality are highly crucial.
  • CNC Machining: You are in the position of having full control over machining operations that enable the complexity of part geometry and size, or the tight ones. This CNC machining process provides precise repeatability and efficiency, which greatly saves processing time and overhead expenses.

Considerations for Stainless Steel Machining

The choice of equipment and the proper application of coolants, as well as the clamping methods, are also decisive factors for CNC machining, and these factors are not trivial ones.

The load that the chips must bear is reduced, and the surface finish is perfected with heat generation and chip evacuation handling at the heart of it.

Factors Influencing the Machining of Stainless Steel.

  • Workpiece Material Composition: You count both the alloy composition of stainless steel, which includes chromium and nickel content, for the machinability and tendency to work harden.
  • Workpiece Geometry: You think about how small or big the workpiece is, and thus you decide the best machining strategy to use that will meet the machine variables.
  • Cutting Parameters: You control cutting speed, feed rate, and depth of cut according to stainless steel grade, tooling, and surface finish by changing the grade, cutting tools, and surface finish. Tool wear and no material increase as the best durable material is applied, which you will use.
  • Machine Rigidity: Production of the machine tool with a focus on its stability and stiffness competency to withstand the great forces of hard cutting in stainless steel. This also serves to reduce vibration and deflection, which leads to more precision in dimensional accuracy and surface finishing.

Challenges and Solutions in Stainless Steel Machining.

· Work Hardening

Cold hardening during machining is a troublesome factor. It gives the tool a longer life and a strong work material, resulting in the fact that the material of the work becomes less machined. You will have to streamline roughing parameters to reduce heat generation and choose high-speed steel or cobalt tools together with applied surface coatings.

· Chip Control

The cutting can lead to unmanaged chip formation and eruptions involving the tool and sometimes the damaged component. Abrasive cutters utilize chip breakers, proper coolant sprays, and good-fitting feed rates to chip the material and expel the leftovers effectively. This ensures chip not splitting and minimal cutting tool wear during the processing of stainless steel with both operations.

· Tool Wear and Life

This tool wear problem is connected with the high speed cutting of the stainless steel which results in the change of both volume of produced products and budget. With approaches like the selection of tool materials and coatings, the selection of cutting speeds and feeds, and the use of chip control techniques, tool life can be extended.

Best Practices of Stainless Steel Machining

1. Material Preparation

You work at guaranteeing that the tools are round, clean in surface texture, and work is intense enough to make the holes devoid of flaws on the surfaces and the holes.

2. Fixture Design

It is your responsibility is to concern fixtures with high stability and minim vibrations characteristics, so it is possible to improve machining precision and repeatability.

3. Toolpath Optimization

The shaped cutting paths of that optimization tool strive to minimize tool engagement and also to curb cutting force, which in turn benefits by the better finish of the part and also by making the tool last longer.

4. Cooling and Lubrication

You achieve this through effective cooling and lubrication to minimize heat creation as well as friction that would lead to workpiece overheating and the wear of tools in machining of stainless steel.

5. Deburring and Finishing

But using different tools, such as a deburring set or brushing, you remove burrs and defects on the superficial layer and achieve parts with perfect quality and flawless function.

6. Inspection

You manually examine the parts to either fit the size and surface according to the given drawings and drawings for the specifications and quality standard.

Applications of Stainless Steel Machining

  • Aerospace: Turbine blades and exhaust systems, and also aerospace fasteners like bolts and screws.
  • Automotive: Exhaust systems, engine parts, transmission components, and chassis reinforcements.
  • Medical Devices: Surgical instruments, orthopedic implants, dental tools, and diagnostic equipment.

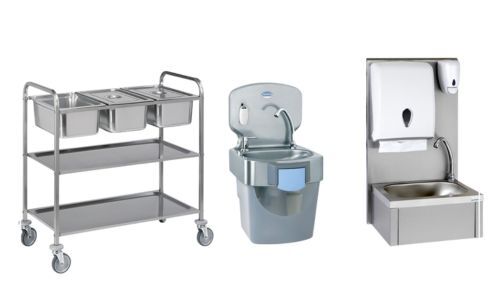

Stainless Steel Medical Devices

Stainless Steel Medical Devices

  • Food Processing Equipment: Conveyor belts, mixing tanks, cutting blades, and sanitary fittings

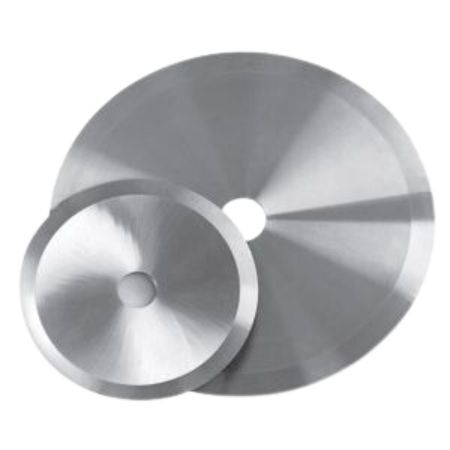

Stainless Steel Cutting Blades

Stainless Steel Cutting Blades

  • Oil and Gas: Valves, pumps, pipes, and drilling

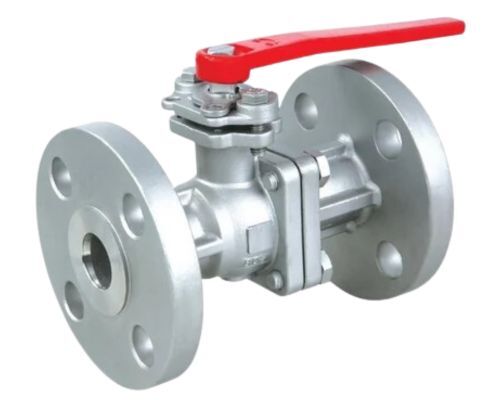

Stainless Steel Ball Valve

Stainless Steel Ball Valve

  • Marine: Ship building, offshore construction, and marine propulsion systems
  • Chemical Processing: Stainless steel processing is a crucial production step to manufacture devices used in chemical industries, like reactors, heat exchangers, tanks, and piping.
  • Renewable Energy: The components manufactured of machined stainless steel are used in the renewable energy industry, such as wind and solar power generation, turbine components, solar panel frames, and mounting structures.

Conclusion

Through the heart of all industries lies the pervasive use of stainless steel machining, which serves as a reminder of its irreplaceable role. With the evolution of technology and industries, stainless steel machining will still remain an imperative force catering to the dynamic needs of society.
