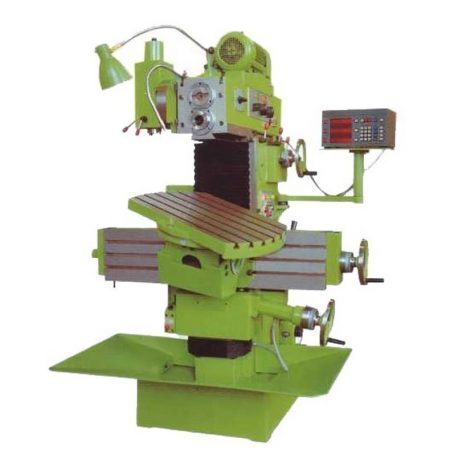

      Universal Tool Milling Machine UTM32/40

      On hover to room

      The machine can complete cutting, milling, drilling, inserting, etc. It is suitable for the processing and processing of various tools, fixtures, dies, stampers and other mechanical products. Small and medium-sized molds and other complex parts can be completed with a variety of special accessories. Machining of arc, rack, gear, spline and other parts.

      Structural features:
      First, the structure is novel, the versatility is wide, the precision is high, and the operation is simple.
      Second, the use of a variety of accessories, can expand the scope of use and increase the use rate.
      Third, XS8132A: equipped with programmable digital display system, wide scale resolution is 0.01mm



      Supply Ability:      200 Set/Sets per Month
      Port:                       Qingdao/Shanghai
      REQUEST A QUOTE

      SPECIFICATIONS

      Specification UTM32 UTM40
      Working Horizontal Working table ( L x W) 320x750mm 800x400mm
      table Vertical Working table ( L x W) 250x850mm 950x250mm
      Longitudinal/Transverse/vertical Travel 400/300/400 500/350/400
      Horizontal and vertical spindle speed ：steps/range 18 steps(级)/40~2000rpm 18 steps(级)/40~2000rpm
      Longitudinal,transverse and vertica feeds： 18 steps(级)/10~500min 18 steps(级)/10~500min
      steps/range
      Axial feed of quill of vertical spindle steps/range 3 steps(级)/0.03~0.12mm/rev 3 steps(级)/0.03~0.12mm/rev
      Vertical Vertical travel of quill 60mm 60mm
      Spindle head
      Axia inclination left and right ± 90° ± 90°
      Taper hole ISO40 ISO40
      Horizontal The height from axis to ground 1330mm 1330mm
      spindle Min ,distance between axis and
      surface of Horizontal table 40mm 35mm
      Vertical Taper hole ISO40 ISO40
      Spindle
      Min ,distance between nose and 10mm 5mm
      Surface of horizontal
      Horizontal swivel ± 360° ± 360°
      Universaltable Inclination to front and rear ± 30° ± 30°
      Inclination on left and right ± 30° ± 30°
      Power of main motor/Feed motor 3kw/1.5kw 3kw/1.5kw
      Max. table load/Max. load of cutter 300kg 400kg/500kg
      Overall dimensions ( L x W x H)/Net weight 181x122x171cm/2200kg 182x164x171cm/2300kg
      Packing dimensions ( L x W x H )/Gross weight 200x164x210cm/3000kg 205x176x208cm/3300kg
