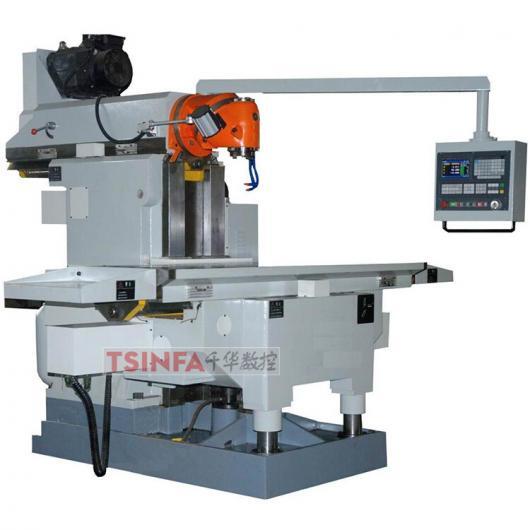

    CNC Universal Milling Machine XK6150HS

    On hover to room

    The machine can be used both for vertical milling and horizontal milling, with corresponding attachments, it can also mill various rotary surfaces and grooves, etc. Two-section revolving cutter head enables the spindle to revolve and adjust at any angle, and mill complicated parts with multi-angle and multi-face by one time of holding. It is the ideal machining equipment for the industries of mechanic manufacture, mould, automobiles and motorcycles.



    Supply Ability:      200 Set/Sets per Month
    Port:                       Qingdao/Shanghai

    SPECIFICATIONS

    1. The layout of the whole machine adopts the ram lifting structure, the ram is used for lateral movement, and the lifting platform is used for longitudinal and lifting movement.
    2. Configure the universal milling head to realize the universal machining of the vertical, horizontal and front hemispheres.
    3. Double auxiliary guide columns are arranged in front of the lifting platform, and the distance between the double guide columns is large, which improves the stability of the whole machine.
    4. Configure the CNC system to machine parts with complex contours and cavities.
    5. The spindle is driven by servo motor, combined with high and low gear shifting, stepless speed regulation in the gear, wide constant power range, high low speed torque, good mechanical characteristics and convenient operation.
    6. It can be processed by multiple processes such as milling, boring and drilling, and is widely used in various machining fields and teaching experiments.

    Name Unit XK6150HS XK6260HS
    Table size mm 500×1650 600×2000
    T Slot 5-18-80 5-18-100
    Distance from spindle nose to table min mm 80 100
    max mm 580 630
    Table travel Y axis mm 650 650
    Z axis mm 500 530
    X axis mm 1300 1500
    Spindle taper 7:24,50 7:24,50
    Spindle speed range range rpm 10~1600 10~1600
    rank 2 ,stepless 2 , stepless
    X、Y、Z Feed range m/min  2 2
    X、Y、Z rapid movement m/min 6/6/4 6/6/4
    Main motor power kw 7.5(11) 11
    X、Y、Z  Motor Torque Nm 15 15
    positioning accuracy mm ±0.02/300 ±0.02/300
    Repetitive positioning accuracy    mm ±0.01/300 ±0.01/300
    Machine weight T 4.2 5.5
    Max Load weight Kg 800 1000
