Description
Hot sale

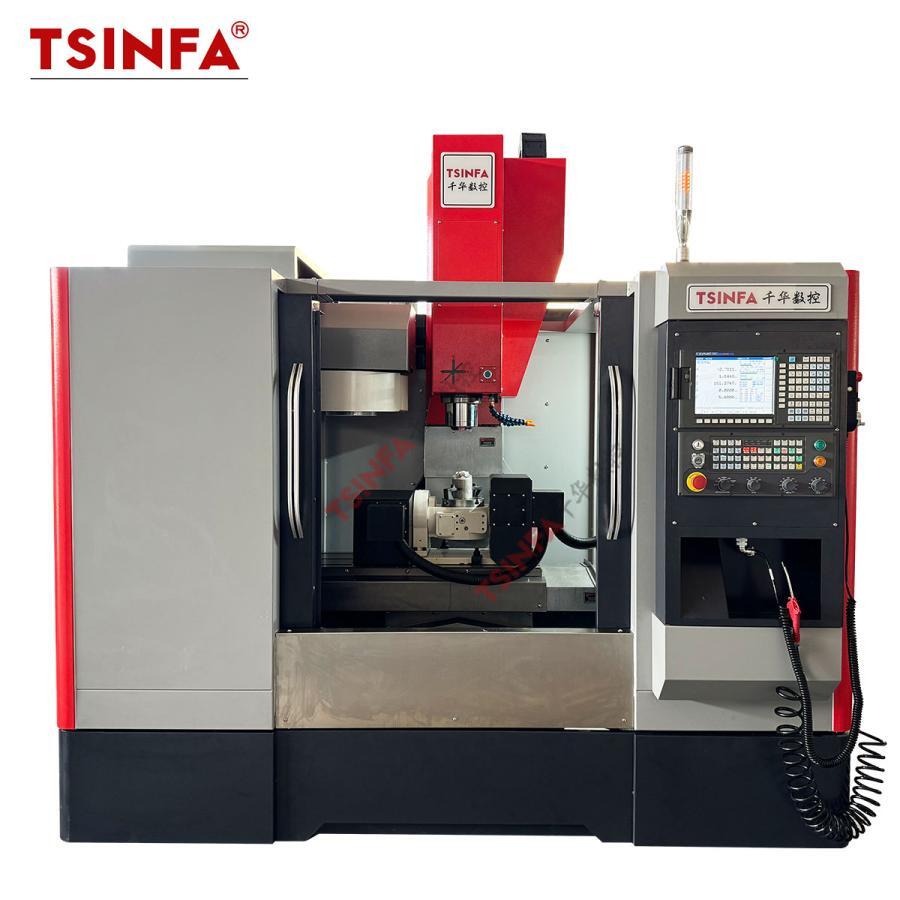

Model: TVK640， VMC640
- High speed
- High-precision
- CNC System: GSK, FANUC, Siemens, Mitsubishi
- Optional: Linear guide, tool magazine
- Fully enclosed protection, chip conveyor
Need a quote? Give us a call at +86-15318444939, and talk to one of our expert reps.You can also fill out our : contact form
WE CAN CUSTOMIZE ACCORDING TO YOUR NEEDS, CONTACT US FOR SOLUTION AND QUOTATION
| Specification | Units | TVK/VMC 640 |
| Table size | mm | 800*320 |
| Max. table load | kg | 350 |
| X/Y/Z table travel | mm | 600*400*450 |
| Numbers,width&distance between T – slot | mm | 3*16*80 |
| Spindle nose to table surface | mm | 130-550 |
| Spindle center to Column surface | mm | 350 |
| Spindle taper | BT40 | |
| Spindle speed | r.p.m | 6000 (optional:8000) |
| Inverter-fed motors | kw | 3 |
| Table rapid feed speed | m/min | 18/18/12 |
| Cutting feed speed | mm | 15000 |
| Three axis servo motor torque | NM | 6/6/10 |
| Positioning accuracy | mm | ±0.015 |
| Repeat position accuracy | mm | ±0.008 |
| Net weight | kg | 2000 |
| Overall dimension(L×W×H) | mm | 2000*1800*2250 |
