Description
Hot sale

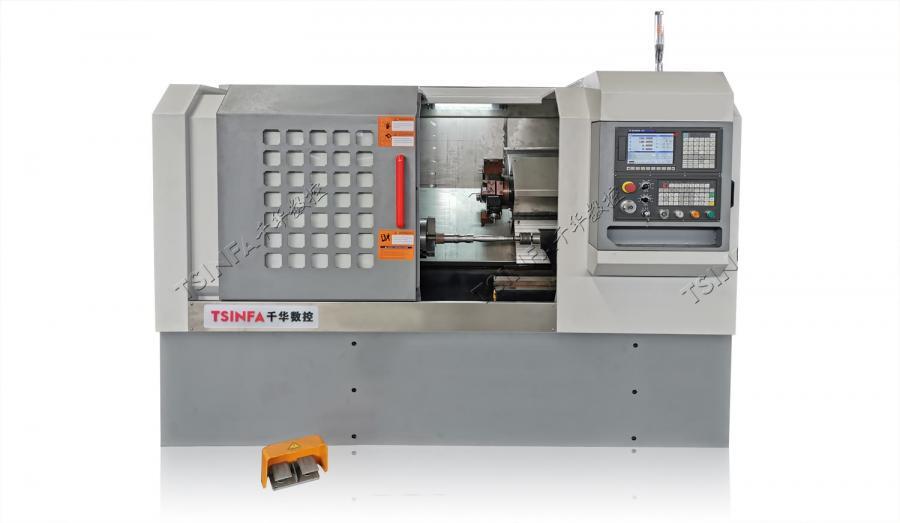

Model: TFA40S
- High speed
- High-precision
- CNC System: GSK, FANUC, Siemens, Mitsubishi
- Optional: Linear guide, Hydraulic tailstock, Hydraulic chuck, Pneumatic safety door
- Fully enclosed protection, chip conveyor
- Slant bed CNC lathe
Need a quote? Give us a call at +86-15318444939, and talk to one of our expert reps.You can also fill out our : contact form
WE CAN CUSTOMIZE ACCORDING TO YOUR NEEDS, CONTACT US FOR SOLUTION AND QUOTATION
| TFA40S | ||
| Turning Diameter over bed | mm | Φ400 |
| Turning ø over slide | mm | Φ195 |
| Workpiece length | mm | 500/1000 |
| Bed structure | 45°/30° | |
| Travel X-axis | mm | 240 |
| Travel Z-axis | mm | 500/1000 |
| Spindle mount | ISOA2-5 | |
| Spindle taper | MT6# | |
| Spindle bore | mm | Φ56mm |
| Spindle bore with draw tube | mm | Φ41mm |
| Spindle Speed | rpm | 5000 |
| Surface roughness | Ra≤1.6 | |
| Positioning accuracy x-axis | mm | 0.01 |
| Positioning accuracy z-axis | mm | 0.01 |
| Repeatability x-axis | mm | 0.008 |
| Repeatability z-axis | mm | 0.008 |
| Number of tool station | 12 | |
| Tail stock quill stroke | mm | ∮58mm / 120mm |
| Tail stock quill taper | MT4# | |
| Overall dimensions (length x width x height) | mm | 3450 x 1700 x 1750 |
| Weight | kg | 3200kg |
