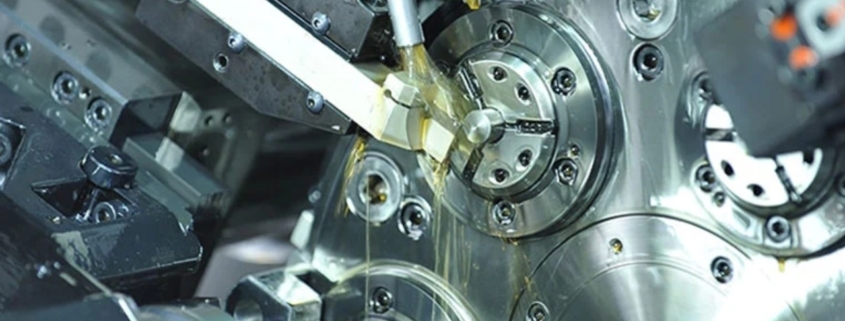

All You Should Know About the Single Spindle CNC Lathe

The single spindle CNC lathes are machining tools that help you with milling, drilling, and turning. You can only do this on one workpiece at any point in time. This provides great flexibility, and high accuracy, ensuring that it serves both medium and small manufacturing purposes across several industries including medical, aerospace, and automotive manufacturing.

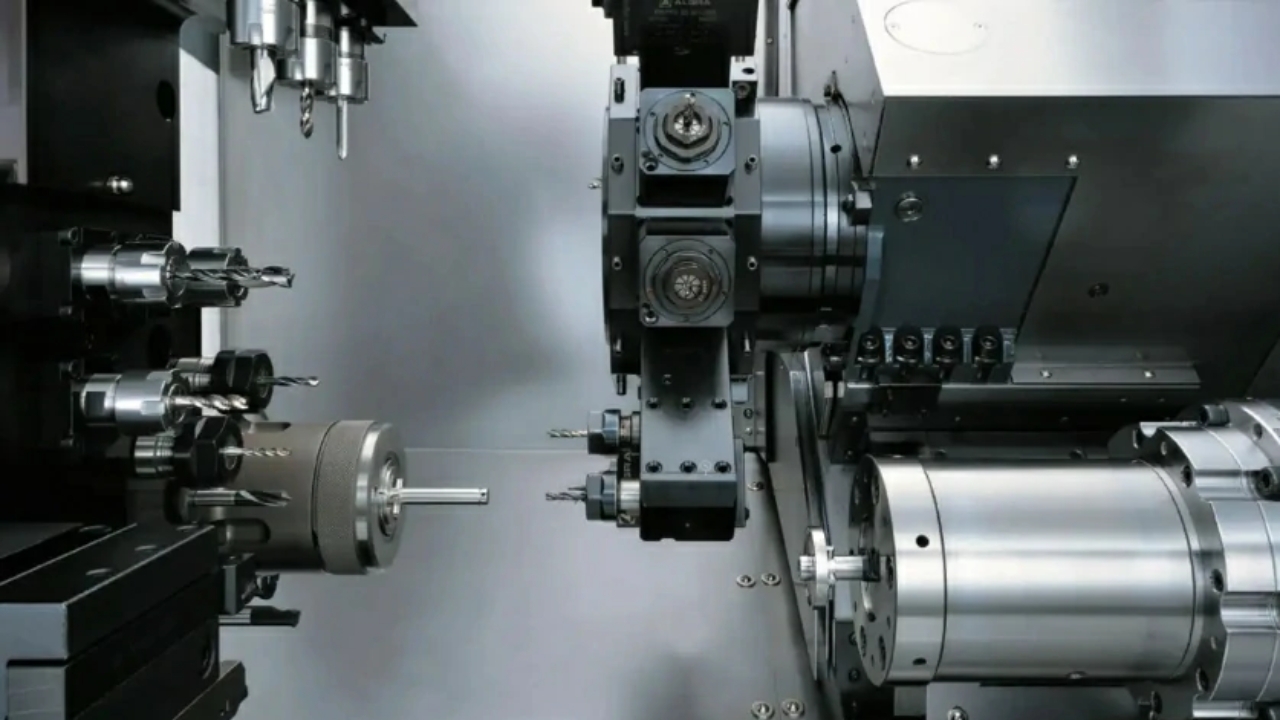

What are the Components of Single Spindle CNC Lathes and How Do They Work?

Main Components of Single Spindle CNC Lathes

Single spindle CNC lathes are made up of different components which are very important to achieve precision manufacturing because they function together. These include the spindle and the tool turret.

To secure your workpiece properly, the chuck comes into play, which ensures that there is stability all through the turning. Also, there are important parts including the carriage, which helps in moving the tools on your workpiece, the bed that offers structural support, and the control panel that ensures that operators can program as well as monitor the machining process.

How Does the Chuck, Tool Turret and Spindle Work?

The spindle serves as the engine room of a lathe, which helps to rotate your workpiece at different speeds and for several cutting tasks. A servo motor helps in powering this by adjusting the speed with respect to the requirements of machining as well as the material in use.

Furthermore, the tool turret helps in housing many cutting tools, which rotate automatically to position the right tool for all the steps involved in machining. With this feature, you can achieve easy transitions between the different operations like drilling, facing, turning, and threading.

Also, the chuck ensures that the workpiece stays properly in place, thereby ensuring stability and accuracy when machining.

Automation and CNC Programming

Modern single spindle CNC lathes now feature CNC technology which helps to automate the whole machining operation. From loading of workpieces to switching of different tools, and regulating temperature, the CNC technology ensures smooth operation. Also, these machines integrate G-code programs that control the cutting speeds, rotation of the spindles, and tool movement.

The CNC controller gets the necessary instruction and acts on these commands accurately. Single-spindle CNC lathes have advanced features such as workpiece probing and automatic tool change. This level of automation helps you achieve tight tolerances and precision during machining. Also, it reduces human intervention and as such, minimizes errors.

What are the Benefits of Single Spindle CNC Lathes?

Although single spindle CNC lathes can’t handle different machining tasks simultaneously, they have their own benefits which include:

High level of accuracy

You can achieve a high level of accuracy when machining with a single-spindle lathe. The CNC control system in your machine automated most of the processes involved in the machining operation and as such reduces possible errors. Due to this benefit, you can use this lathe in manufacturing automotive and aerospace parts.

Space-efficient

Single spindle CNC lathes are space-efficient, which means you don’t require a large floor space to install them. Therefore, you can use them in small workshops where space is a major concern.

Maintenance

Single -spindle CNC lathes are low-maintenance machines. Since they feature one spindle, they have fewer components. Also, with CNC programming features, you can easily detect possible errors and ensure quick fix before further damage.

Flexibility

Another benefit of a CNC lathe is that you can use it to perform various tasks like drilling, turning, milling, and even grooving. Although you can’t perform these tasks simultaneously, but you can do them sequentially.

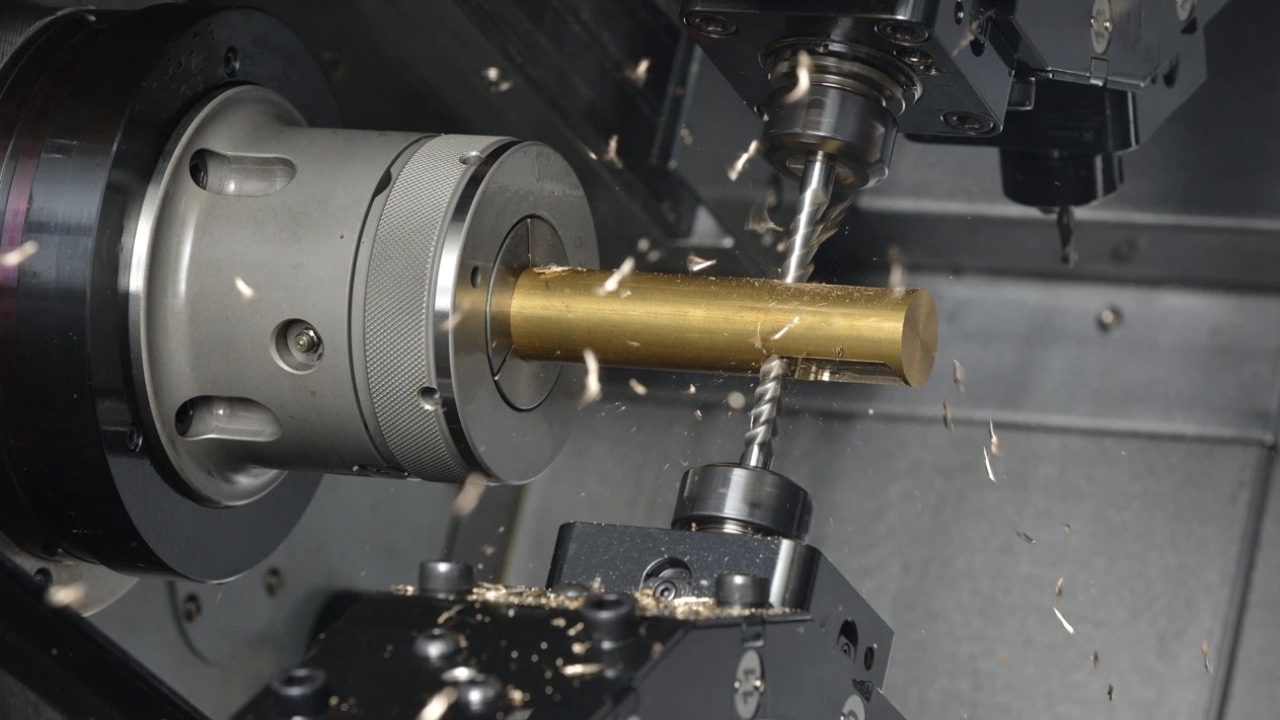

What are the Limitations of Single Spindle CNC Lathes?

Low Production Rates

One of the major limitations of using a single spindle lathe is their slow production rate. You have to process your workpiece in multiple cycle times which takes time. Therefore, this limits their capacity to provide more output.

Higher labor costs

Single spindle lathes can only machine your workpiece for each cycle. Therefore, you may need to work with more operators to meet high demands. The need for more labor requires more cost.

Low automation level

Single-spindle lathes offer a low level of automation, making them an unsuitable choice for large-volume manufacturing. Due to their low automation level, their capabilities are limited. Also, they can’t process multiple machining tasks simultaneously.

Unsuitable for complex machining

Some complex parts need multiple machining operations which a single-spindle lathe may not be able to handle. If you will be using a single-spindle lathe for such applications, you will need secondary machines or extra setups to achieve this.

Regardless of these limitations, you can still use a single spindle lathe for small-scale or prototype production. This lathe excels in such applications.

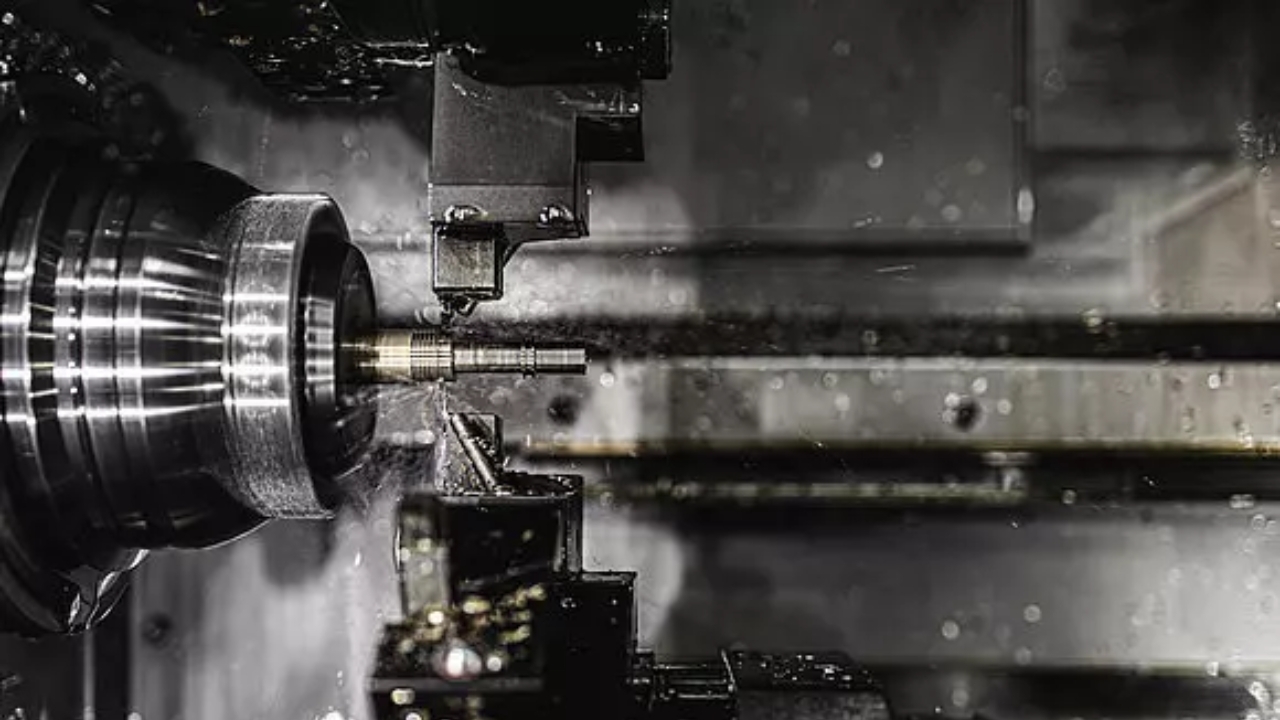

What Differentiates the Single Spindle from the Multi Spindle CNC Lathes?

Single-spindle lathes have just one spindle while multiple spindle lathes have more than two spindles. Therefore , you can only use a single spindle lathe to machine a workpiece. Also, can only complete a task in several cycles. Due to this, the rate of production is very slow.

On the other hand, you can use multi-spindle lathes to achieve a lot of tasks in one setup. These machines perform different machining tasks simultaneously, while maintaining precision.

Single spindle lathes have a lower initial investment cost compared to multi spindle lathes. However, multi spindle lathes offer greater output due to high production rates.

When should you Use a Single Spindle Lathe?

A single spindle lathe is the best choice when you need to work on small-batch production or produce prototype for parts. Also, you can use this lathe to make custom parts.

Multi spindle lathes are ideal for producing large quantities of complex parts. Also, you can use these lathes to machine different workpieces in one setup, hence they deliver greater output.

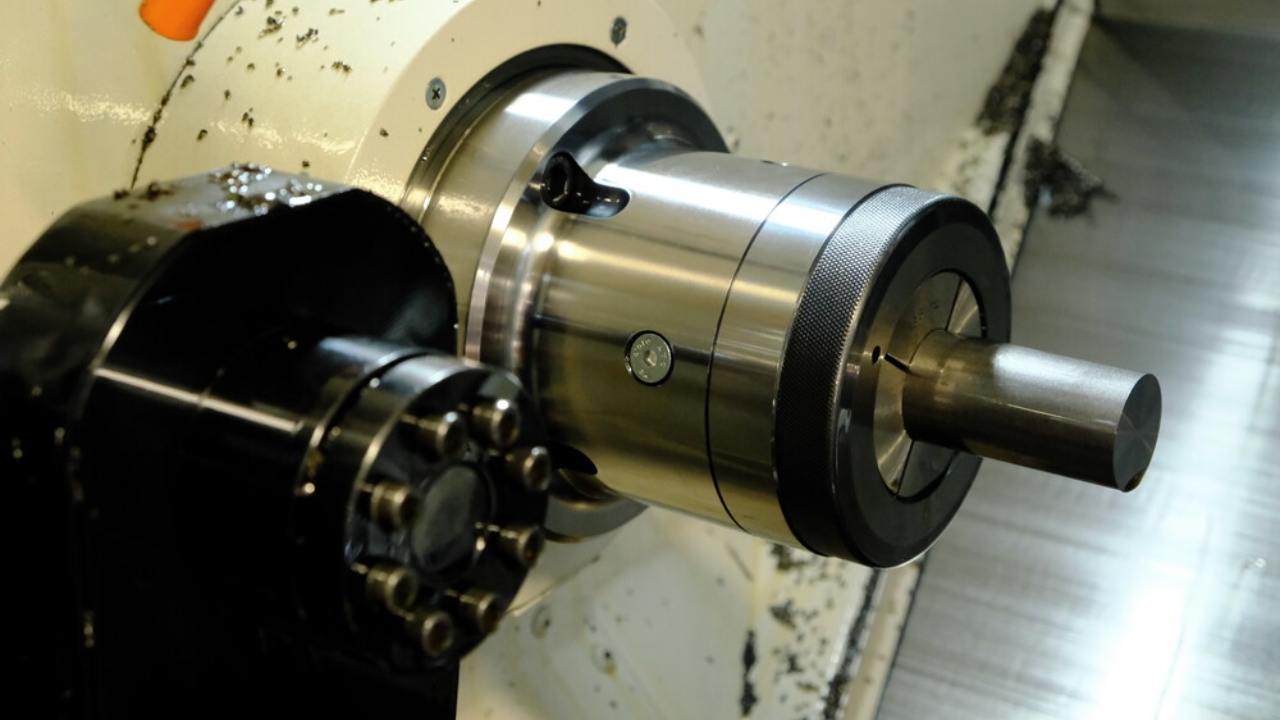

Applications of Single Spindle CNC Lathes

Automotive Industry

You can use Single spindle CNC lathes in the production of automotive parts that need precision. These machines help you to achieve tight tolerances, which makes them suitable for manufacturing engine and transmission components.

Aerospace Industry

Single-spindle lathes are commonly used in the aerospace sector because of their ability to handle components with high -strength materials. For example, landing gear parts and turbine blades are complex parts that require accuracy during machining.

Medical Industry

Medical products like surgical tools, implants, and more are very complex. These components require high precision during production. Medical devices manufacturers integrate single-spindle lathes due to their precision.

Electronics

Single spindle lathes are commonly used in the electronics industry to produce detailed components. These lathes offer efficient results during production.

Custom Machining

One of the best applications of single spindle lathes is small-scale production and prototyping. These lathes excel in custom machining since they are versatile and can be used across various industries.

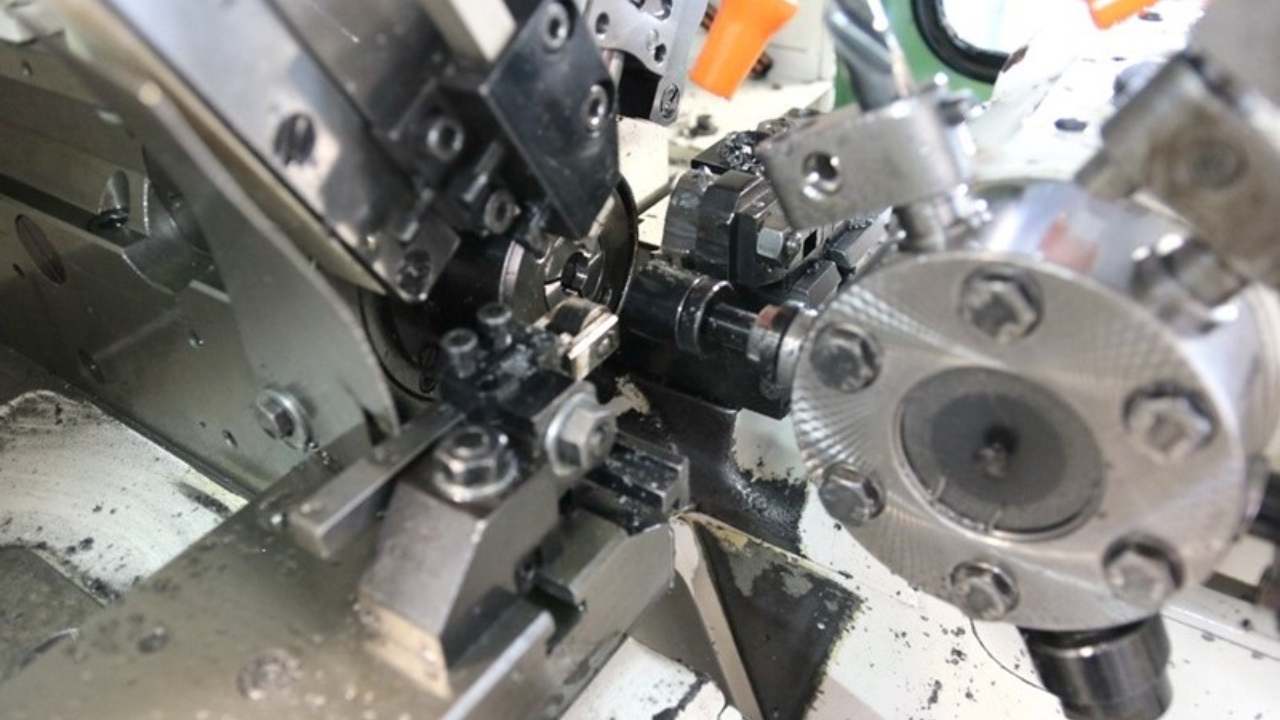

Common Parts Machined with Single Spindle Lathes

Bushings

Bushings are a common component used in automobile parts, industrial machinery, and transmission components. With single spindle lathes, manufacturers can achieve precision.

Shafts and Cylindrical Components

You can integrate single-spindle lathes in the production of cylindrical components and other intricate parts like shafts and rods. These components are commonly used across industries like aerospace and manufacturing.

Medical and Electronic Components

A good number of medical components require precision and efficiency during production. These components must be safe for use, therefore, manufacturers integrate single spindle CNC lathes during their production.

Fasteners and Fittings

These lathes are also ideal for machining precision fasteners like bolts and nuts. They offer consistent and precise results, hence their use in the production of these parts.

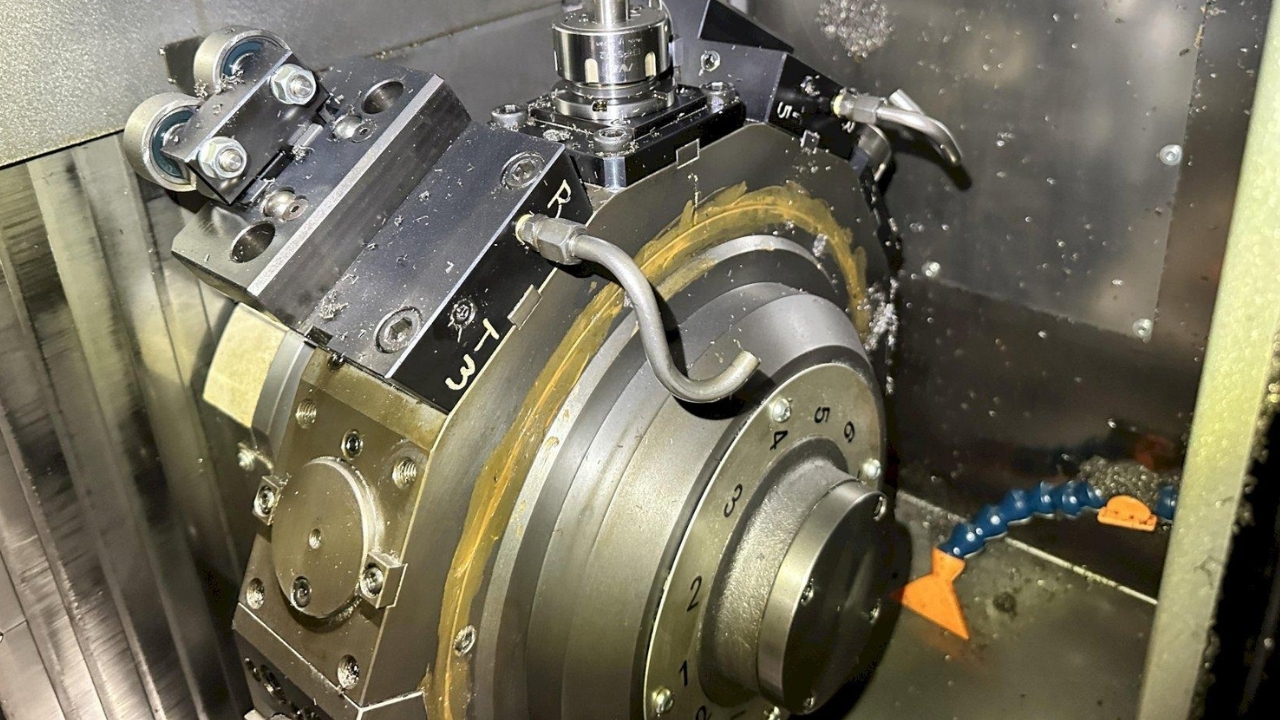

Conclusion

Single spindle lathes offer flexibility and accuracy for small batches, which differs from the multi spindle type that enhances productivity when handling bulk manufacturing. Selecting the best lathe has to do with several factors including efficiency, cost, and complexity. Tsinfa is a reliable CNC lathe manufacturer, providing high-quality solutions for different industries. Whether it’s for bulk manufacturing or precision machining, Tsinfa has lots of exciting offers for you.
