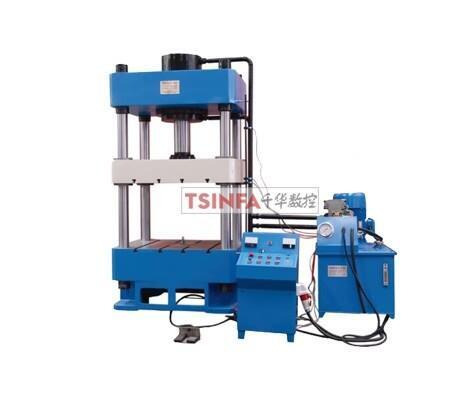

      Four Column Hydraulic Press

      On hover to room

      Machine has independent power organization and electrical system, adopts the centralized control buttons, which can realize the adjustment, manual and semi-automatic three works: the machine’s working pressure, pressing speed, no-load fast descending and slow journey and scope, all can according to the process to be adjusted, and the ejection process to complete, can take out process, stretching process three kinds of process, each process and constant pressure, cheng is two kinds of process action choice, constant pressure molding process after the suppression of the automatic ejection time delay and return.



      Supply Ability:      200 Set/Sets per Month
      Port:                       Qingdao/Shanghai

      SPECIFICATIONS

      MODEL TPS-100F1 TPS-I50FI TPS-200FI TPS-250F1 TPS-315F1 TPS-500F1
      CAPACITY(kn) 1000 1500 2000 2500 3150 5000
      PRESSURE(MPa) 31.5 31.5 31.5 31.5 32 32
      TRAVEL(mm) 300 300 300 300 400 500
      TABLE SIZE(mm) 860*560 870*670 970*700 1090*800 1090*800 1440*1000
      630*560 670*645 700*700 800*800 800*800 1000*1000
      DIMENSION(mm) 700*1000*1900 800*1000*2100 800*1000*2400 1300*1000*2400 1300*1000*2700 1600*1350*2950
      1100*700*1150 1100*700*1200 1100*700*1200 1100*700*1300 1100*800*1500 1400*800*1500
      WEITHT(KG) 2200 2600 3100 4200 4600 9600
