CNC VERTICAL LATHE MACHINE FOR SALE
HIGH PRECISION FOR METAL MACHING
HIGH PRECISION FOR METAL MACHING
Tsinfa is a professional supplier & manufacturer of CNC vertical lathe machine in China. You can choice various brands of CNC system, GSK, FANUC, Siemens, Mitsubishi. And the machine can be customized to expand the processing range.
Questions? You can also fill out our contact form. Or Whatsapp: +8615318444939
Processing samples:

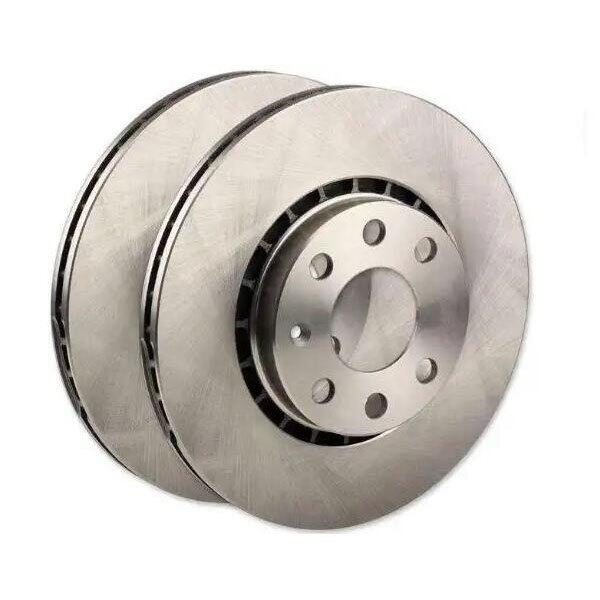

Brake Disc

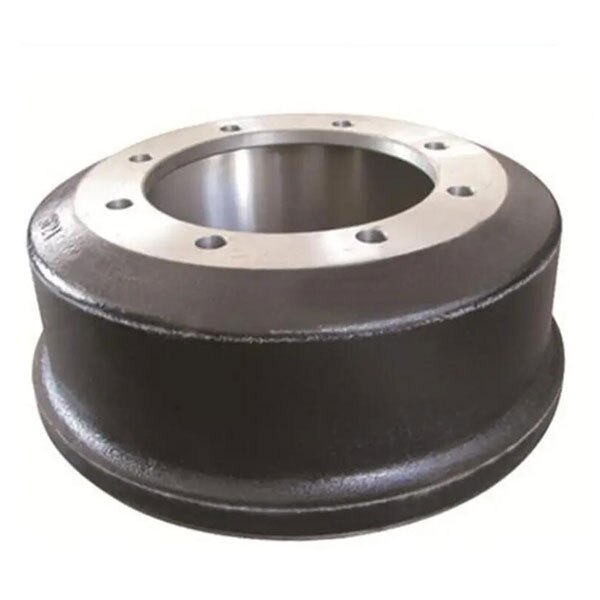

Brake Drum

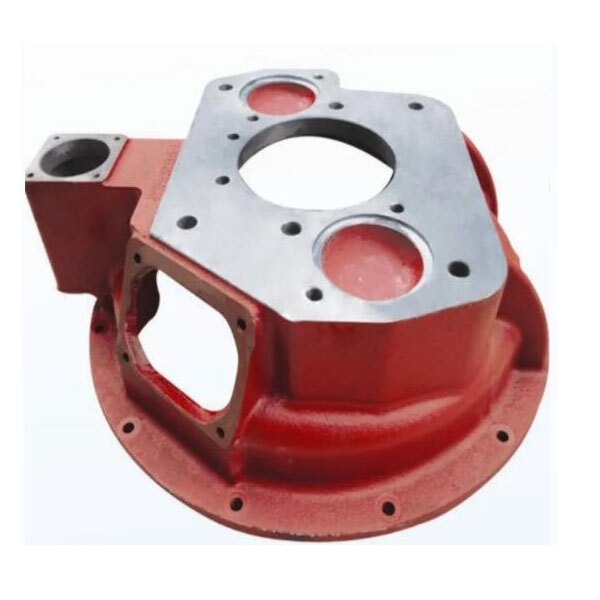

Clutch Housing

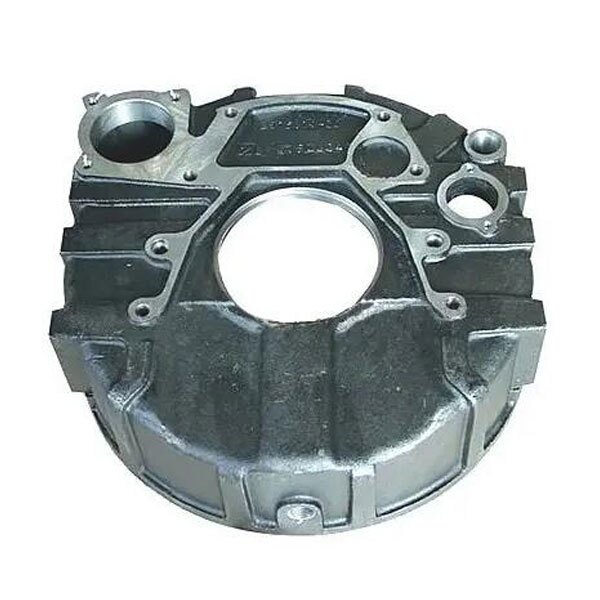

Flywheel Housing

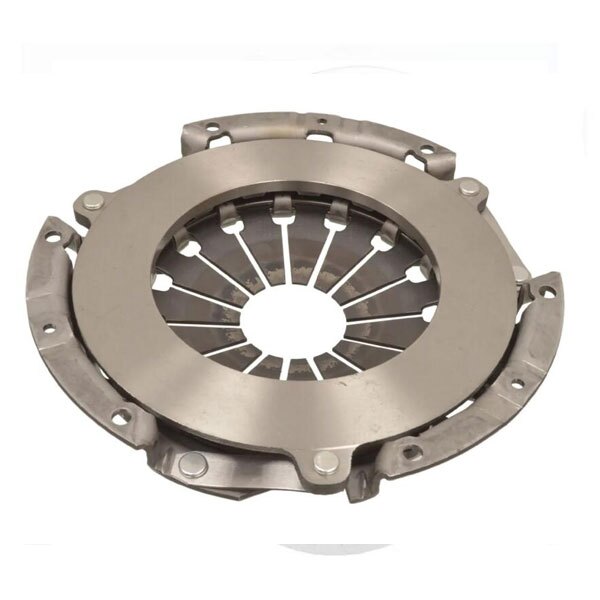

Pressure Plate
Q & A
What is CNC vertical lathe machine?
Some large parts with large radial size and relatively small axial size are difficult to clamp and aligned on the horizontal lathe, and a vertical lathe is usually used machine. The spindle of the vertical lathe is arranged vertically, the diameter of the circular worktable for installing the workpiece is large, and the worktable is arranged horizontally.
It is convenient for the installation and alignment of the workpiece. In addition, the weight of the workpiece and the workbench are evenly distributed on the workbench guide rail and thrust bearing, which is of great significance to reduce wear.
It is beneficial to maintain the working accuracy of the machine tool.
The worktable is installed on the circular guide rail of the base, and the workpiece is driven by the worktable to rotate around the vertical spindle to complete the main movement. The vertical tool rest is installed on the horizontal guide rail of the beam, and the tool rest can be fed horizontally along it and vertically along the guide rail of the tool rest saddle to turn the surface of the excircle, end face, groove, and so on. The tool rest can also be deflected by a certain angle so that the tool rest can be fed obliquely to process the inner circular cone. The side cutter rack is installed on the vertical guide rail of the column, which can make vertical and horizontal feed movements. It mainly uses thousands of turning excircles, end faces, grooves, and chamfers. The vertical tool rest of small and medium-sized vertical lathes are usually equipped with a turret tool rest, which is installed with several cutters and used in turn. The feeding motion is driven by a separate motor, which can make the rapid movement.
The price of CNC vertical lathe machine?
The price is generally between 30000 dollars and hundreds of thousands of dollars, which mainly depends on the parameters of the lathe, such as the diameter of the workbench, the number of turrets, and the brand of the CNC system used. Generally, the FANUC system is the most expensive, followed by Siemens, and the cheaper is the CNC system made in China.
Types of CNC vertical lathe machines?
There are two types of vertical lathes: single column and double column. The processing diameter of a single column is generally less than 1600 mm,
The maximum processing diameter of the double column type has reached more than 25000 mm.
Application of CNC vertical lathe.
Main uses of CNC vertical lathe: rough and finish machining of automobile wheel drum, brake drum, brake disc, flywheel housing, clutch housing, pressure plate, rim, differential housing, disc, and other automobile and ship parts.
