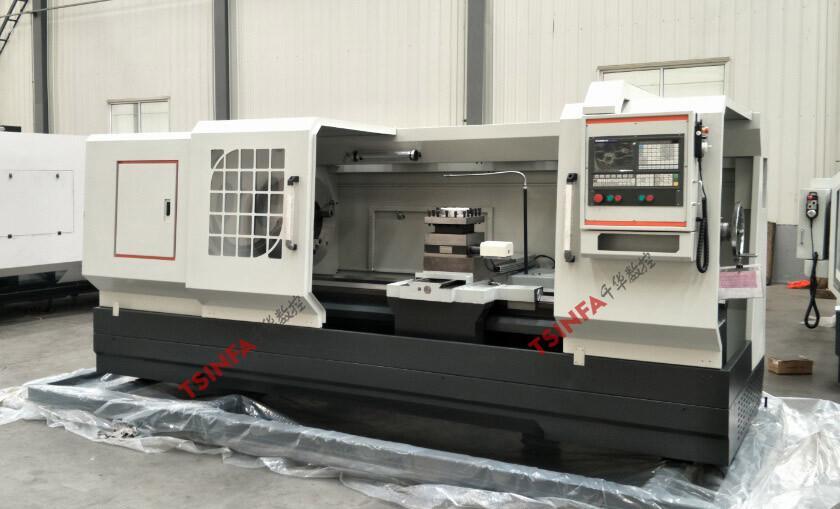

      CNC pipe threading lathe machine PTL32

      On hover to room

      CNC pipe thread lathe is a new type of CNC machine tool specially designed and manufactured for the thread processing requirements of oil pipelines, drill pipes and casings in petroleum, chemical and metallurgical industries. The machine tool adopts double chuck clamping workpiece, three-speed inverter and CNC system automatic control. It can accurately process various internal and external threads and has the function of ordinary CNC lathe.



      Supply Ability:      200 Set/Sets per Month
      Port:                       Qingdao/Shanghai
      REQUEST A QUOTE

      SPECIFICATIONS

      PTL 32 PTL 38 PTL 43 PTL 50
      Capacity Swing over bed mm Φ1000 Φ1000 Φ1000 Φ1200
      Swing over cross slide mm Φ610 Φ610 Φ610 Φ710
      Distance between

      centers

      		 mm 1500 1500 1500 1500
      Pipe threading

      range

      		 mm Φ190-320 Φ190-380 Φ270-430 Φ330-510
      Width of bed way mm 755 755 755 755
      Max. load capacity T 5 5 5 5
      Spindle Spindle bore mm Φ330 Φ390 Φ440 Φ520
      Spindle speed

      steps

      		 – VF. 3 steps VF. 3 steps VF. 3 steps VF. 3 steps
      Spindle speed

      range

      		 rpm 10-240 5-205 5-205 5-205
      Chuck size mm Φ780 Φ850 Φ1000 Φ1000
      Chuck type – 4-jaw electric 4-jaw electric 4-jaw electric 4-jaw electric
      Turret Turret type – NC turret

      4 position

      		 NC turret

      4 position

      		 NC turret

      4 position

      		 NC turret

      4 position
      Tool shank size mm 40×40 40×40 40×40 40×40
      Carriage X axis travel mm 500 500 500 500
      Z axis travel mm 1250 1250 1250 1250
      X axis rapid

      traverse speed

      		 mm/min 4000 4000 4000 4000
      Z axis rapid

      traverse speed

      		 mm/min 4000 4000 4000 4000
      Tailstock Tailstock quill

      diameter

      		 mm Φ140 Φ140 Φ140 Φ140
      Tailstock quill

      taper

      		 – MT#6 MT#6 MT#6 MT#6
      Tailstock quill

      travel

      		 mm 300 300 300 300
      Motors Main spindle

      motor

      		 kW VF. 22 VF. 22 VF. 22 VF. 22
      Coolant pump

      motor

      		 kW 0.125 0.125 0.125 0.125
      Accuracy Positioning

      accuracy

      		 mm 0.02 0.02 0.02 0.02
      Repositioning

      accuracy

      		 mm 0.01 0.01 0.01 0.01
      Dimensions Width x Height mm 2100×2100 2100×2100 2200×2200 2200×2200
      Length mm 5000 5000 5000 5000
      Weight Net weight T 11.5 12 13 15
