2 Post Hydraulic Press: The Essential Tool for Precision Pressing

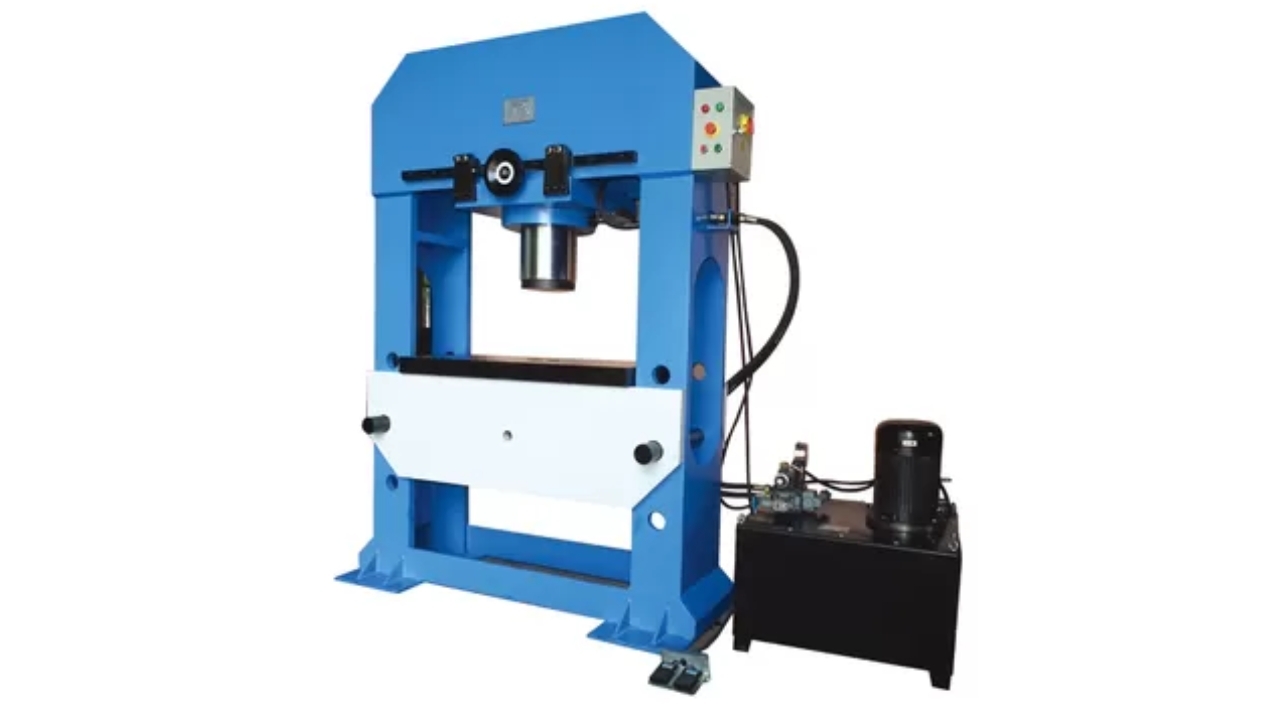

What is a 2 Post Hydraulic Press?

A 2-post hydraulic press is also known as a 2-post or 2-column press. They are mostly applied in production processes, fabrication, and industry operations. Holding various options to press, form bend, mold, or punch material, with hydraulic means, exerting a controlled amount of force. It is suitable for high-force applications in industries.

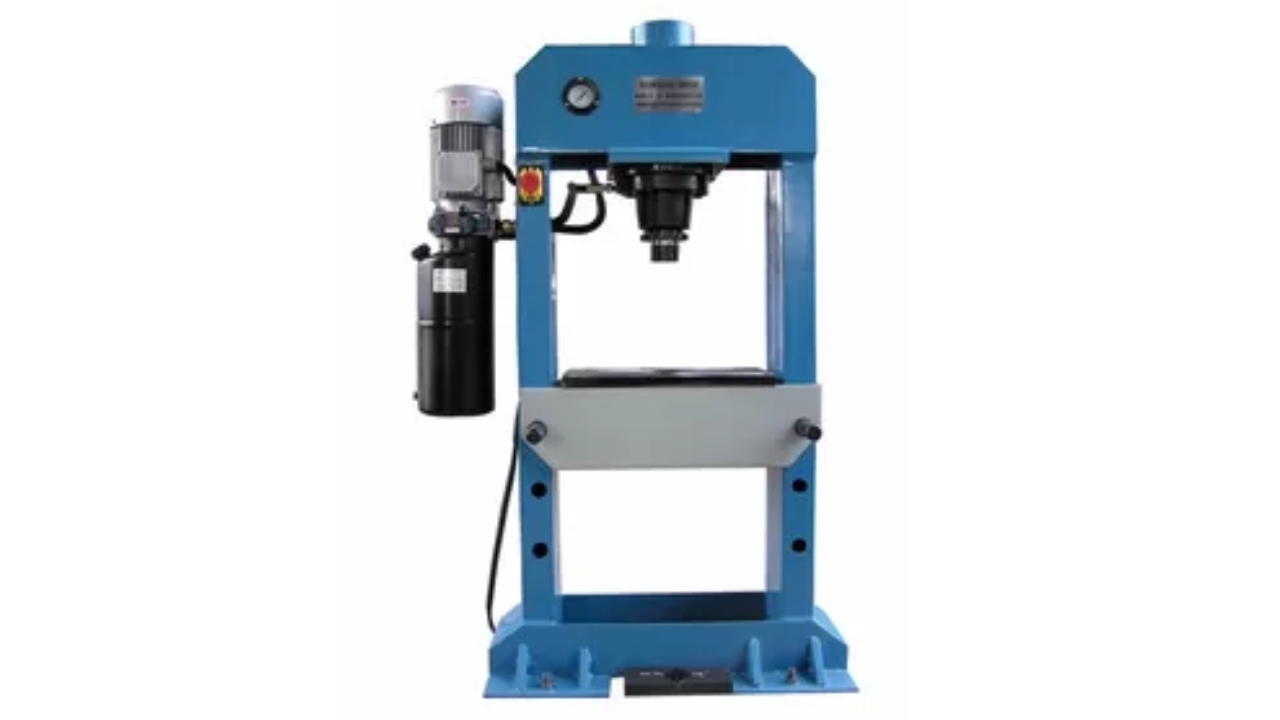

Technical Advantages of 2 Post Hydraulic Presses

2 post presses are demandable because of their several technicalities which enhance precision, performance, and durability in demanding industrial applications. The critical technical advantages are given below:

• Compact and Cost-Effective Design

2 post presses are many times more compact than 4 post-hydraulic presses. This type is useful in small-scale industries; it permits efficient use of floor space without interference with power and functionality.

• Rigidity and Precision

It creates a rigid structure, which resists high pressure and will not bend under a considerable amount of weight. This rigidity is significant and provides consistent and accurate performance in a heavy workload. The 2 post-hydraulic press guides the movement of the ram to keep the vertical path consistently in place along with the pressure that is needed for precision.

• Enhanced Control Systems

The new product that emerged as the 2-post hydraulic press comes with new control systems that increase its functionality, productivity as well as usability. The features are aimed at offering operators high control and versatility in using wide applications.

• Adaptability with Servo Integration

This hydraulic press has the feature of servo technology; servo system hydraulic press refers to a hydraulic press that is best suited for accurate control of movement, speed, and tension. It is furthermore employed for high-accuracy work.

• Versatile Application Range

This hydraulic press is said to be versatile which makes it a tool of choice for many different industries. The high precision control of motion, flexibility of design, and large force output render it suitable for a wide range of operations.

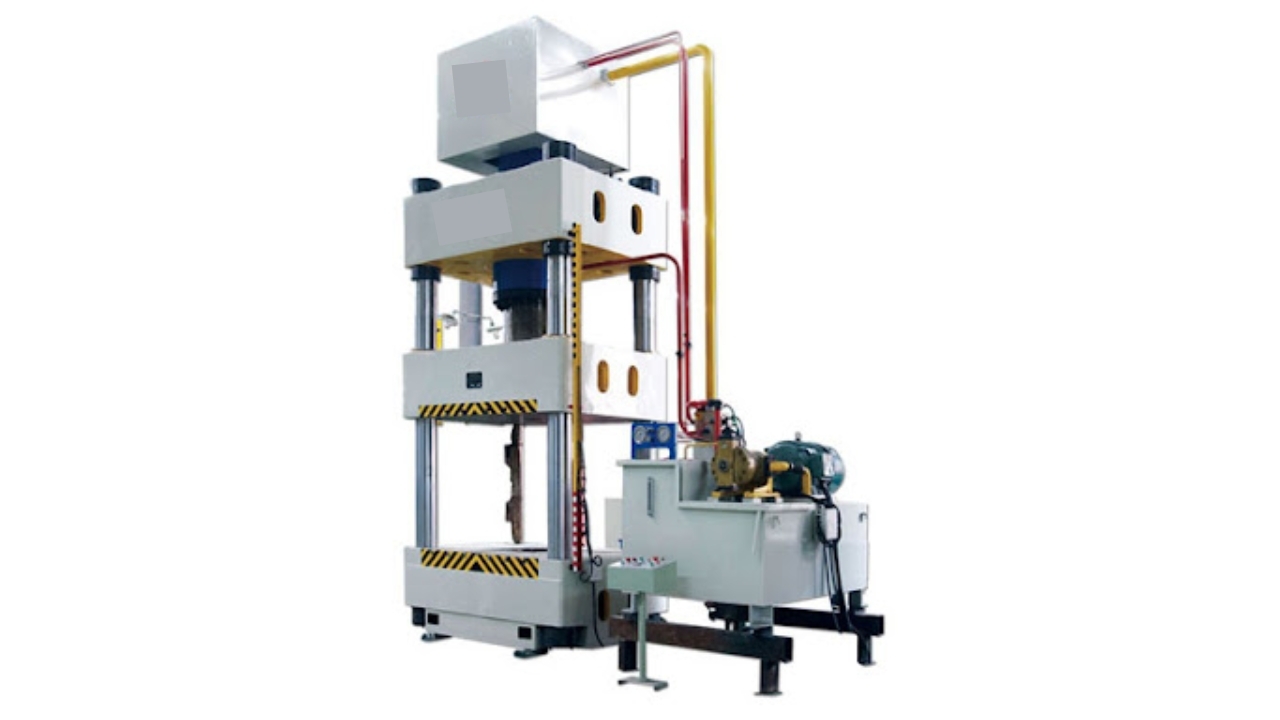

Critical Components of 2 Posts Hydraulic Press

A 2-post hydraulic press has specific components that make it capable of providing control, power, and stability for presses. These key components are as follows:

• Hydraulic Cylinder

The key component of the press is a hydraulic cylinder which creates force that lets the ram move within the press.

• Frame and Posts

The frame rests on two vertical columns positioned vertically that control the press ram motion and provide structure and correct positioning.

• Hydraulic Power Unit (HPU)

A hydraulic power unit incorporates a pump, motor as well, and the importantly known as a reservoir to power a hydraulic system. The motor supplies power to the pump and the pump builds up the fluid pressure whilst the functioning of the reservoir is to contain hydraulic oil.

• Control System

The control system also enables the operator to set one or many parameters such as pressure, speed, and position of the ram. It helps the press to do its work involving tasks that require precision and safety.

• Bolster and Bed

The bolster and Bed play an important role in holding the workpiece as well as the tooling arrangement. Furthermore, it can also take on the force of presses during operations.

• Valves and Filters

Hydraulic valves and filters maintain the pressure level and direction of the hydraulic fluid. That also enhances the system in terms of cleanliness and reduces chaotic moments that may be detrimental to performance.

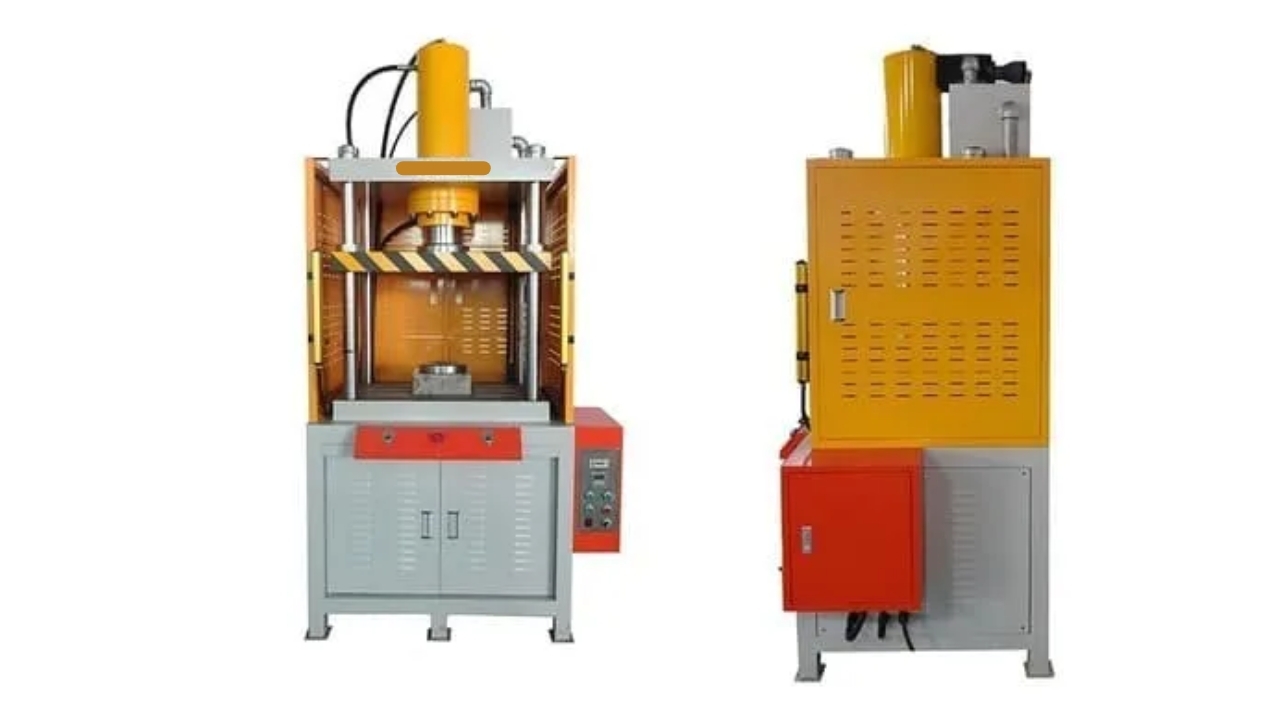

Applications of 2 Post Hydraulic Press in Different Industries

2 post press can be required in various industries because it offers great accuracy, flexibility, and high force. Because of its properties, it has numerous applications, which are discussed below:

• Metal Forming and Shaping

2- Post-hydraulic press machines have important applications in metal forming and shaping.  In the metalworking industry, these presses are employed in many forming and shaping operations.  That is why this 2-post press is an effective and precise way of manufacturing complicated metal parts, and the method is widely used all over the world in the metal forming and shaping industry.

• Punching and Stamping

The presses also find use in punching and stamping processes. Punching involves cutting out apertures/holes in metal or other materials sheets, 2 2-post punch makes certain that the punch goes straight to penetrate the material with great accuracy with no side-to-side movement.

While stamping the use of a press-guided ram enables accurate stamping with the right pressure all around. This makes it suitable for punching and stamping procedures. These properties make it suitable for punching and stamping procedures.

• Assembly Operations

As demand-able presses, they are indispensable to assembly operations in many industries where relatively heavy metalwork is required. These presses produce consistent force in the manufacture of parts and such forces are mandatory in assembly operations.

• Plastic and Rubber Molding

2 post hydraulic presses are widely used in plastic and rubber molding due to the mechanism as explained above of applying an affirmative constant controlled force, sustaining high pressure and its accuracy. Both these 2 post presses are designed to offer flexibility in producing rubber and plastic products fitting in many sectors, including automobile, electronics, aerospace, and medical equipment.

• Coining and Embossing

These presses also find uses coining and embossing due to the varying characteristics of these presses. Coining is a high-pressure stamping operation that can provide finer surface details in metallic surfaces by imprinting finer details and the 2 post presses provide better control while working, and precise pressure is exerted.

• Straightening and Correction

2 post hydraulic press also had uses in straightening and correction-related tasks because of its strong and stable construction, high degrees of accuracy, and ability to apply forces in large quantities. These presses are necessary for industries where precise positioning and accuracy in terms of dimensions are necessary.

• Compression Molding and Deep Drawing

2 post hydraulic presses also find application in the compression molding and deep drawing processes. These processes are normally applied when forming the material in a complex way. The 2-post hydraulic press has high pressure to give the material mold shape and finishing forms the required form.

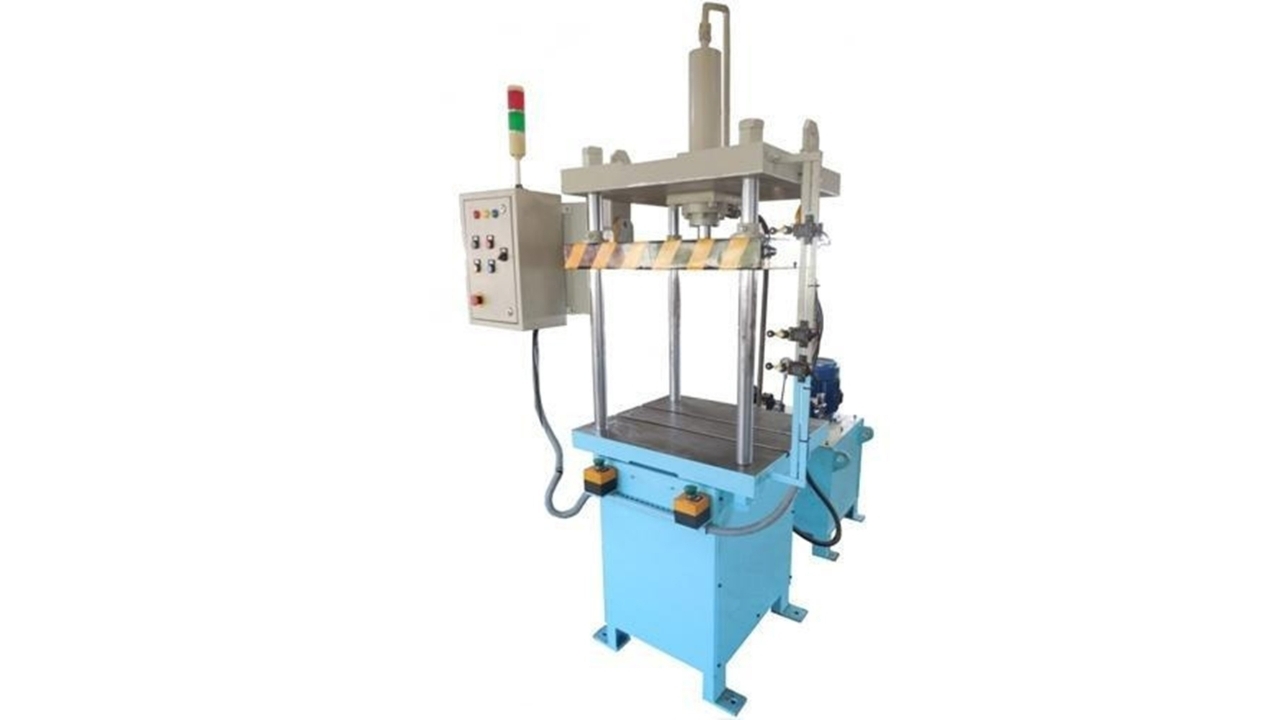

How to Choose the Right 2-Post Hydraulic Press?

The main focus is on the selection of the right 2 post-hydraulic processes in terms of customer application. In choosing the right hydraulic press, several factors should be checked, which are discussed below:

1. Define the Application Requirements

It is the primary and the most important stage of choosing the appropriate hydraulic press. The requirements define the 2 post-press features and characteristics. Maximum pressure required, types of operations necessary, the speed and the degree of scale of output necessary, necessary accuracies and tolerances, etc., should be known for choosing an accurate 2-post hydraulic press.

2. Determine Required Tonnage

The precision of required tonnage is important in selecting a 2-post hydraulic press and understanding your minimum required tonnage ensures that you do not overload your equipment. The amount of tonnage necessary differs by the thickness, the type of material, the outcome needed, and the type of operation it is to be used for.

3. Consider Bed Size and Stroke Length

Some key deciding factors relate to the bed size and stroke length concerning the 2-post hydraulic press. It also defined the maximum work-piece size the press can work on, and the stroke length the far the press can work on the material.

4. Select Control Systems and Automation Options

These control systems and automation options enhance the solution capability, accuracy, productivity, and security levels. It is important; therefore, when choosing the right control systems and automation it will be important to take into account the operation parameters particularly the accuracy that is required, safety features, and any other features that may help in enhancing productivity.

5. Evaluate Structural Features

It is also an important part to ensure that it can withstand high-force applications, and deliver reliable performance and accuracy. Components like frame, bed, post, and ram are very important in its functioning.

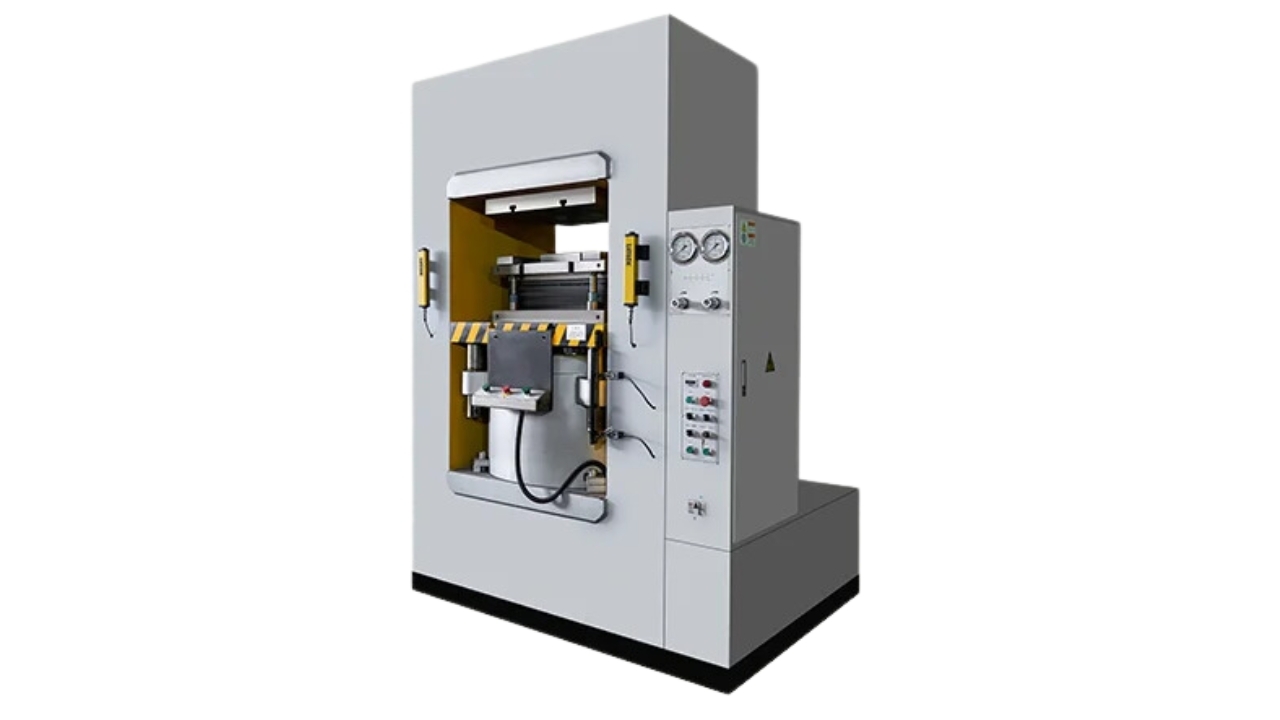

TSINFA 2 Post Hydraulic Press

We manufacture 2 post hydraulic presses and several other premium quality sophisticated machines. In addition to employing quality materials for production, we also receive quality customer service at an affordable price quality. Promoting the customers’ success and value is also a key at TSINFA. We remain fully committed to how best to serve the interests of customers more so in the innovation of the product’s design and processing technology.

FAQs

How does a 2-post hydraulic press compare to a 4-post press?

4-post and 2-post hydraulic presses are two forms of powerful machines that have been developed for diverse uses. However, they elicit some differences in terms of cost, stability, structure, and some specific applications. More frequently, there are 2 post presses appropriate for small and relatively simple applications while 4-post presses are well-suited for applications involving larger parts.

Is a 2-post hydraulic press suitable for large workpieces?

It can be suitable for medium or large applications.  2 post hydraulic press has limitations compared to 4 post hydraulic press, especially for extra-large or hefty work pieces. 4-post hydraulic press in general preferred in such uses.

Is maintenance required for 2 post-hydraulic presses?

Yes, as with any type of machine, 2 post hydraulic presses need to be maintained to function properly be safe, and have a long working time. Hydraulic presses apply high force and as such are prone to wearing beyond which the machines may be a cause of accidents or mishaps hence they need maintenance.
